AGM RMSAL

Archive

PART #503RMSALPRGDE1

2 reviews | Write a review

prod-img

Description And features

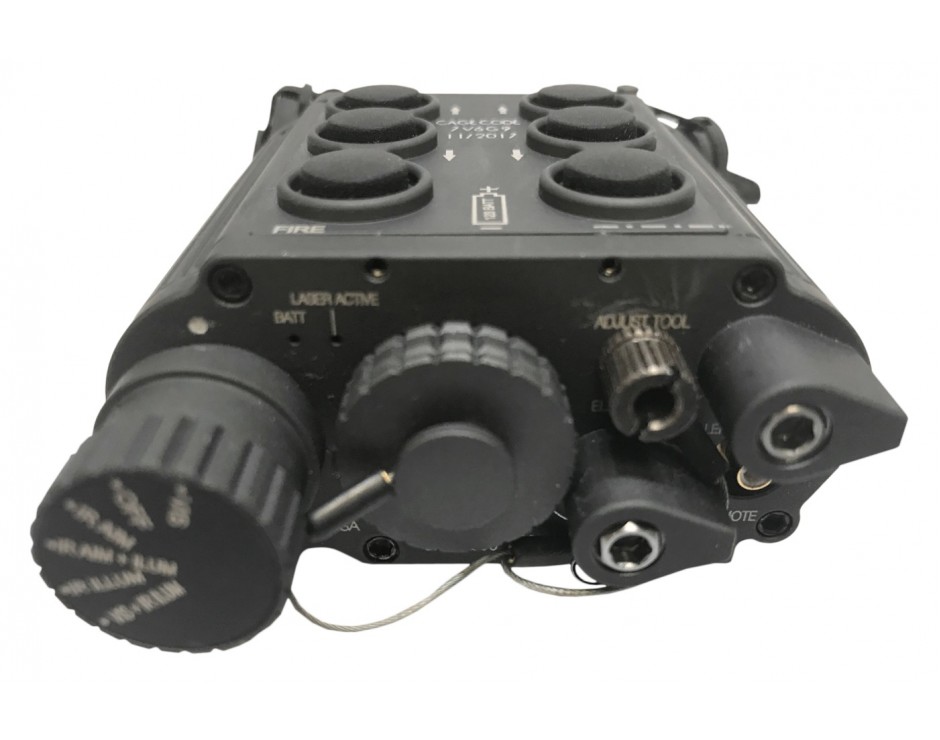

The Mil-SpecRMSALSquad Aiming Laser is a CLASS IIIb laser consists of a green or redvisible aiming laser, a nearinfrared (near- IR) aiming laser, and an adjustable near-IR Illuminator. The function of the RMSAL is to provide an operator with highly collimated aiming lasers forprecision aiming and targeting visible in low light conditions and in conjunction with night vision devices for night time applications. The focusable near-IR Illuminator floods the area ofinterest with near-infrared light only visible when used with Night Vision Devices.The output power of the RMSAL can be adjusted from approximately 50μW to 25mW electronically across 256 intervals. In addition, the aiming lasers can be operated via user selectable switch in either a constant wave or 4Hz pulsed mode.



Warning: California's Proposition 65

  • Rapid active target acquisition
  • True night vision compatible mode
  • Adjustable output power
  • Green or red visible laser options
  • User selectable constant wave or pulsed modes of aiming lasers
  • Two tactical remote switches (including SAFETY remote switch)
  • Co-boresighted aiming lasers
  • Unique ballistic differential adjustment ports
  • Limited 3-Year Warranty
Package Includes
  • Aiming/ Illumination Module
  • Remote Switch Black
  • Remote Switch Blue
  • Battery
  • Operation and Maintenance Manual
  • Soft Carrying Case
Downloads
Data Sheet

Sold out

Specifications

Divergence
IR LASER - 0.5 mRad VISIBLE LASER - 0.5 mRad IR ILLUMINATOR - 1-108 mRad
Battery type
One (1) CR123 3.0VDC lithium battery
Class
IR LASER - IIIb (near IR) VISIBLE LASER - IIIr IR ILLUMINATOR - IIIb (near-IR)
Output power
IR LASER - 50 μW (Low) 25 mW (High) VISIBLE LASER - <5.0 mW IR ILLUMINATOR - 500 μW (Low) 25 mW (High)
Operating distance
IR LASER - > 200 m (Low)>2,000 m (High) VISIBLE LASER - > 25 m in direct sunlight IR ILLUMINATOR - > 100 m (Low) >2,000 m (High)
Wavelength
IR LASER - 820 nm–860 nm VISIBLE LASER - Red 605 nm–665 nm, Green 500 nm–530 nm IR ILLUMINATOR - 820 nm - 860 nm
Battery life
>10 hours in near-IR Aim Mode
Operating Temperature
-51°C to 57°C
Storage Temperature
-57°C to 85°C
Waterproof
Upto 20m for 1 hour
Weight
0.2 kg ( 0.44 lbs)
Color (housing)
Black or Tan
Overall dimensions
106 x 81 x 48 mm (4.2 x 3.2 x 1.9 in)
