PART #3142451304FM21

1 reviews | Write a review

Description And features

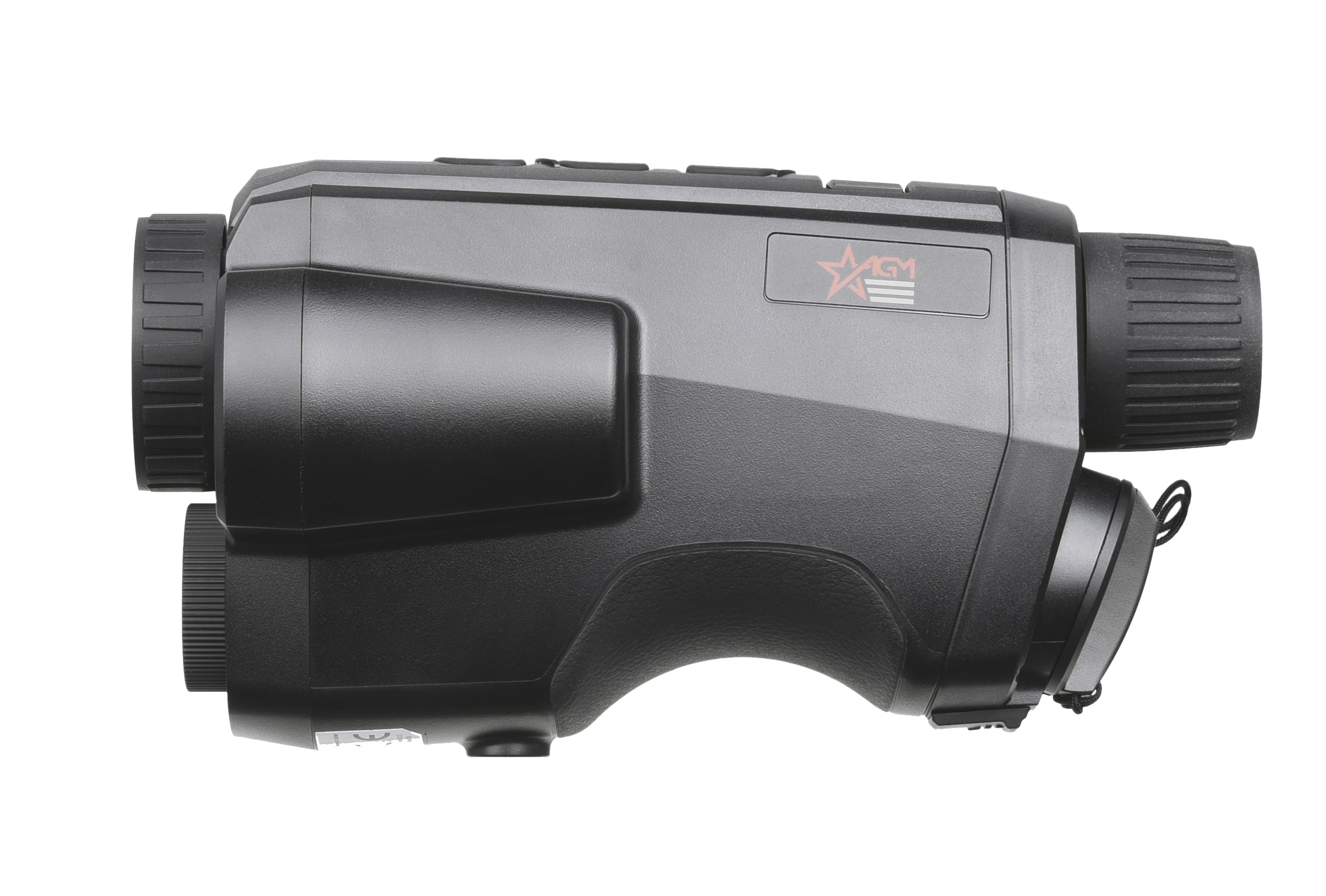

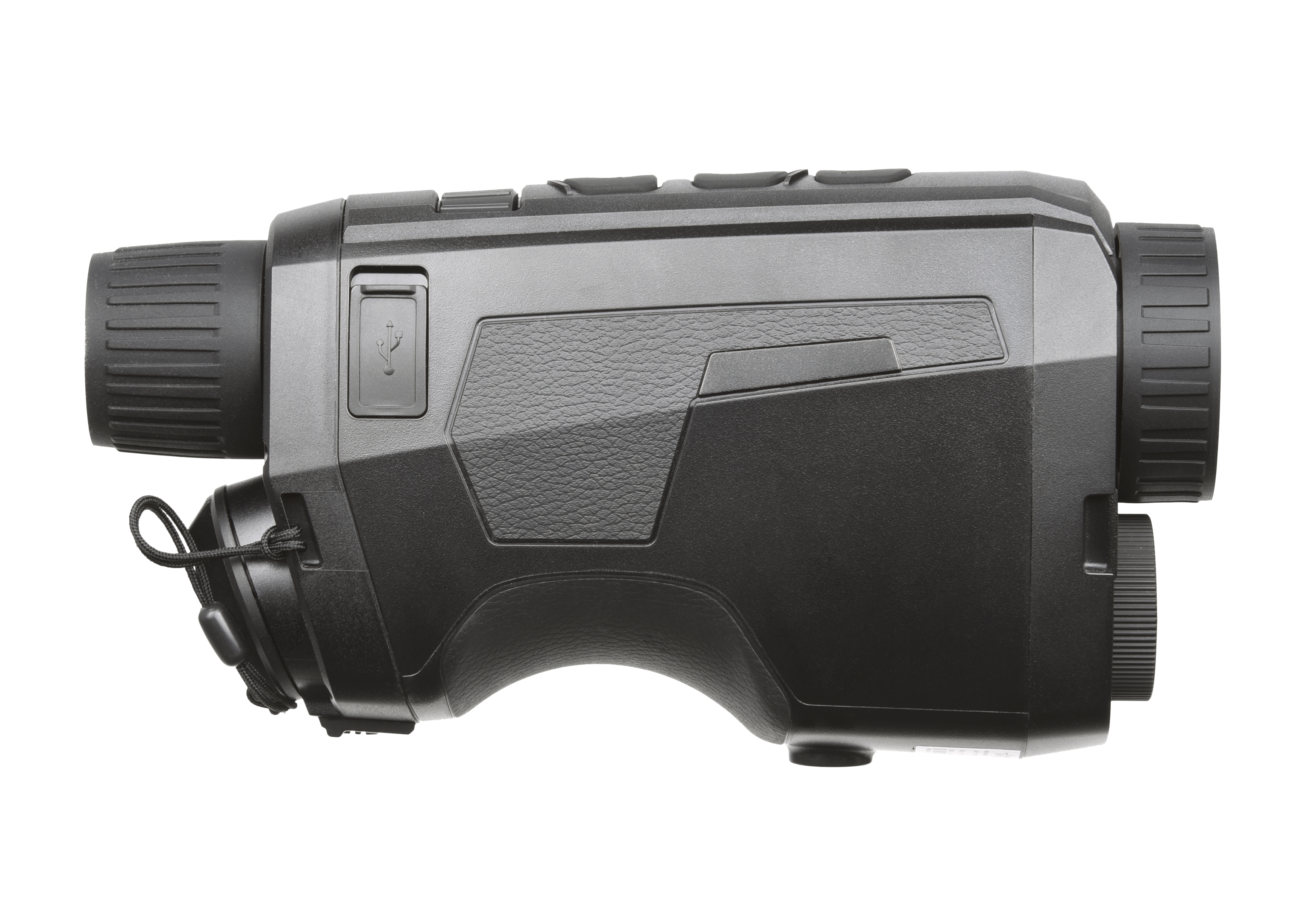

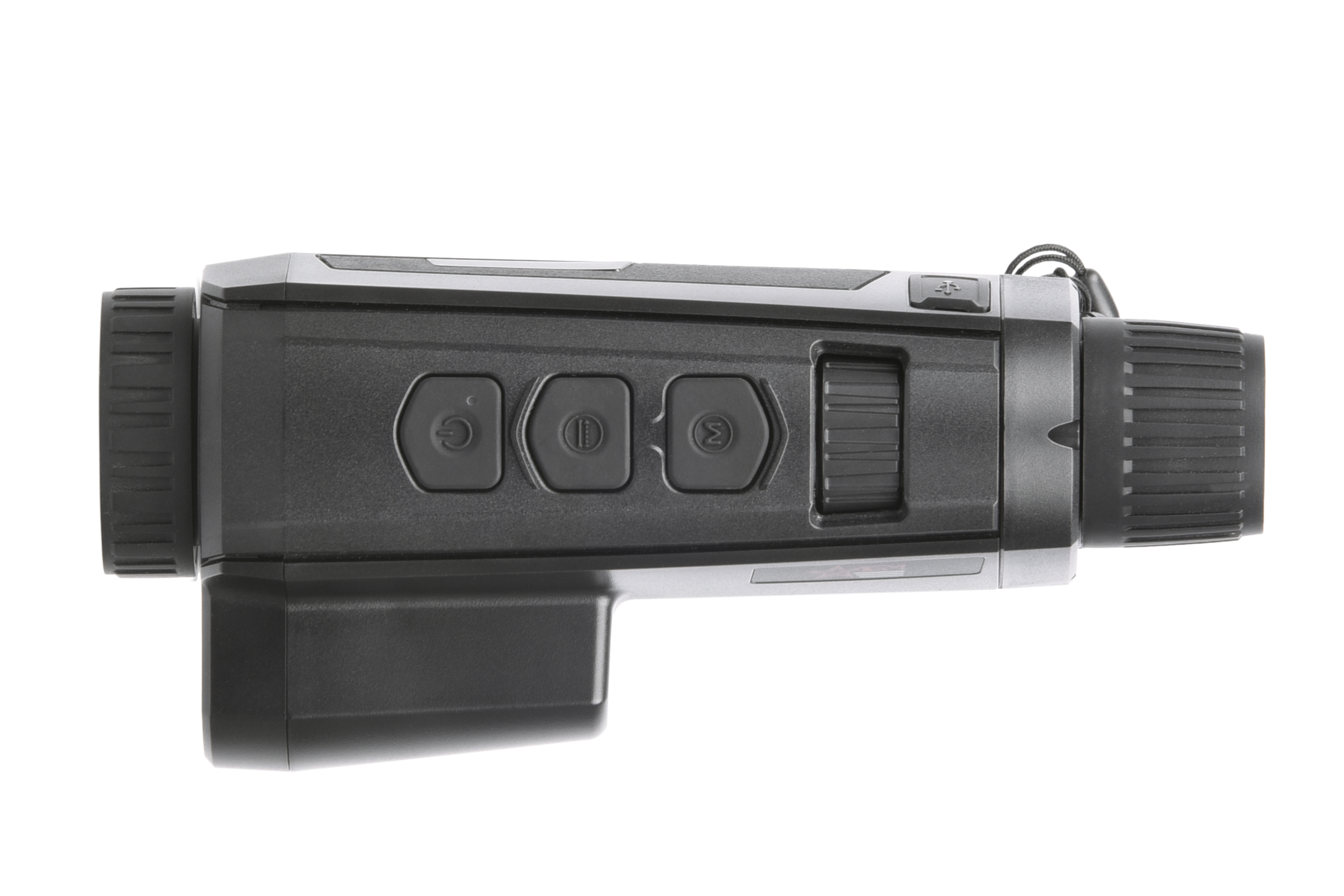

The AGM Fuzion LRF TM25-384 Thermal & Digital Day/Night Vision monocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron 384x288 thermal detector. This sensor from AGM will ensure human-sized heat signatures detectable at up to 0.8 miles (1250m). Unlike other thermal monoculars on the market, the Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility.

The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 25mm Germanium lens with a 1.0 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 2.5X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder,  up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and of course AGM’s 5 Year Transferable Warranty!

Warning: California's Proposition 65

  • Bi-spectrum image fusion and object highlight
  • Detail enhancement and target recognition
  • Selection of thermal view channel, visible light channel, or both them combined
  • 12 μm, 35 mK NETD high sensitivity thermal detector
  • Fast 50Hz imaging
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 1920×1080 Optical resolution
  • Eye-safe laser rangefinder
  • 1024×768 resolution, 0.39-inch OLED display
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Wi-Fi hotspot
  • Standby mode
  • Up to 5 hours continuous running
  • Waterproof
  • 5-Year Warranty

Detector type: 12 μm VOx Uncooled Focal Plane Arrays

Refresh rate: 50 Hz

Resolution: 384 × 288

FOV: 10.5° × 7.9°

Package Includes
  • Rubber eyepiece
  • 18650 Rechargeable Battery 2x
  • USB Cable
  • Battery Charger
  • Power Adapter
  • Lens Cloth
  • User Manual
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.



Quick Order

Add to cart


Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Working Temperature
-20°C to 55°C (-4°F to 131°F)
Dimension (LxWxH)
158 × 61 × 57 mm (3.2 × 2.4 × 2.2 in)
Distance Measurement
Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)
Scene Mode
Jungle, Recognition
Observation Distance
Detector type
12 μm VOx Uncooled Focal Plane Arrays
Response Waveband
8 μm to 14 μm
Optical Image Sensor
1/2” Progressive Scan CMOS, 1920×1080@25fps
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Standby Mode
Refresh rate
50 Hz
384 × 288
Laser Wavelength
905 nm
Optical magnification
2.5x – 20x
Lens (focal length)
Thermal Lens Focal Length - 25mm Optical Module Lens Focal Length - 22mm
5 VDC/2 A, USB Type-C interface Supports external power supply
Field of view (H × X)
10.5° × 7.9°
Digital zoom
1x, 2x, 4x, 8x
1024x768, 0.39 inch, OLED, 50Hz
Built-in 16 GB EMMC
Record Video
On-board video recording
Capture Snapshot
Battery Type
One 18650 rechargeable battery (removable)
CVBS Output
Yes (via USB)
Battery Operating Time
Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display
510 g (1.12 Ib)
Protection Level
IP67 (Waterproof)

Firmware update


Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

  1. Connect the thermal device to your PC with USB cable.
  2. Turn on the thermal device.
  3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
  4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
  5. Turn off the device.
  6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
  7. Turn off the device and disconnect it from your PC.

If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

Please check the latest firmware. Click the FW Version to download the firmware update package.


    Firmware Versions:

    • V5.5.52_221119

      - Support 1-10 levels of brightness and contrast adjustment.

      - Support m/yard display for distance measurement in Fuzion models (Fuzion LRF made it in V5.5.38_220303).

      - Support 5 options for Continuous LRF: 15s, 30s, 1min, 2min, 5min.

    • V5.5.41_220920

      - Support 10 levels of adjustment of Brightness/Contrast.

      - Add Ukrainian in the Language menu

    • V5.5.38_220303

      - Change the button function ([Measure button] - Press: Measure the distance with laser. Hold: Capture image. Press simultaneously: [Menu button + LRF button] = video)

      - Add yard display.

      - Shorten the date display.

      - Support continuous Laser Ranging.

      - Support the menu of Palettes selection.

    • 5.5.22_211216

      - Improve the sensitivity of buttons.
      - FPGA Firmware - V1.0.7_211116

    • 5.5.22_211028

      - The image quality of "Image Fusion" at night has been improved.

    • 5.5.22_210914

      - Basic version.
