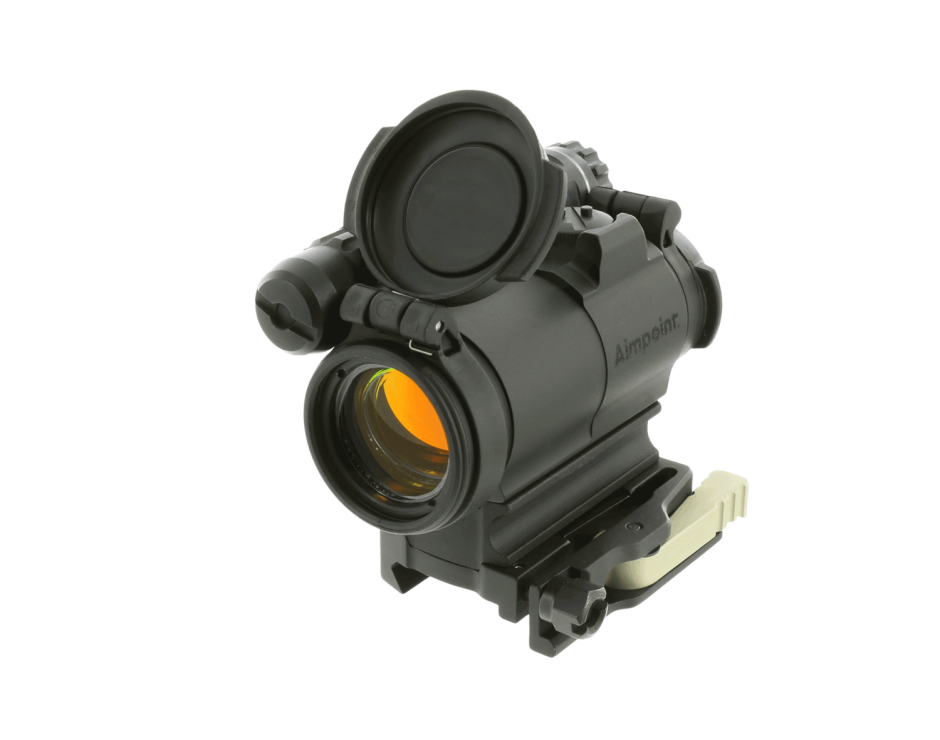

AIMPOINT® COMPM5

PART #200386

0 reviews | Write a review


Description And features


The CompM5™ is a high performance red dot sight developed to withstand extremely tough handling and environmental situations without adding much weight to the user’s equipment. Aimpoint red dot sights are designed for the “both eyes open” method which greatly enhances situational awareness and target acquisition. Thanks to the optical design the red dot follows the movement of the user’s eye while remaining fixed on target, eliminating any need for centering.

The CompM5 allows for unlimited eye relief and is compatible with Aimpoint 3XMag-1 and 6XMag-1 magnifiers as well as all generations of Night Vision Devices (NVD).

The battery life for the CompM5 is over 5 years of continuous use while at the pos. 7, more than 1 year of use at pos. 8, and more than 10 years at NVD settings (pos. 1 to 4).

COMPLETE AND READY TO MOUNT

The standard configuration of the CompM5 contains the sight, a LRP mount and a 39 mm spacer. The sight is also equipped with flip-up lens covers, the front lens cover is black and the rear transparent.



CUSTOMIZE YOUR SIGHT

CompM5 sights can be customized according to your preferences and needs. Both the included LRP mount and spacer can be changed to meet the demands of your specific mission and equipment.


Warning: California's Proposition 65

  • Mountable on MIL-STD 1913 Rail system/Picatinny rail
  • Advanced optical lenses with a protective front window
  • High, AAA battery compartment
  • Compatible with all generations of NVD
  • 2 MOA dot for close combat and long distance engagement
  • Matches perfectly with Aimpoint® 3XMag-1 and 6XMag-1 magnifiers
  • Excellent light transmission
  • Extremely robust housing design, same ruggedness as the CompM4 sights with less weight
  • Operable to a depth of 45 m (150 ft)
  • Mount base is keyed into to the body of the sight to absorb recoil
  • Weight 238 g (8.4 oz) standard configuration, sight only 148 g (5.2 oz)
  • ACET technology allows 50 000 hours (over 5 years) of constant operation with one battery
  • 4 NVD settings and 6 daylight settings
  • Mechanical switch for speed and reliability
Downloads

$991.00

Compare

Quick Order

Add to cart


Specifications


Battery Life
Day time use: 5 years (50 000h) of continuous use at pos. 7, more than 1 year at pos. 8 and more than 10 years at NVD-setting (pos. 1-4)
Dimensions
83 mm (3.3 in) x 40 mm (1.6 in) x 41 mm (1.6 in)
Adjustment range
Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 10 mm at 100 meters = 8 mm at 80 meters = .36 in at 100 yds
Shockproof
Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. Functional during exposure (room temperature) Vibration: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Dot intensity
Visible against a background luminance of 0,1 to 55 000 lx
Chemical resistance
Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.
Magnification
1x
Eye Relief
Unlimited
Battery Type
One AAA size 1.5 V Alkaline LR03 or Lithium FR03
Operating Temperature Range
-45 °C to +71 °C (-49 °F to +160 °F)
Storage Temperature Range
-51°C to +71°C (-60°F to +160°F)
Environment Rating
Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic Submersible: To a depth of 45 m (150 ft.)
Weight
148 g (5.2 oz)
Reticle Type
Aiming dot (size: 2 MOA)
