AGM ASP TM35-640

AGM ASP TM35-640

PART #3093551006AS31

1 reviews | Write a review

Description And features

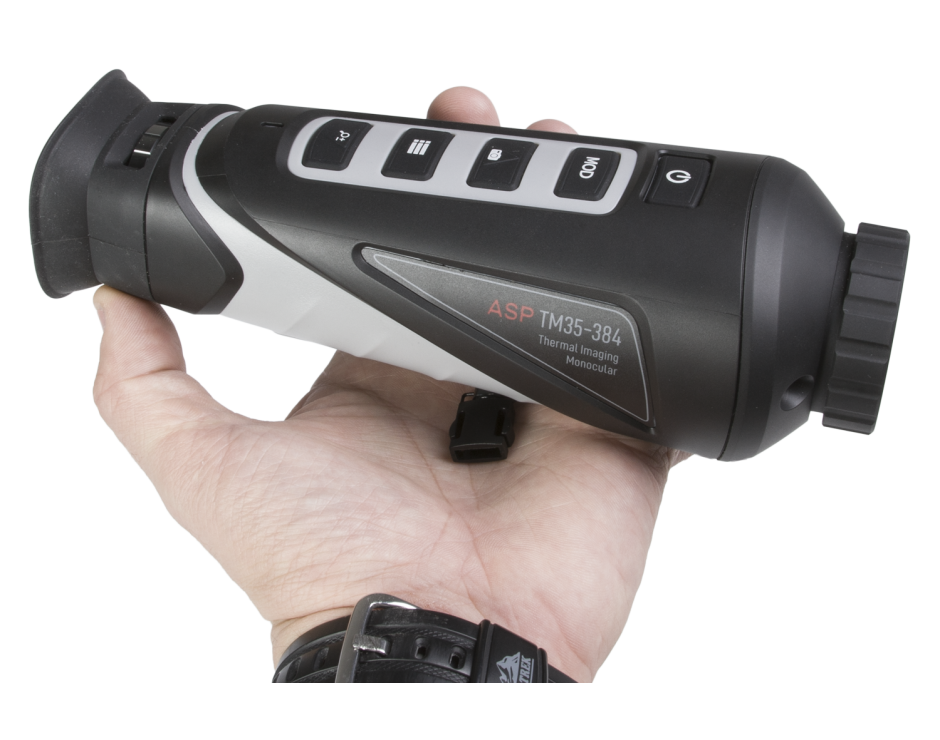

The Asp handheld observational thermal monocular is equipped with a 640×512 infrared detector and a 1024×768 OLED display. It supports functions of observation, hot spot tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

AGM ASP TM35-640 Handheld Thermal Monocular Review

Warning: California's Proposition 65

FUNCTIONS:

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, 4× and 8x digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

Warning: California's Proposition 65

640×512 resolution, high sensitivity detector
Adaptive AGC, DDE, 3D DNR
1024×768 resolution 0.39-inch OLED display
Built-in memory supports video recording/snapshot capturing
Wi-Fi hotspot
Built-in rechargeable Li-Ion battery
Up to five hours continuous running (with Wi-Fi hotspot function off)
5-Year warranty

Characteristics

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Refresh rate: Sensor / OLED 50 Hz

Resolution: 640 × 512

FOV: 17.7° × 14.2°

Package Includes

USB Cable
Neck Lanyard
Protective Bag
Operators Manual
Lens Tissuel
EU Plug

Downloads

Data Sheet

User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Sold out

Specifications

Interface

USB Type C

Digital Magnification

1.5x - 12x

Detector type

Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband

8μm to 14μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Refresh rate

Sensor / OLED 50 Hz

Resolution

640 × 512

Detector Pitch

17μm

Recognition

(Vehicles: 1.4×4.0m) - 862m/yd (Humans: 1.8×0.5m) - 281m/yd

Detection Range (6' object)

(Vehicles: 1.4×4.0m) - 3452m/yd (Humans: 1.8×0.5m) - 1125m/yd

Identification Range

(Vehicles: 1.4×4.0m) - 431m/yd (Humans: 1.8×0.5m) - 141m/yd

NETD

< 35mk (@25°C, F#=1.0)

Lens (focal length)

35mm

Field of view (H × X)

17.7° × 14.2°

Digital zoom

1x, 2x, 4x and 8x

Monitor

0.39-inch, OLED, 1024 × 768

Hot Track

Yes

Imaging palettes

Black hot, White hot, Red hot, Fusion

Storage

Built-in memory module (16GB)

Record Video

Support on-board video recording

Capture Snapshot

Yes

Battery Type

Built-in rechargeable Lithium battery

Wi-Fi

Yes, Hotspot

CVBS Output

Yes (via USB)

Battery Operating Time

Up to 5 hours continuous running

Battery Capacity Display

Yes

Power supply

5V DC/2A, 2W

Weight

480 g (16.9 oz)

Working Temperature/ Humidity

-30°C to 55°C (-22°F to 131°F)

Overall Dimensions

202 × 74 × 66 mm (7.9 × 2.9 × 2.6 in)

Protection Level

IP67

Magnification

1.5x

Firmware update

FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

Connect the thermal device to your PC with USB cable.
Turn on the thermal device.
Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
Turn off the device.
Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.

ASP TM35-640 THERMAL MONOCULAR FIRMWARE

Firmware Versions:
- V5.5.53_230113
  Fixed the following defect:
  -Device screen may goes solid and button functionality can't work by accident.
- V5.5.41_220713
  Release Notes:
  - Digital zoom display (1.5X - 3X - 6X - 12X)
- V5.5.38_220322
  - Repacked firmware. All the features keep the same.
  - FPGA FW integrated into Main FW
- V5.5.37_220112
  - Support "Auto Power Off."
  - Support "Time Sync."
  - Support "Burn-Prevention."
- V5.4.24_210927
  - Repacked firmware. All the features keep the same.
- V5.4.24_200808
  - Basic version.
