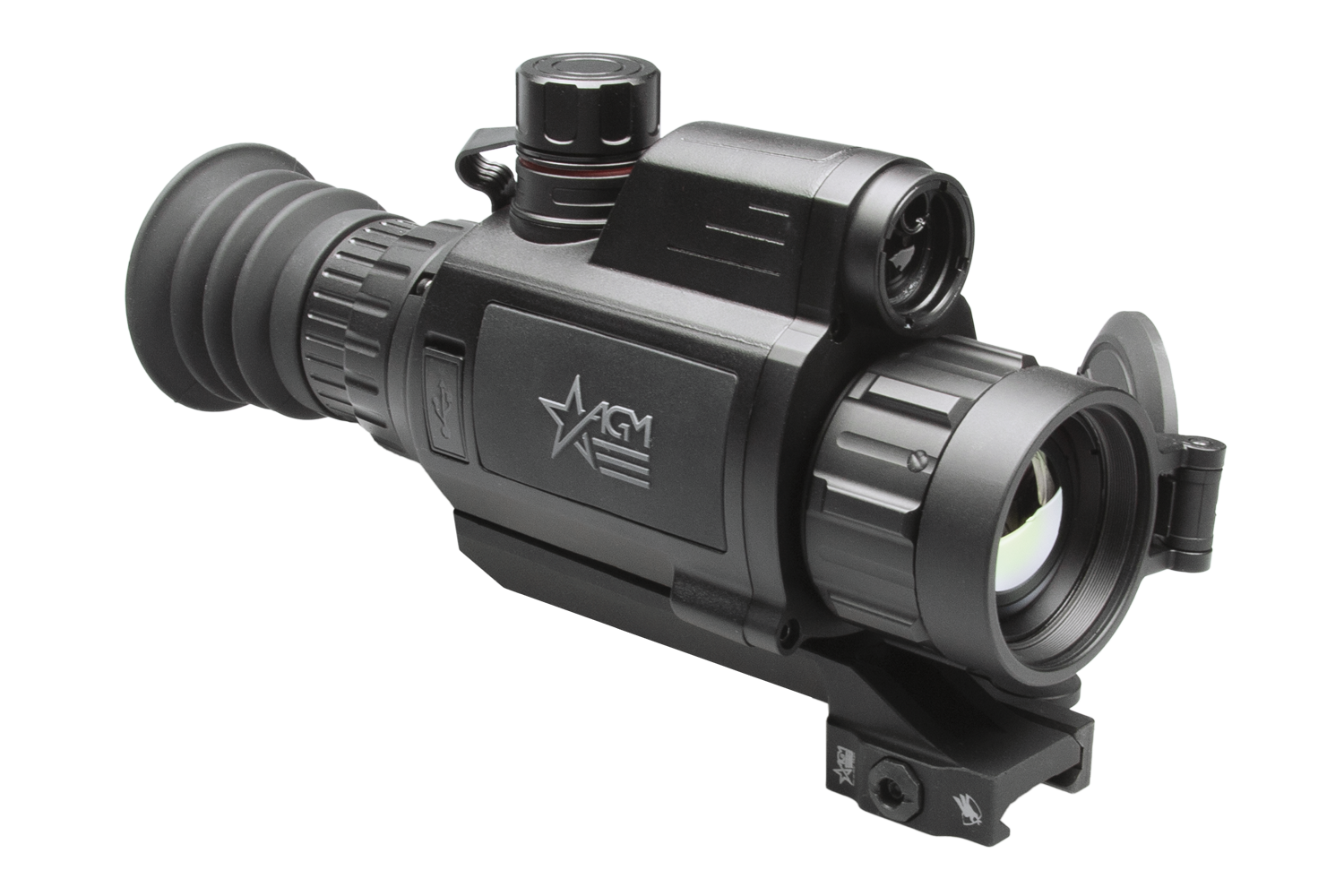

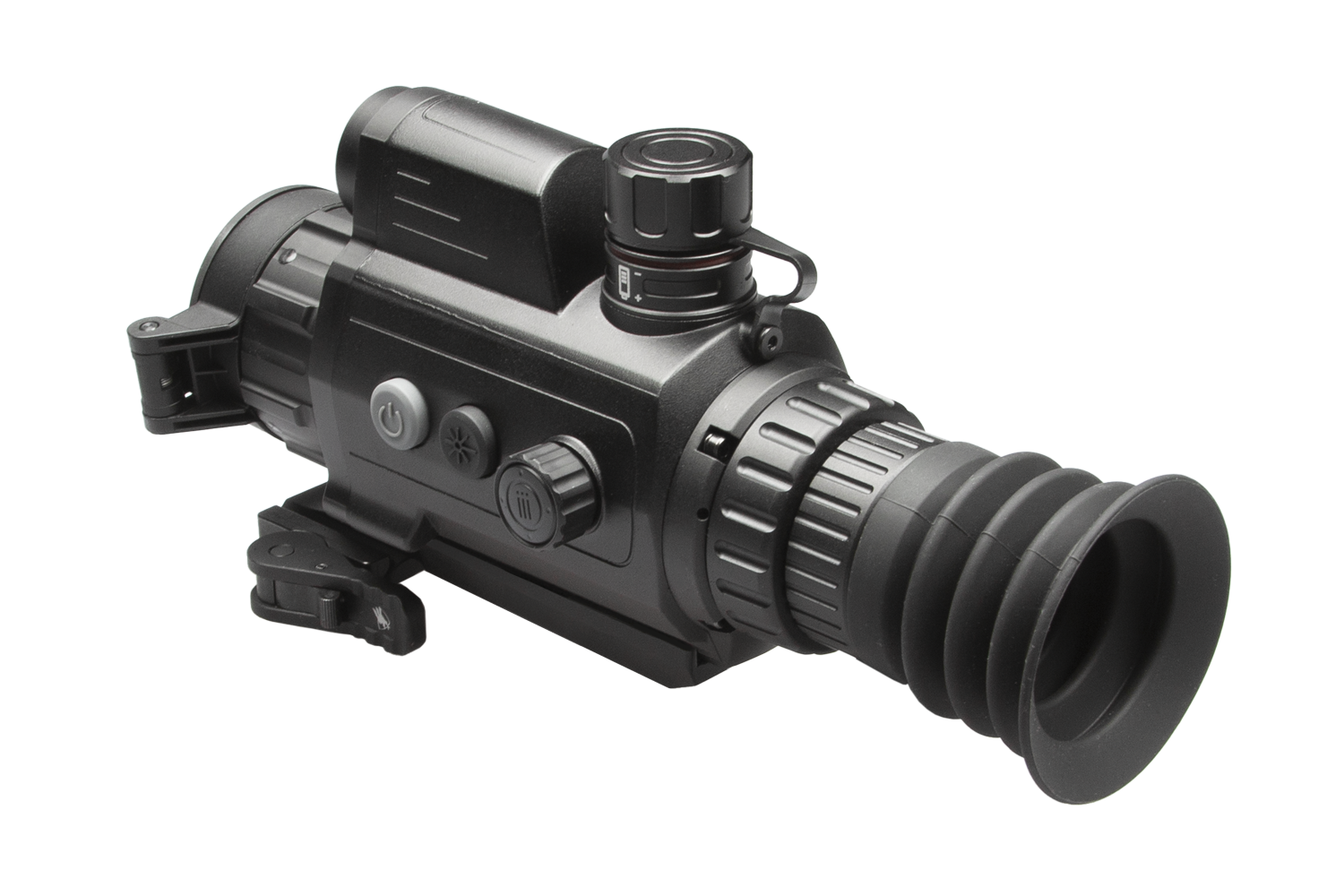

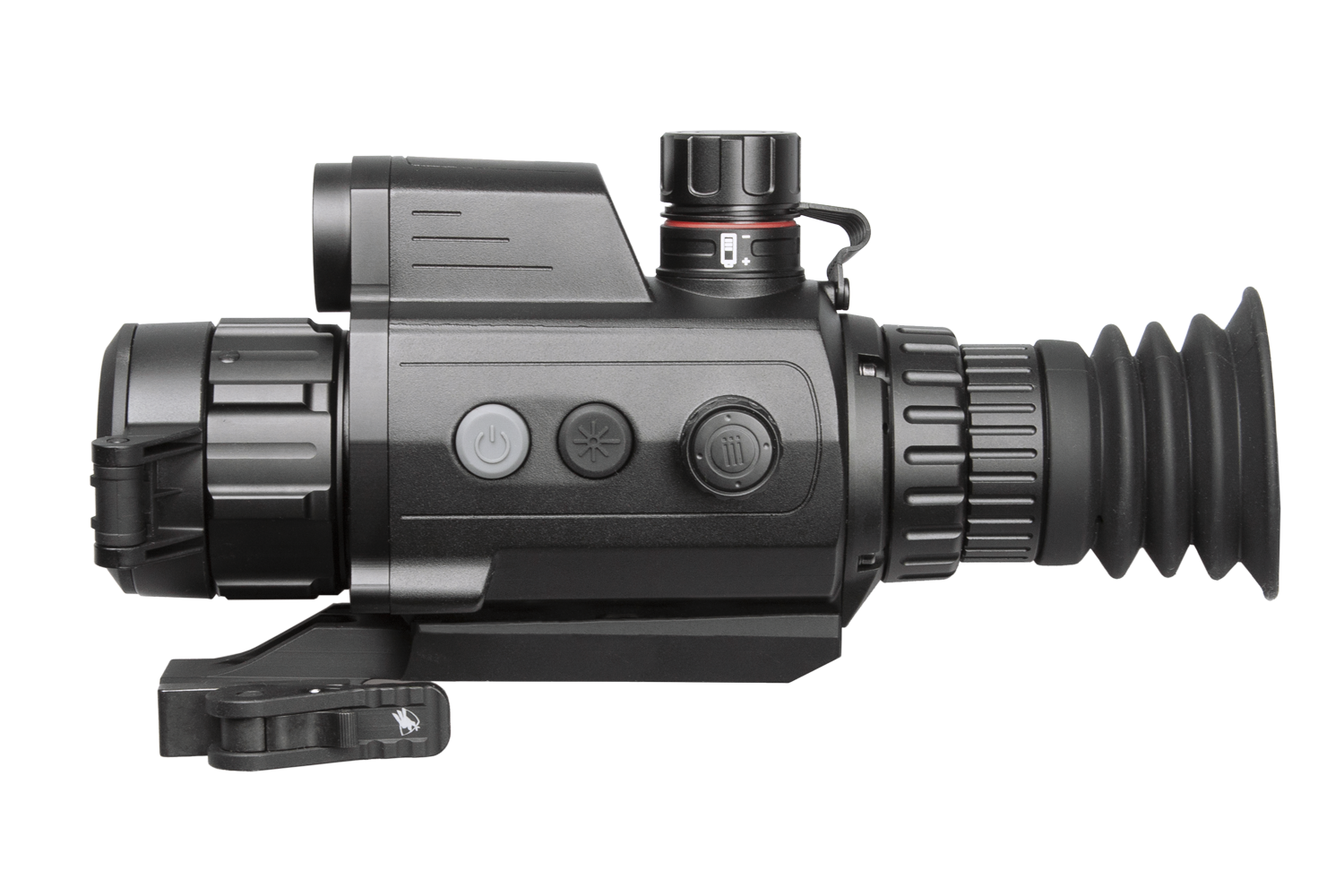

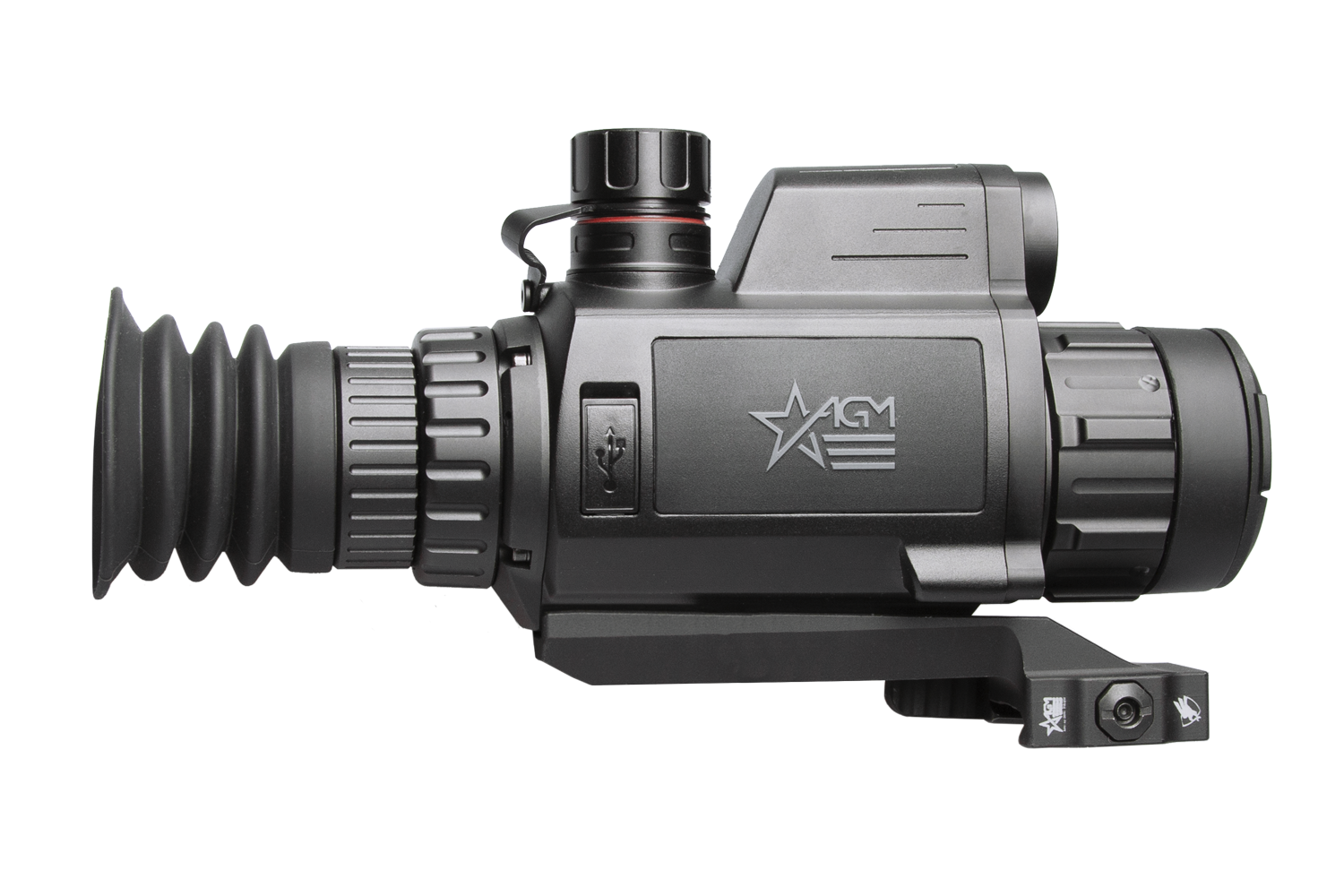

AGM Varmint V2 LRF 35-384

Thermal Weapon Sights

PART #VARM35-384-2

1 reviews | Write a review


Description And features


The NEW VarmintV2 LRF’s are the latest product family to get a heavily anticipated face lift due to AGM’s steadfast commitment to continuous improvement. The New Varmints stay true to their roots by continuing to utilize many of the popular features that were incorporated into the original Varmint LRF riflescopes, like a fully integrated laser range finder, a compact and lightweight housing and 18650 removable rechargeable battery power. However, the VarmintV2 family does get some serious upgrades as well, including, but not limited to: an incredible new sub-20mK 12 micron thermal sensor, an on-board ballistic calculator, a new user interface, more customizable image settings and recoil activated video with sound. Offered in both 384 and 640 resolution options the base magnification options on the four models in this family range anywhere from 2x to 4.5x, which captures the entire range of hog and predator hunting scenarios. Users will surely be impressed by what the new sub-20mK thermal sensor can do when paired with a crisp high resolution OLED display. Of course, external power is always an option through the USB Type C power port, and the AGM Connect app compatibility make pulling your images and videos off quick and easy as ever. Also, every unit continues to ship with an American-made ADM mount, which makes removing and re-mounting to multiple rifles as seamless as ever. Protected by AGM’s industry best customer service and fully transferrable 5-year warranty.

Warning: California's Proposition 65

  • Incredible sub-20mK 12 micron thermal sensor
  • Fast 50 Hz imaging
  • 1x, 2x, 4x, 8x Digital zoom
  • Adjustable color palettes
  • Built-in precision eye-safe laser rangefinder
  • High resolution OLED display
  • On-board ballistic calculator
  • Various reticle types and colors
  • Picture-in-Picture mode
  • Recoil-activated video with sound
  • Built-in EMMC storage (16 GB)
  • Wi-Fi data transmission
  • Standby mode
  • Up to 6 hours battery life (depending on model)
  • External power supply compatible
  • ADM quick release mount
  • Waterproof & shockproof
  • 5-year warranty
Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 384 × 288

FOV: 7.5° × 5.7°

Package Includes
  • Mount
  • 18650 Rechargeable Battery x2
  • USB Cable
  • Power Adapter
  • Battery Charger
  • User Manual
  • Lens Cloth
  • Carrying Case
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.


Specifications


Safety Class for Laser
Class 1
Dimensions
214 × 67 × 87 mm (8.4 × 2.6 × 3.4 in)
Palettes
Black Hot, White Hot, Red Hot, Fusion
Reticle
10 types, 4 colors, on/off
Drop Test Height
1.5 m (4.9 ft)
Boresight Adjustment
Digital Controlled
Boresight Increment
0.13 mil / 0.44 MOA
Scene Mode
Jungle, Recognition
Picture In Picture Mode (PIP)
Yes
Video Recording
On-board video recording
Magnification
3× – 24×
Detector type
12μm VOx Uncooled Focal Plane Array
Response Waveband
8 μm to 14 μm
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384 × 288
Laser Rangefinder
Up to 600 m, ±1 m accuracy
Laser Wavelength
905 nm
Detection Range (6' object)
1,800 m/yd
Snapshot
Yes
Lens system
35 mm; F1.0
NETD
Less than 20 mk (@25°C, F#=1.0)
Field of view (H × X)
7.5° × 5.7°
Digital zoom
Miltiple 1×, 2×, 4×, 8× or Continuous
Monitor
1024x768, 0.39 inch, OLED
Eye relief
45 mm
Storage
Built-in16 GB EMMC
Battery Type
One 18650 (3.7V) Lithium Rechargeable Batteries
Wi-Fi
Yes
Battery Operating Time
Over 6 hours
Battery Capacity Display
Yes
External power supply
5 VDC/2 A, USB Type-C
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Weight
518 g (1.14 lb)
Protection Level
IP67

Firmware update


FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

  1. Connect the thermal device to your PC with USB cable.
  2. Turn on the thermal device.
  3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
  4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
  5. Turn off the device.
  6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
  7. Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

Please check the latest firmware. Click the FW Version to download the firmware update package.

  • AGM Varmint V2 LRF 35-384, AGM Varmint V2 LRF 35-640, AGM Varmint V2 LRF 50-384, AGM Varmint V2 LRF 50-640

    Firmware Versions:

    • AGM 5.5.110_240830

      2. Add Reboot and Restore Factory Settings function.

      (Restore all settings, including reticles and albums.)

      3. Add three new languages: Croatia, Latvia, and Indonesia.

      4. Unify button and wheel direction.

      Button model

      Close to the eyepiece button Move down/Decrease

      Close to lens button Move up/Increase

      Scroll wheel model

      Clockwise rotation Move down/Decrease

      Counterclockwise rotation Move up/Increase

      5. Ballistic Calculation Update:(Only for Scopes with LRF)

      Add Aim Point Style and Color.

      Bullet Name: G1, G7, GS

      Pitch scale algorithm compensation. The calculation results will be automatically

      optimized according to the pitch scale.

      6. Add Diagnostic Log Function for collecting problem logs for analysis.

      b、Optimized Features

      1. Integrate step zoom and incremental zoom to optimize the zoom function.

      Keep only one zoom function which is to increase or decrease the magnification

      by 0.5X per rotating click. (For wheel models only, Spectrum and VarmintV2)

      2. Prerecord time optimization. (Increased from 7s to 10s, default 10s)

      3. Watermark logo optimization (Enabled by default)

      4. Laser ranging optimization.

      The default will change from 15S continuous ranging to Once ranging.

      5. Supports operating menus while recording a video.

      6. Add the "Sharpness" controls to the small sub-menu that contains "Brightness",


      "Contrast", "PIP". (Only Supported by models with sub-menu)

      8. PIP magnification display optimization (small screen of PIP will show

      magnification in the lower left corner, and will disappear after 3s)

      9. Pop-up window logic optimization. Now It shows OK first.

      10. Burn Prevention is on by default.

      11. Time-date order optimization. Date comes first, and time comes second.

      12. Add Reticle mode. The default is Fixed Reticle. (RattlerV2, VarmintV2, Secutor)

      13. yard changes to yd in the unit setting.
