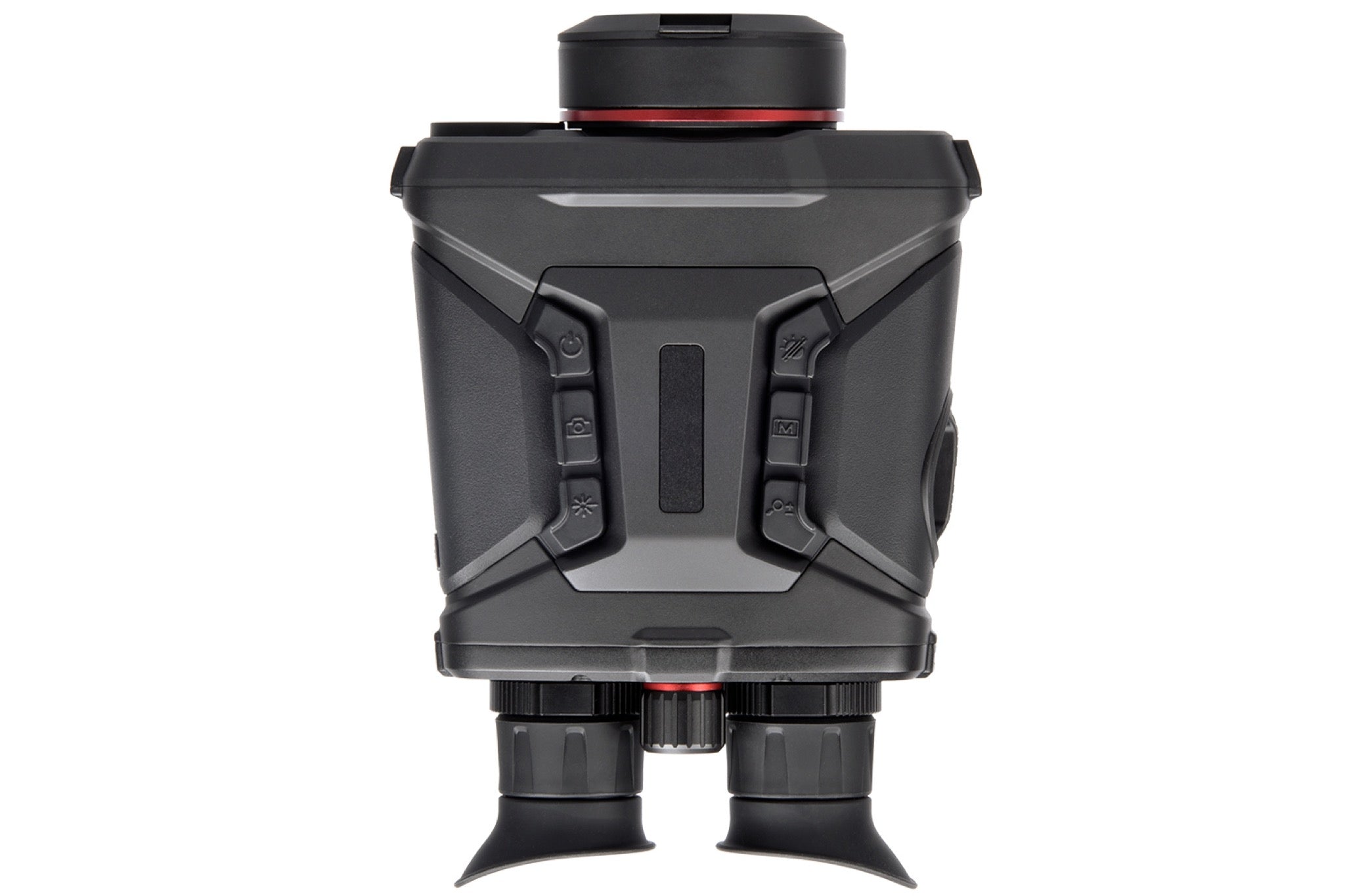

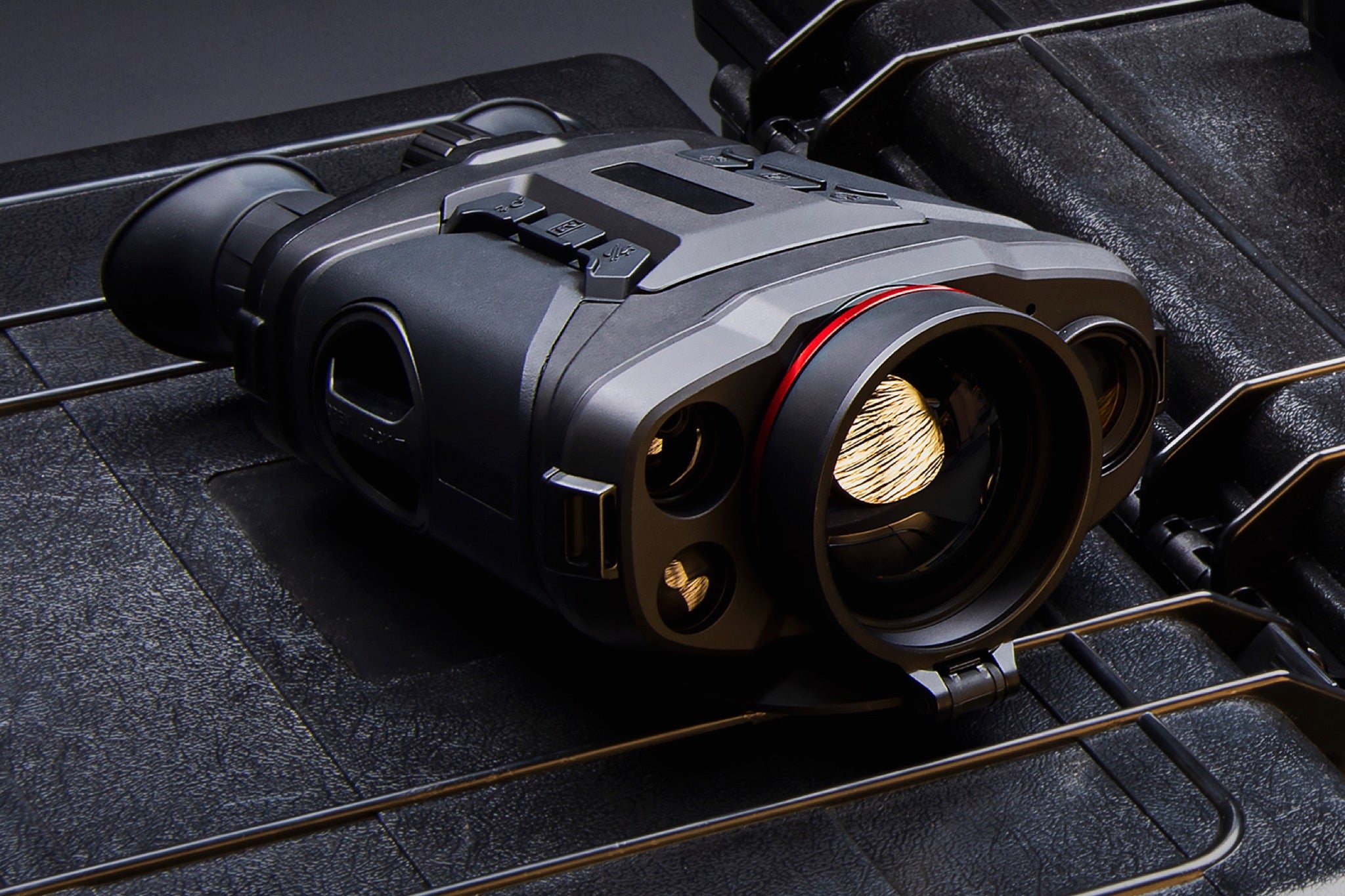

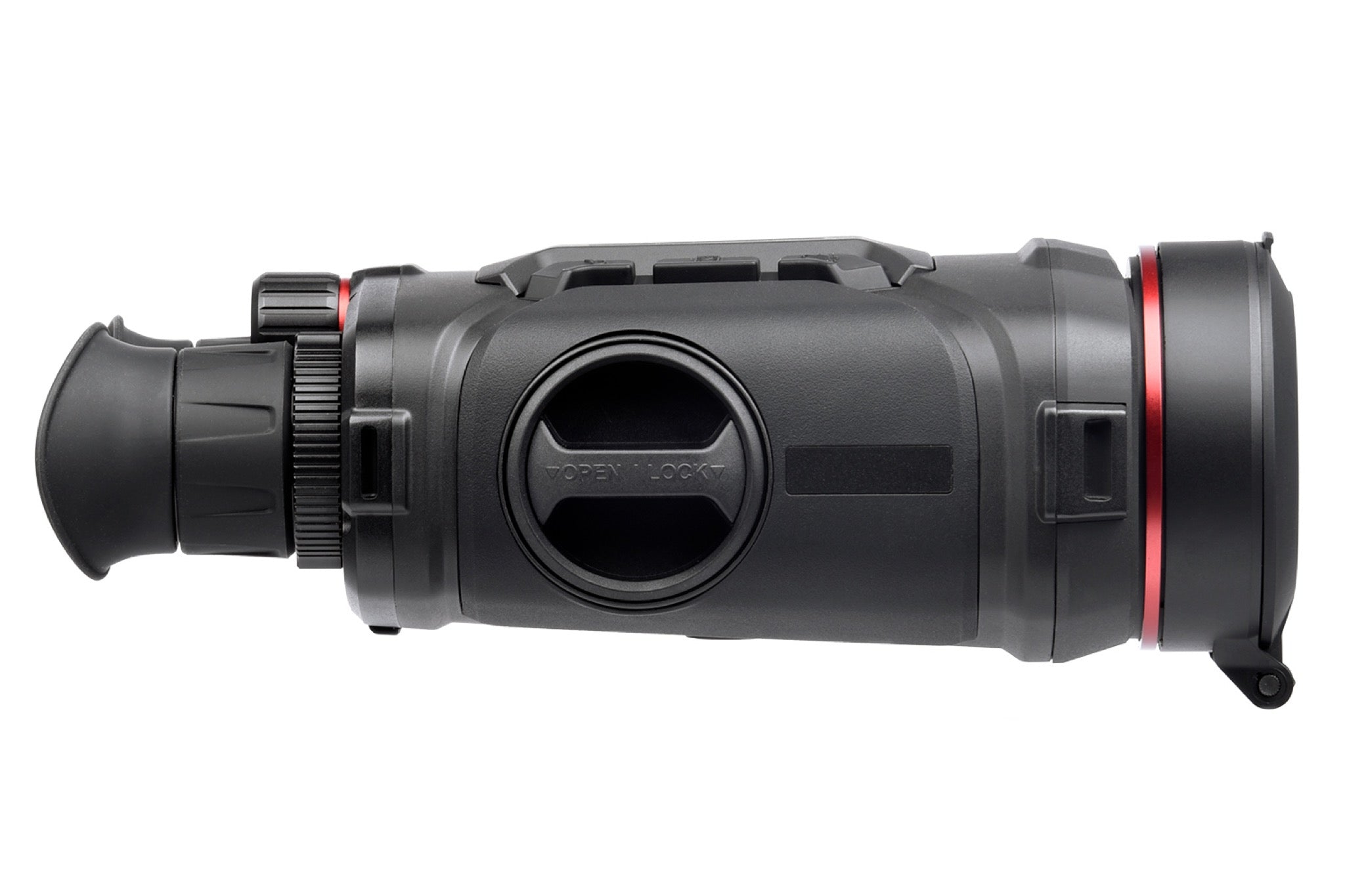

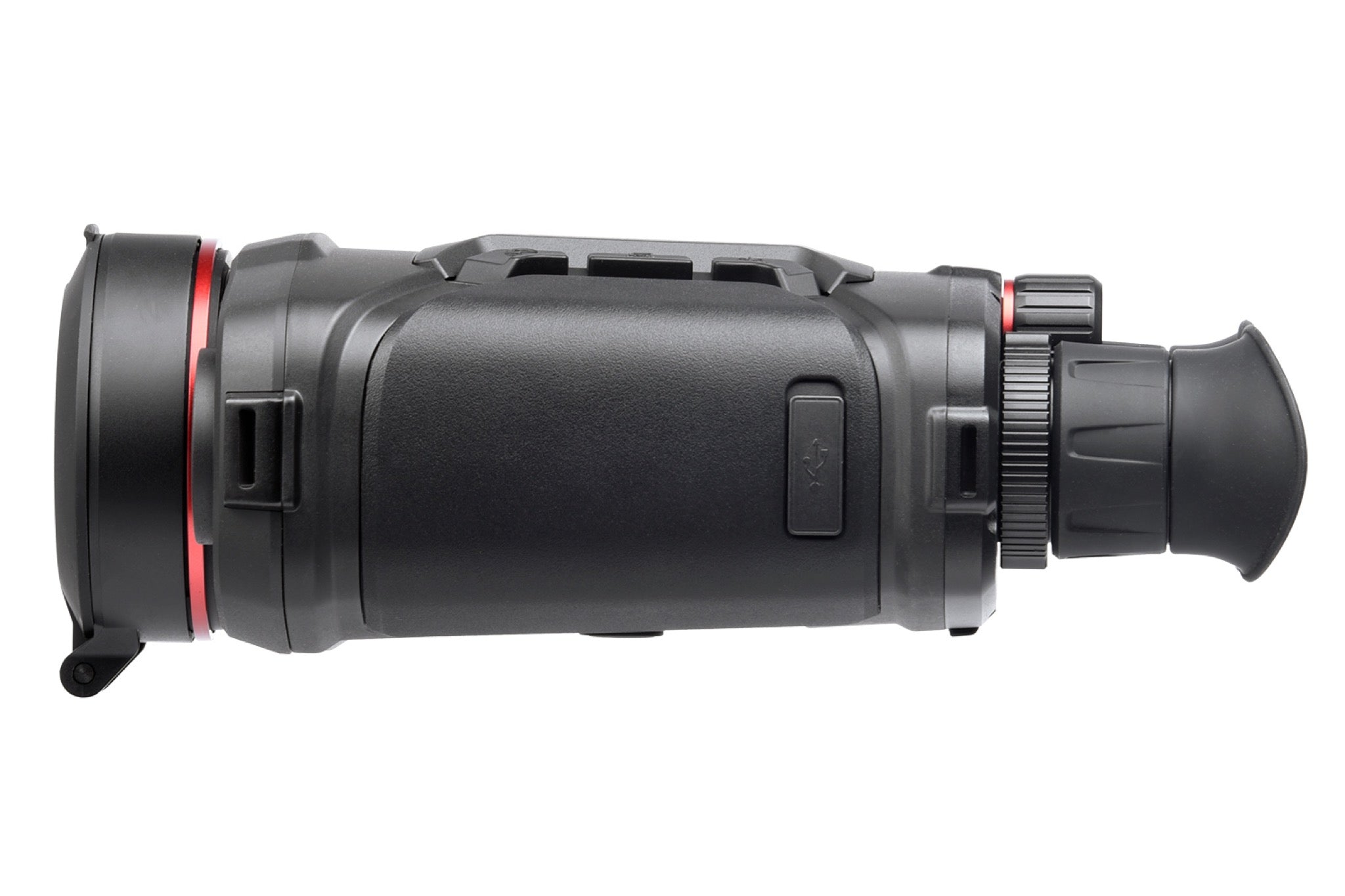

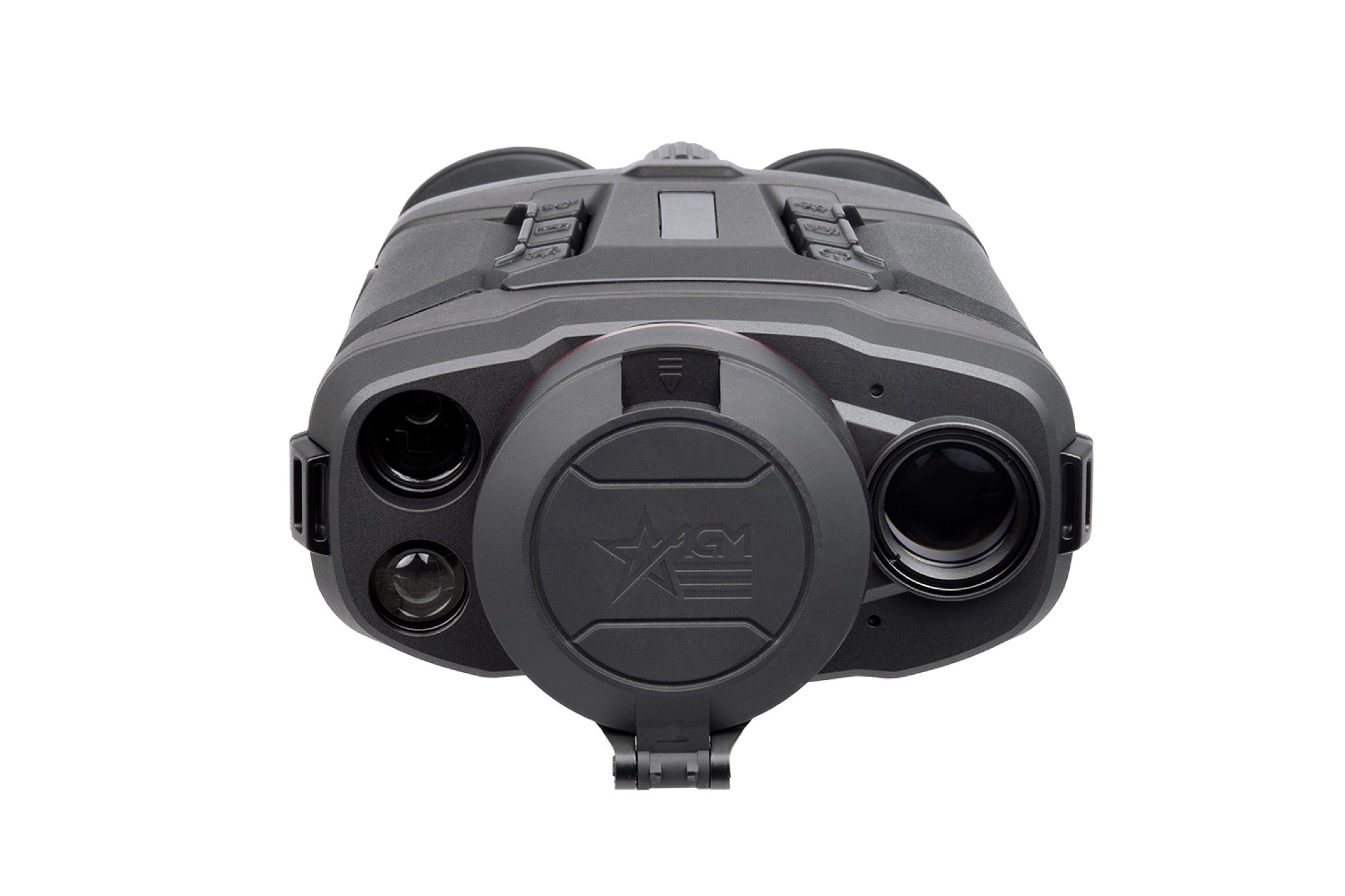

AGM VOYAGE LRF TB75-640

Thermal Binoculars

1 reviews | Write a review


Description And features


The AGM Voyage TB75-640 Fusion Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this binocular lies within the main thermal viewing channel, with its incredible new 12 micron 640x512 thermal detector. This new AGM thermal sensor possesses an industry leading sensitivity rating of sub-20mK (millikelvin). This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 2.2 miles (3600m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges. Unlike other thermal binoculars on the market, the Voyage also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets after the thermal channel has detected a potential target. The built-in 1000m Laser Rangefinder simply takes the Voyage to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.

The potential uses with the Voyage fusion binoculars seem almost as endless as its features, which include, but are not limited to: high-sensitivity sub-20mK thermal detector, 75mm Germanium lens with a 1.2 aperture, 2560x1440 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 5X base magnification with 16X digital zoom, picture-in-picture mode, built-in laser rangefinder, GPS module, inclination sensor,  Digital Detail Enhancement (DDE), up to 8 hours of battery life on three removable, rechargeable 18650 batteries, USB Type-C port for external power capabilities, IP67 waterproof rating, included hard carrying case, neck strap and of course AGM’s 5 Year Transferable Warranty!

Warning: California's Proposition 65

  • Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
  • Selection of thermal view channel, visible light channel, or both them combined
  • Thermal resolution: 640×512
  • Optical resolution: 2560×1440
  • NETD less than 20 mK (25°C, F#=1.0)
  • Digital Detail Enhancement (DDE)
  • Dynamic Noise Reduction (3D DNR)
  • Adaptive Automatic Gain Control (AGC)
  • Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0 , AGC On)
  • Video recording, replay, picture snapshot and search (capable to review the event on device)
  • Wi-Fi hotspot
  • Eye-safe laser rangefinder (up to 1,000 m distance detection with measuring accuracy 1 m)
  • GPS module
  • Digital magnetic compass
  • Inclination sensor
  • Proximity sensor to save power
  • Up to 8 hours continuous operation
  • Waterproof, IP67
  • Limited 5-Year Warranty
Characteristics

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Resolution: 640×512

FOV: 5.9° × 4.7° (H × V)

Package Includes
  • Battery Charger
  • Power Cable
  • Lens
  • Cloth
  • Two Wrist Straps
  • Neck Strap
  • Six 18650 Batteries
  • Power Adapter
  • User Manual
  • Carrying Case
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$8,024.00

Compare

Quick Order

Add to cart


Specifications


Magnification
5× - 80×
Interpupillary Distance
60 mm to 70 mm
Digital Zoom
1×, 2×, 4×, 8×, 16×
Detection Range
3,600 m/yd (6’ object)
Flat Field Correction (FFC)
905 nm (Class 1)
Palettes
Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
Diopter Adjustment
0.39-inch, OLED, 1024×768
Battery Type
Three 18650 batteries
Image Sensor
Vanadium Oxide Uncooled Focal Plane Array
Resolution
640×512
Pixel Pitch
12 μm
Response waveband
8 μm to 14 μm
NETD
Less than 20 mK (25°C, F#=1.0)
Field of View
5.9° × 4.7°
Aperture
F1.2
Lens (Focal Length)
75 mm, Manual focus
Monitor
0.39-inch, OLED, 1024×768
Storage
Built-in memory module (64 GB)
Snapshot
JPEG, 1600x1200
Battery Operating Time
Up to 8 hours
Battery Capacity Display
Yes
Protection level
IP67
Mounting
1/4”-20 UNC
Cable Output
USB Type-C port
Accessories (Supplied)
Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case
Dimension (LxWxH)
217 × 155 × 88 mm (8.5 × 6.1 × 3.5 in)
Weight
1.12 kg ( 2.5 lb)
Storage temperature range
-40°C to 70°C (-40°F to 158°F)
Picture In Picture Mode (PIP)
Yes
Video Recording
MP4, 1600x1200
Measuring Distance of Laser Rangefinder
Max. 1,000 m
Laser Wavelength
905 nm (Class 1)
Eye relief
15 mm
External power supply
DC 5V/2A, Max.10W, Type-C port
