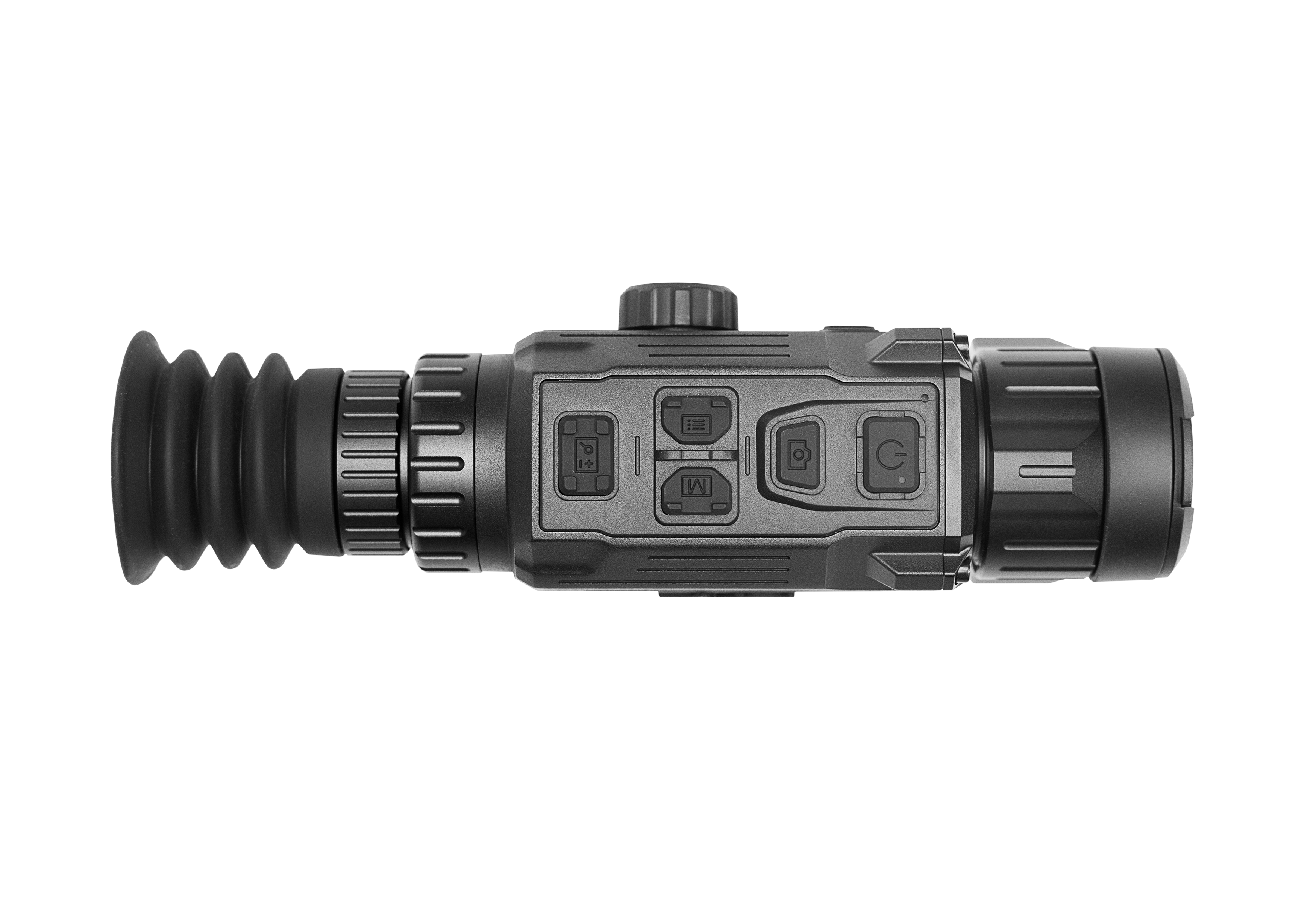

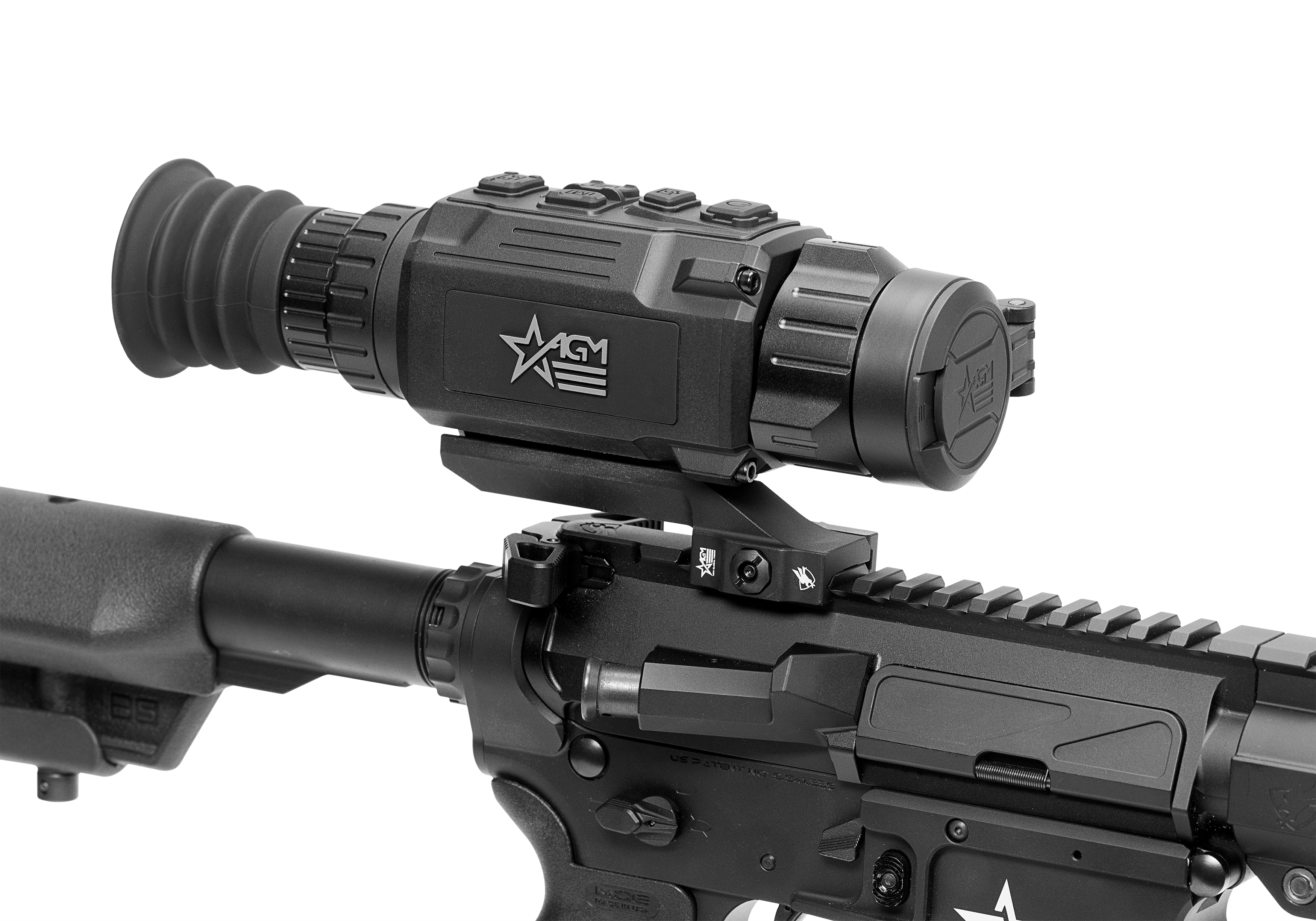

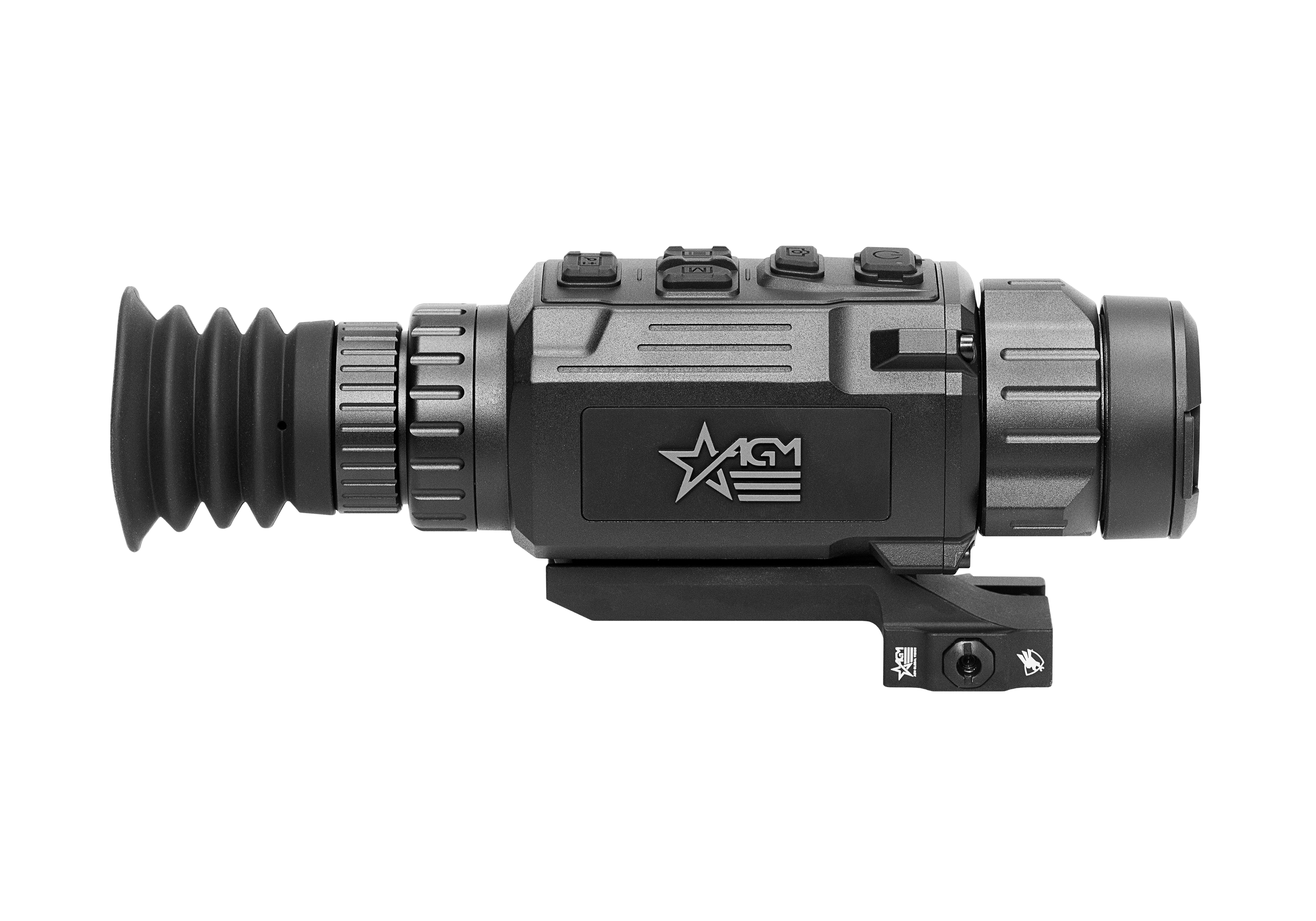

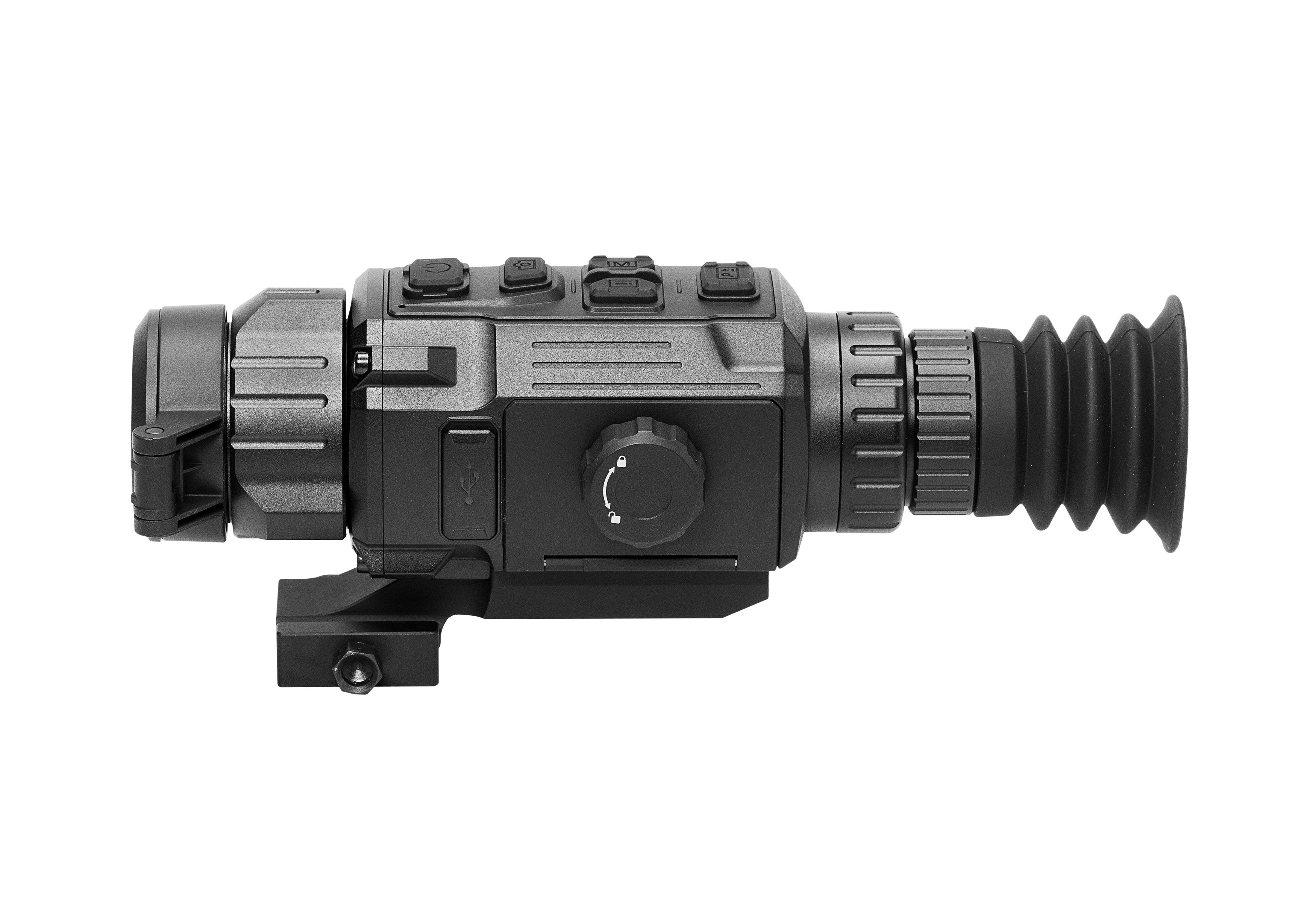

AGM Rattler V2 25-320

Thermal imaging

PART #RATT25-320-2

0 reviews | Write a review


Description And features


The NEW Rattler V2 is one of the most highly-anticipated product releases. Improving on what is already considered the best-selling thermal riflescope product family in the United States, the RattlerV2 brings many of the most sought after design improvements into one sleek new housing. These improvements include, but are not limited to: dramatically expanded battery life offered through the unit’s proprietary removable and rechargeable battery system, which will afford users 6.5 hours on a single charge (2 included), an expanded built-in reticle
assortment, expanded brightness and contrast settings, shot activated recording with sound and new 12-micron thermal sensor that have the highest rated sensitivity rating (sub-20 mK) on the market. For a product family which was already boasted one of the best value propositions in the market, the new RattlerV2’s will only expand on that reputation.

The RattlerV2 25-320 base magnification sits at 3.5X, making an ideal unit for people hunting predators in more wide open spaces. This higher base magnification affords shooters the luxury of going all the way up to 7X before halving the base resolution, which is comparable to many higher resolution thermal scopes that have to cut their base resolution multiple times to get to that high of a magnification level. Also, like all RattlerV2 models, the unit utilizes the best durable housing and battery system on the market. AGM - Vision Without Limits.


Warning: California's Proposition 65

  • Superior sub-20 milikelvin thermal sensitivity
  • 320×256 resolution with 12-micron sensor
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • Over 6.5 hours battery life
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty
Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 320 × 256

Base Magnification: 3.5× - 28×

FOV: 7.0° × 5.3°

Package Includes
  • ADM QD Mount
  • Two NE-4400 Rechargeable Batteries
  • Battery Charger
  • USB Cable
  • Lens Cloth
  • Owners Manual
  • Carrying Case
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$1,445.00

Compare

Quick Order

Add to cart


Specifications


Shot-Activated Recording
Yes
Max. Recoil
1000 g/0.4 ms
Flat Field Correction (FFC)
Auto, Manual, Semi-Auto
Palettes
Black Hot, White Hot, Red Hot, Fusion
Dimensions
219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in)
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes
Defective Pixels Correction (DPC)
Yes
Audio Recording
Yes
Magnification
3.5× - 28×
Detector type
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
320 × 256
Detection Range (6' object)
1200 m/yd
Snapshot
Yes
Lens system
25 mm; F/1.0
NETD
Less than 20 mK (25°C, F# = 1.0)
Field of view (H × X)
7.0° × 5.3°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 dpt
Focusing range
7 m to infinity
Hot Track
Yes
Eye relief
45 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Battery Type
One replaceable rechargeable NE-4400 Li-Ion battery (two NE-4400 batteries included)
Wi-Fi
Yes
External power supply
5 VDC, 2 A, USB Type-C
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.49 kg (1.08 lb)
Protection Level
IP67
Package Includes
Thermal Imaging Rifle Scope, Mount, Two NE-4400 Rechargeable Batteries, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
Battery Life (Operating)
Over 6.5 hours (25°C, with WiFi off)

Firmware Updates


FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

  1. Connect the thermal device to your PC with USB cable.
  2. Turn on the thermal device.
  3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
  4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
  5. Turn off the device.
  6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
  7. Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

Please check the latest firmware. Click the FW Version to download the firmware update package.

  • AGM Rattler V2 25-320

    Firmware Versions:


  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
