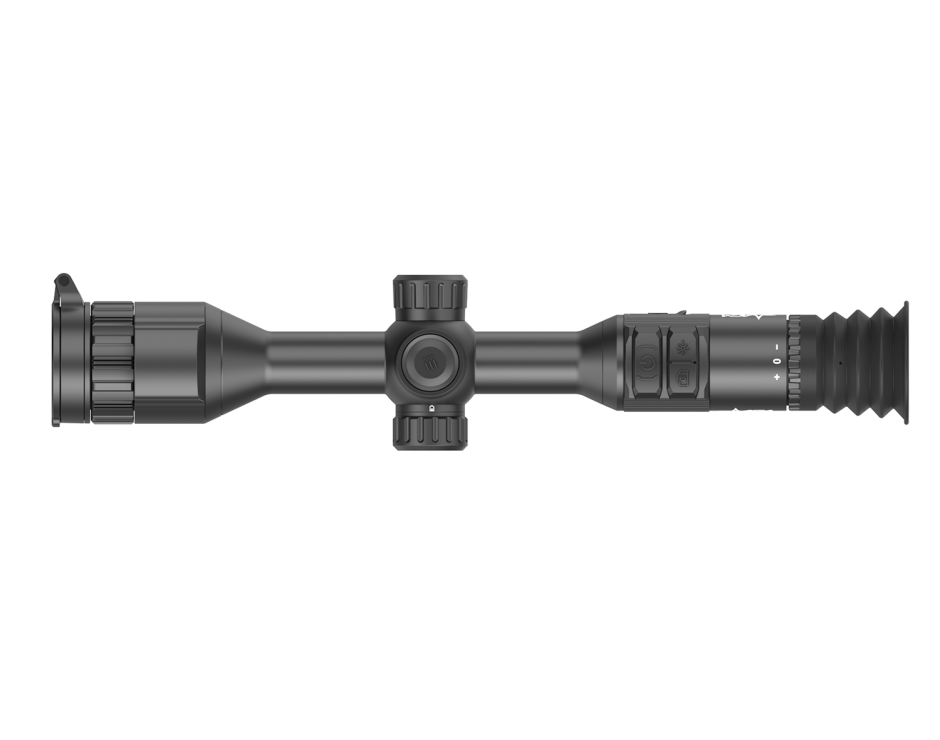

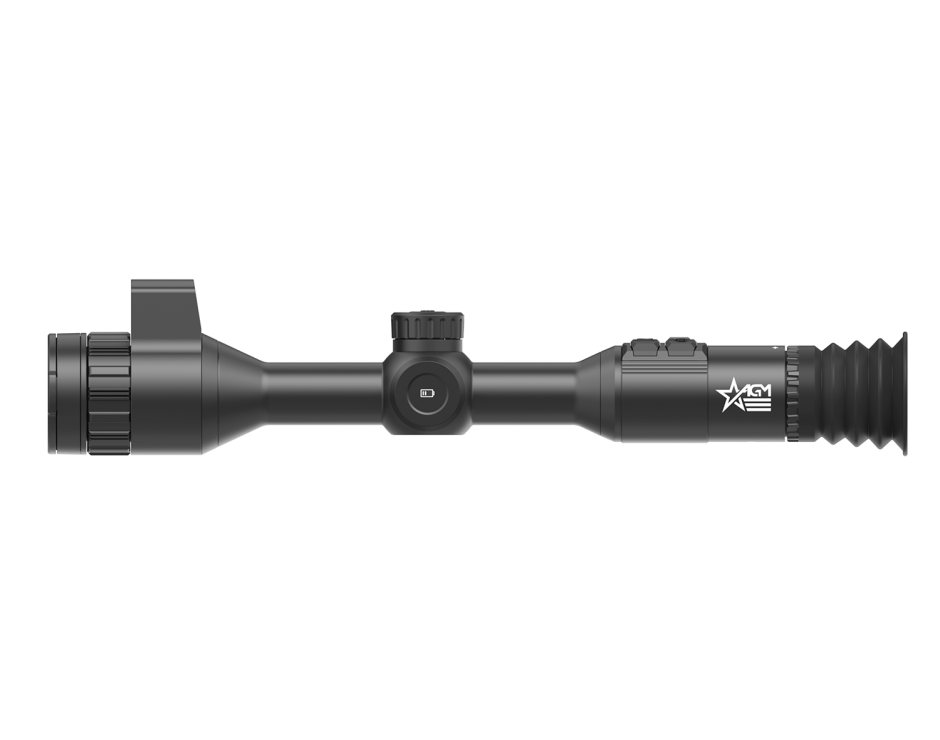

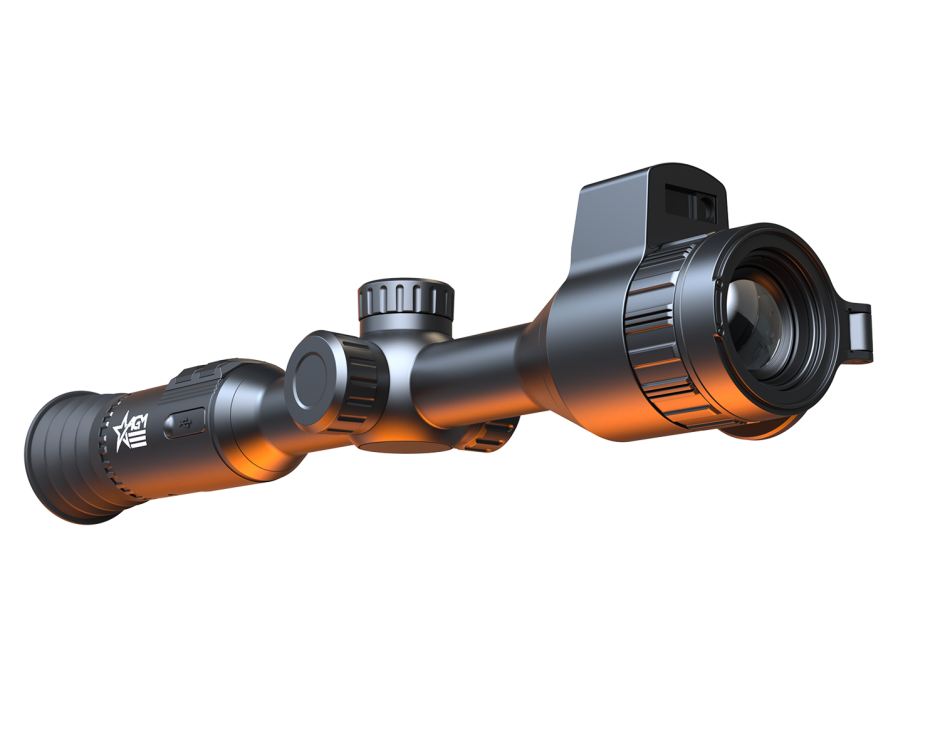

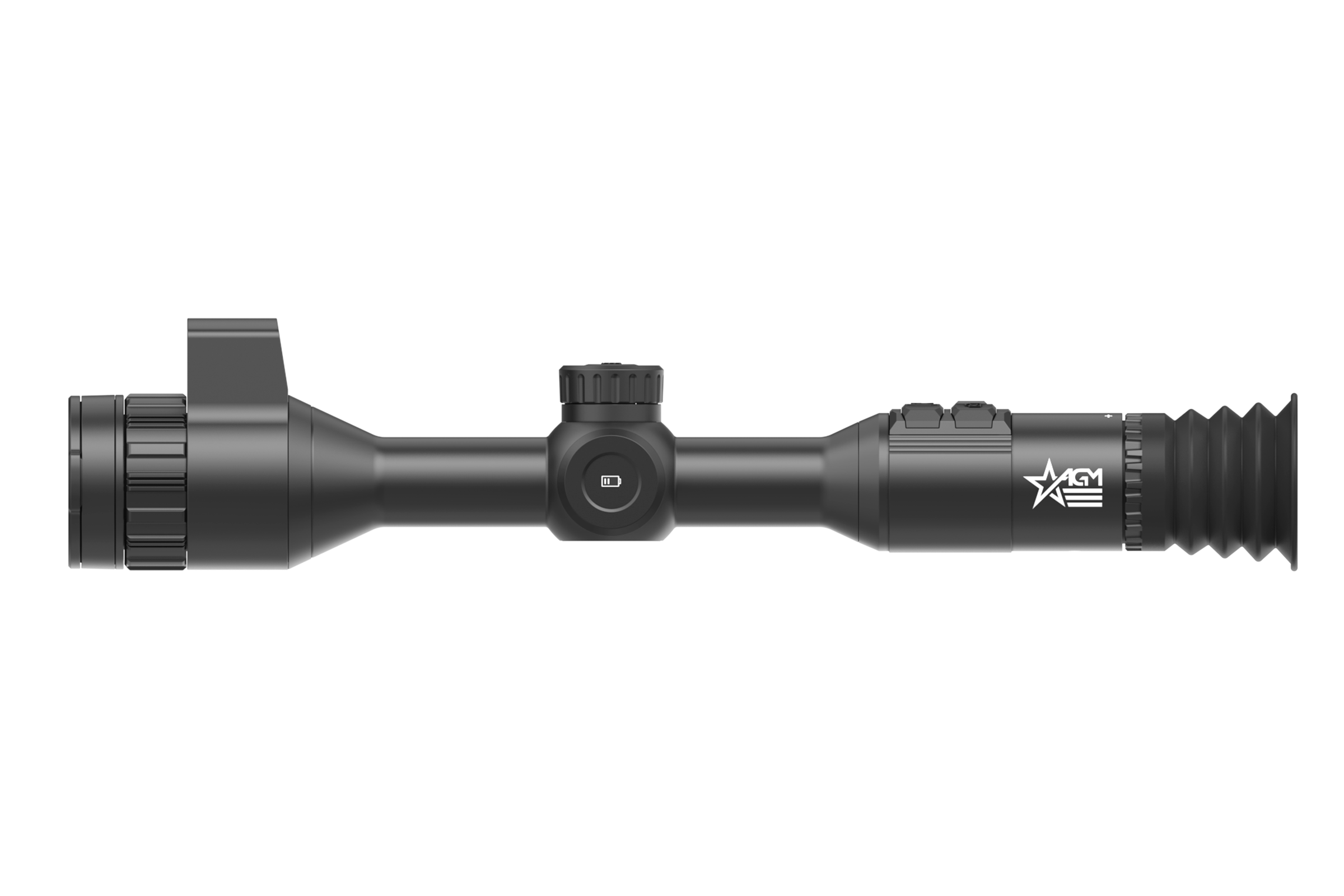

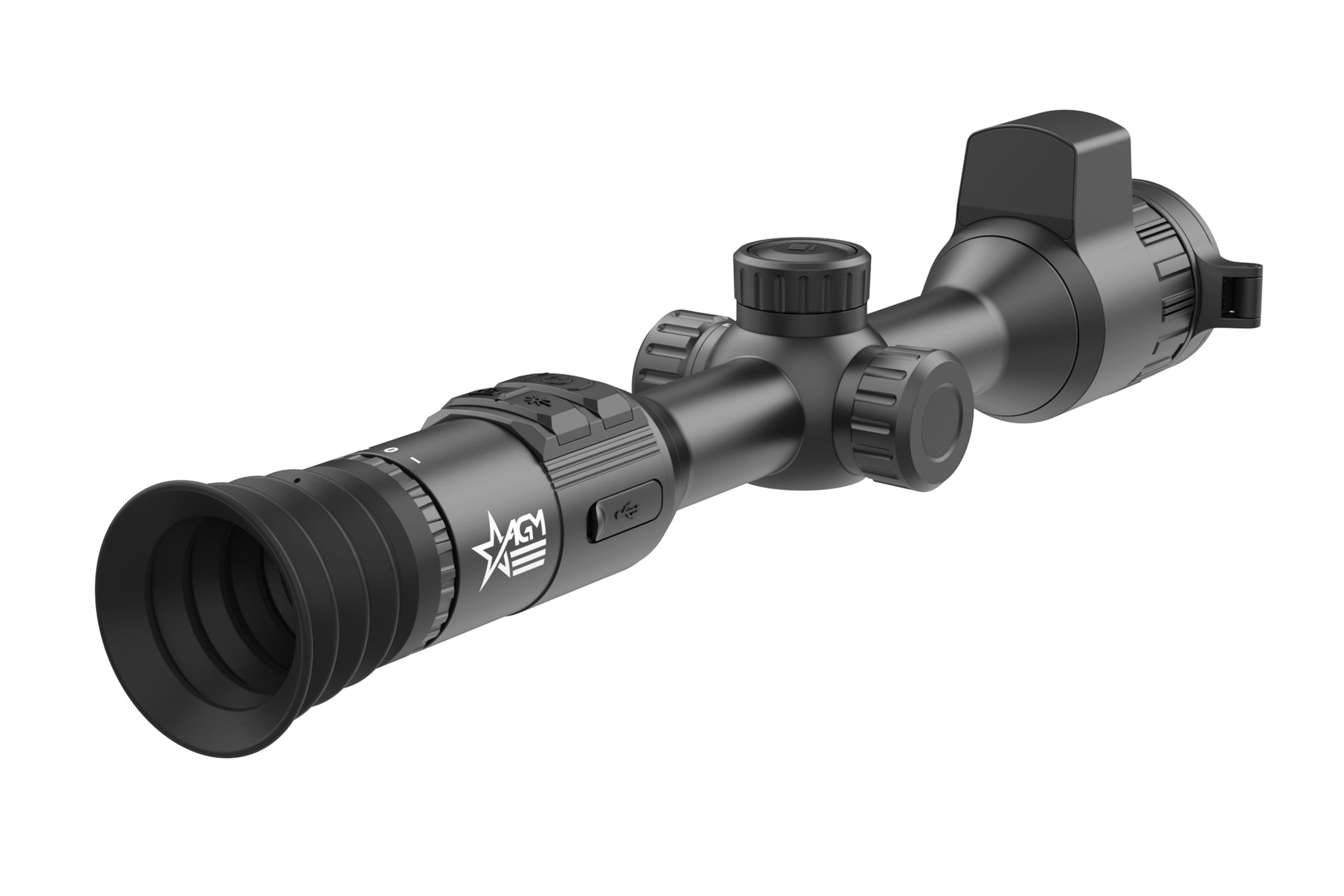

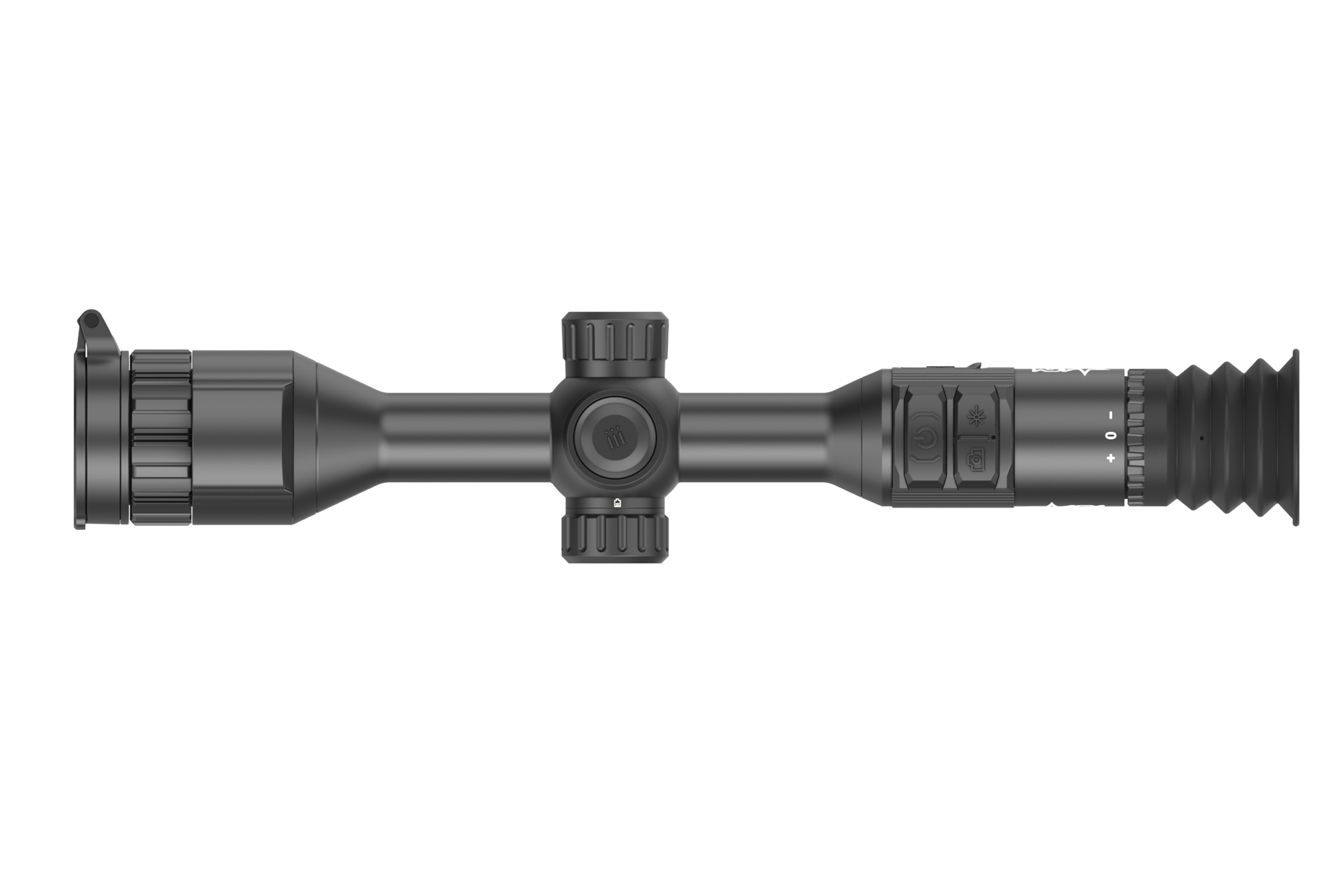

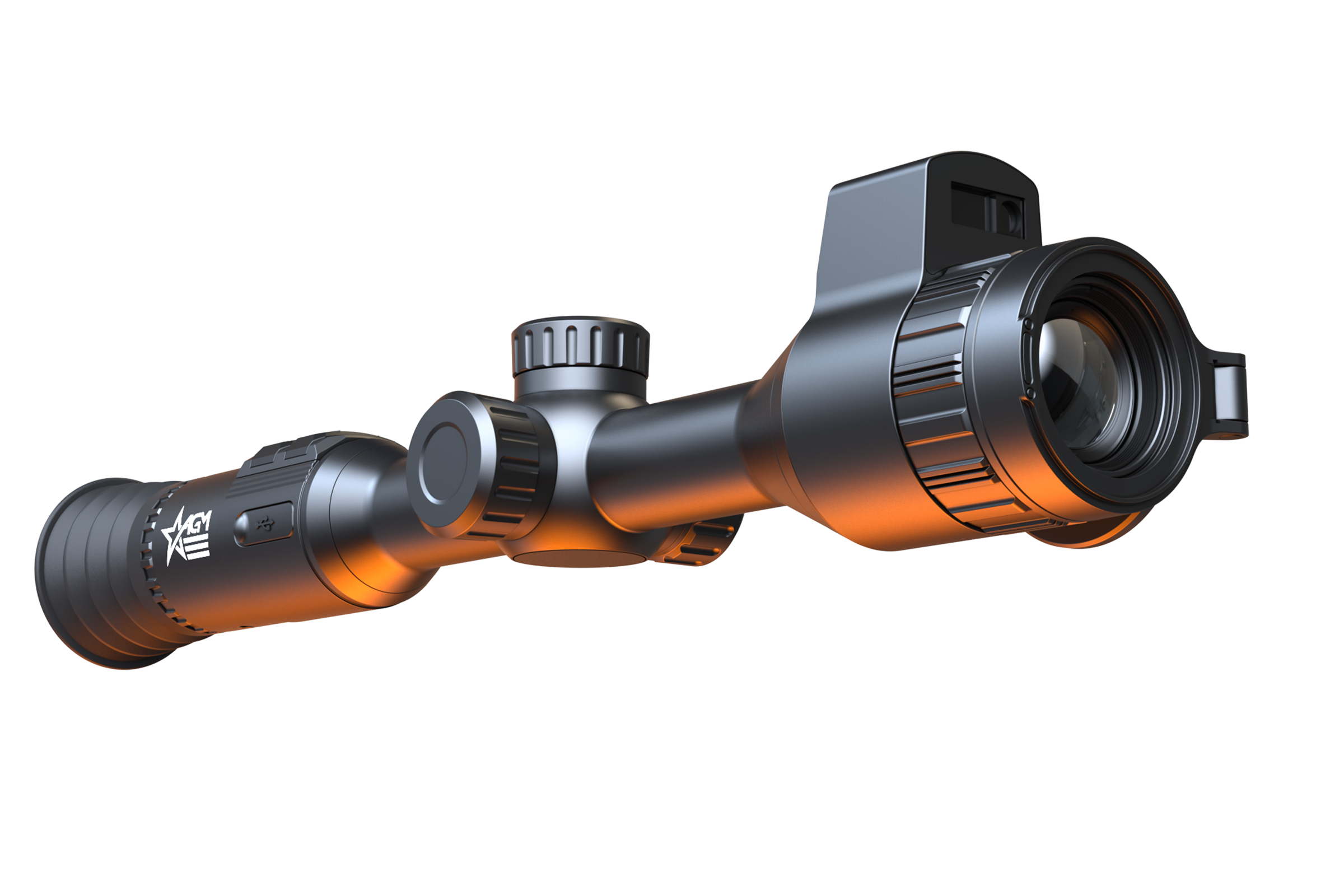

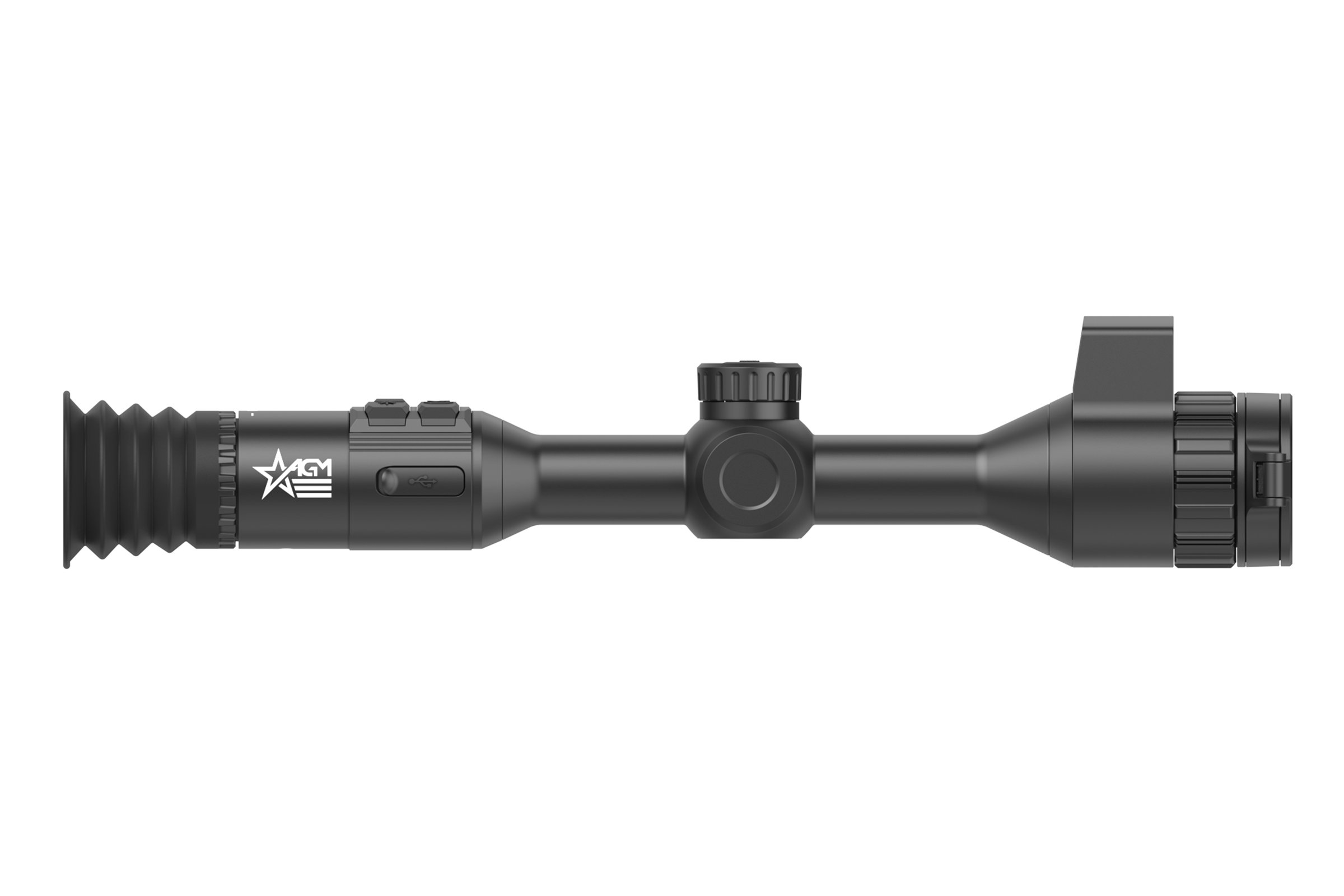

AGM Adder V2 LRF 35-384

Thermal imaging

PART #ADDE35-384-L2

0 reviews | Write a review


Description And features


The AGM AdderV2 LRF is the next step in the evolutionary process in the AGM thermal riflescope lineup. Based off the ever-popular original 30mm AGM thermal scopes, the Adders, the V2’s will improve upon its predecessor in a number of ways, many of which come directly from our loyal customers.
The New AdderV2 LRF 35-384 primary goal was to assimilate a feature which many electro-optics veterans end up looking at as a necessity, which is a fully integrated 1000yd laser rangefinder. And although the majority of units in the AdderV2 family will come with an integrated LRF and ballistic calculator, the AdderV2 35-384 will come equipped with the highest base magnification of the bunch. Coming in at 4X, the 35-384 will be a great option for hunters and shooters that are happy to hunt with a slightly narrower field of view, knowing that they have not sacrificed any of the resolution via digital zoom to get there. With a magnification range of 4-24X, the AdderV2 35-384 will be perfect for those who already own hunting rifles equipped with the ever-popular 4-16X or 4-20X daytime rifle scopes.
Although the new internal LRF module is one of the major improvements in the new AdderV2’s, it’s certainly not the only one. Not to be outdone, the new 384/12 micron sensor comes in at an industry-leading sub-15mk sensitivity. And we didn’t just pair that new sensor with a common 1024 display, we’ve paired it with an intricate new 2560x2560 micro display and a new shutterless nuc. This display not only provides users with unrivaled image quality, but also with the new semi-circular internal user interface. This new interface will still comfortably provide shooters with the most crucial information, such as battery life, magnification level, range, time and vertical/horizontal pitch scale readout. This unit also allows users to switch from full step zoom to 0.5X incremental zoom adjustments as well, so there’s no wasted sections of the magnification range. Other improvements include: new red & green monochrome color palettes, 64GB of internal storage capacity, 1000g recoil resistance, a fully integrated on board ballistic calculator, pitch scale activation, media albums which can be viewed on the device (not just your phone), internal 9hr rechargeable battery, cold & warm hue viewing modes, and more. And like the original Adder series scopes, the AdderV2’s will come with a field-proven American-made ADM one-piece Recon 30mm mount ($220 value) included. AGM – Vision Without Limits.

Warning: California's Proposition 65

  • 384×288 thermal resolution
  • 12μm high-sensitivity sub-15mK detector
  • Shutterless technology
  • Built-in 1000m laser rangefinder and ballistic calculator
  • 0.5x step of continuous zooming
  • On-board video and audio recording
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Fast 64GB EMMC built-in storage
  • Various reticle types and colors
  • Standby mode
  • Waterproof & shockproof
  • Dual power system
  • Up to 9 hours continuous working
  • 5-year warranty
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$2,995.00

Compare

Quick Order

Add to cart


Specifications


Shot-Activated Recording
Yes
Max. Recoil
1000 g/0.4 ms
Frame Rate
50 Hz
Ballistic calculator
Yes
Detection Range
1800 m
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Dimensions
420 × 88 × 88 mm (16.5 × 3.4 × 3.4 in)
Exit Pupil Diameter
6 mm
Pixel Interval
12 μm
Distance Measurement
Yes
Picture In Picture Mode (PIP)
Yes
Hotspot
Yes
Audio Recording
Yes
Magnification
4× – 24× (support 0.5X step continuous zooming)
Image sensor
VOx Uncooled Focal Plane Arrays
Response Waveband
8 μm to 14 μm
FFC (Flat Field Correction)
Semi-Auto, Manual
Standby Mode
Yes
Resolution
384 × 288
Lens system
35 mm, F1.0
NETD
Less than 15 mK (@25°C, F# = 1.0)
Mounting
Standard 30mm
Field of view (H × X)
7.5° × 5.7° ( 13.1m × 10.0m @100m )
Diopter adjustment range
-4D to 4D
Focusing range
3 m minimal
Hot Track
Yes
Eye relief
45 mm
Display
2560x2560, 1.03 inch OLED
Storage
Built-in EMMC (64 GB)
Record Video
On-board Video Recording
Capture Snapshot
Yes
Battery Type
Two rechargeable Lithium batteries (internal) and one replaceable and rechargeable 18650 Lithium battery (external)
Battery Operating Time
9 hours continuous running (@25°C, LRF on)
Power supply
5 V DC/2 A, USB Type-C interface, Supports QC3.0 (* Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery)
Operating Temperature Range
-30°C to 55 °C (-22 °F to 131°F)
Weight
0.83 kg ( 1.83 lb)
Protection Level
IP67

Firmware update


FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

  1. Connect the thermal device to your PC with USB cable.
  2. Turn on the thermal device.
  3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
  4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
  5. Turn off the device.
  6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
  7. Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

Please check the latest firmware. Click the FW Version to download the firmware update package.

  • AGM EVOLVER LRF 1280, AGM Adder V2 LRF 35-384, AGM Adder V2 LRF 35-640, AGM Adder V2 LRF 50-640, AGM Adder V2 LRF 60-1280, AGM Spectrum LRF 4K

    Firmware Versions:

    • AGM_V5.5.124_250607

      KEY Feature Updates

      1. Image Boost 3.0

      Improved algorithm with reduced noise and enhanced target highlighting. (Only on AdderV2 now.)

      2. Reticle & Ballistics

       Thinner reticle for higher precision (with thinner reticle – reticle 6 & smaller dot – reticle 10).

       All features, interface, and operation methods under the Zeroing menu are update to the latest.

      Support the Reticle center color (4 colors).

       Ballistic Calculation Updates. The BC function will move under the Zeroing menu. Add bullet types

      (G1, G7, GS), aim point colors and types on Evolver and Spectrum.

       BC supports pitch angle compensation. The device can automatically adjust the position of the BC

      mark by reading the pitch angle data from the gyroscope and entering it into the algorithm

       BC aim point is shrunk and reduces the obscuration of the target.

       The BC aim point will be shown in the PIP view.

      *Note: To prevent the large reticle in the PIP view from obscuring the target and the aim point, only

      the reticle center will be retained in the PIP view, but reticle types 5, 6, and 10 will not be changed.

      3. LRF Display: LRF reading now shows in the screen center and will disappear after 10 seconds.

      If the distance measurement fails or cannot reach a valid value, “000” will be displayed.

      The LRF display is different when the reticle is enabled and disabled to avoid obscuring the target.

      b. Other updates

      1. The folder name on PC will be updated from “DCIM” to “AGM Content.”

      2. Update the boot screen and watermark to the new AGM logo.

      3. OSD Icons Simplification: SD card capacity, zoom magnifier icon, and USB mode icon removed.

      4. Support the Horizontal Distance measurement function.

      5. Power Saving. The hotspot will automatically turn off if no connection for 10 minutes.

      6. Only supports single ranging when ballistic calculations are enabled.

      7. Add Zoom Mode function(AdderV2 and Spectrum LRF 4K). Step Zoom (1X, 2X, 4X, 8X) is now back.

      Support switching between Step Zoom and Incremental Zoom

      8. Support the Red and Green Monochrome palettes on Evolver.

      9. Support the Channel Viewing Activation for 6 palettes on Evolver.

      10. Update the option names in Scene Mode for Evolver and AdderV2. Change “Recognition” to

      “General”; “Jungle” to “Compressed”.

      11. Add a new language: Turkish.

      12. Support the Diagnostic Log function.

      13. Support the Reboot and Restore Factory Settings function. (Restore is renamed as Reboot)

      14. SD card storage capacity will be displayed in the Version.

      15. No scanning alert will pop up when the device is connected to the computer.

      16. Optimize Evolver and AdderV2-1280 image horizontal lines problem.

      17. Fix bugs, like the watermark exceeding the boundary on AdderV2-35mm.
