PVS14-51 SKD Kit with MG w/Standard Kit (11769)

PART #11P50XXXXXXX1

0 reviews | Write a review


Description And features


AGM PVS14-51 SKD Kit is a set of parts required to assemble PVS14-51 night vision monocular. The kit does not include Image Intensifier Tube. It is not a functioning system and has no capability to be used during the day or night without further assembly and alignment. AGM PVS14-51 SKD Kit (no IIT) is sold under AGM OEM program to authorized manufacturers who are certified in assembly of electro-optical devices. The PVS14-51 is a high-tech, durable and versatile Night Vision monocular. Packed with high-tech features, the Wolf-14 is equally suited for security, hunting and recreation purposes. The PVS14-51 can be hand-held or mounted on a headgear. This kit can be equipped with high-performance Gen 2 or Gen 3 image intensifier tube in green or white phosphor version. Long-range nighttime view is available in seconds with a variety of compatible lenses. The PVS14-51 features bright light shut-off circuitry and a built-in IR illuminator.

Warning: California's Proposition 65

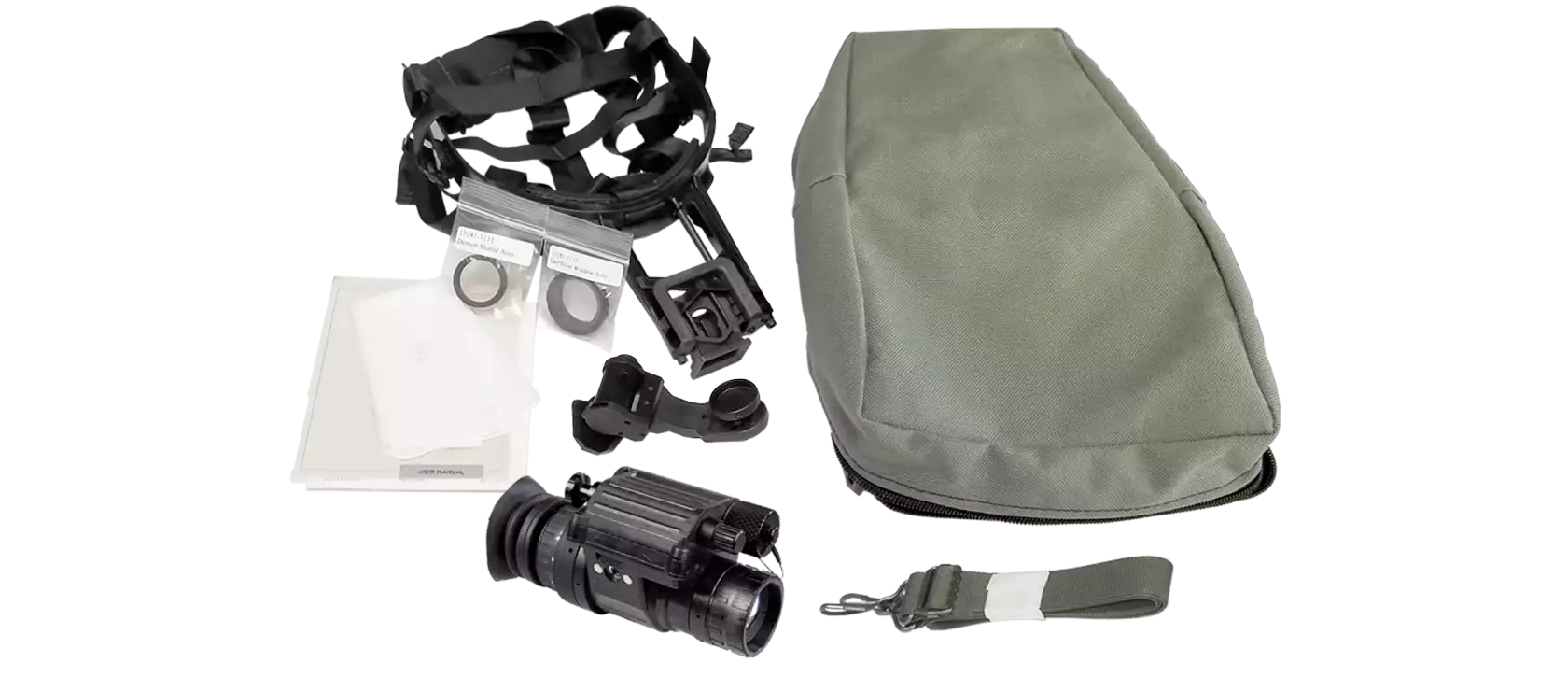

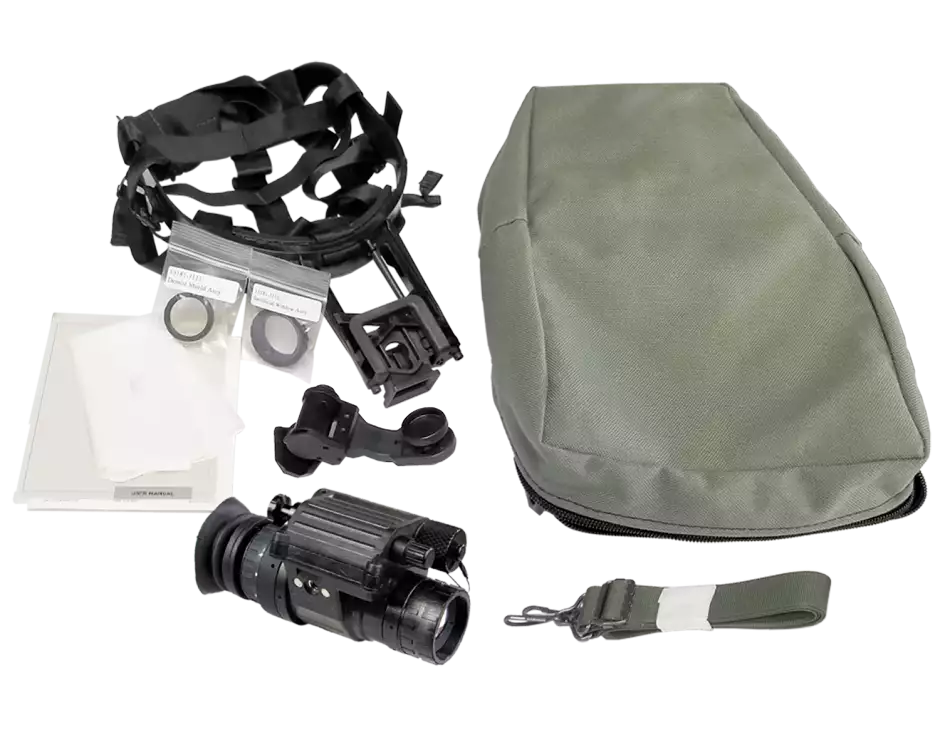

AGM PVS14-51-MG-11769 Body Kit Objective Lens, Housing, Eyepiece, (no IIT).

  • Objective Lens Cap / Daylight Filter 1
  • Eyecup 1
  • Demist-Shield 1
  • Sacrificial Window 1
  • Head Mount Assembly 1
  • Head Mount Adapter 1
  • Lens Tissue 1
  • Manual 1
  • Shoulder Strap 1
  • Soft Carrying Case

  • SKD kit of assembled parts for PVS14-51 night vision monocular
  • Image Intensifier Tube is not included
  • Compact, rugged design
  • Head mountable for hands-free usage
  • Ergonomic, simple, easy to operate controls
  • Utilizes single AA Alkaline battery
  • Built-in Infrared illuminator

Package Includes

  • Objective Lens Cap / Daylight Filter
  • Eyecup
  • Demist-Shield
  • Sacrificial Window
  • Head Mount Assembly
  • Head Mount Adapter
  • Lens Tissue
  • Manual
  • Shoulder Strap
  • Soft Carrying Case

Downloads

$1,045.00

Compare

Quick Order

Add to cart


Specifications


Image Intensifier Tube
Compatible IIT Type 11769
Magnification
1x
Lens System
19 mm; F/1.26
FOV
51°
Focus Range
0.25 m to Infinity
Diopter Adjustment
-6 to +2 diopters
Led Indicators
- Low Battery - IR On - Excessive Level of Light
Infrared Illuminator
Yes
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Battery Type
One AA Alcaline (1.5 V)
Battery Life (Operating)
Up to 50 hours at 20°C
Operating Temperature Range
-51°C to +49°C (-60°F to +120°F)
Storage Temperature Range
-51°C to +85°C (-60°F to +185°F)
Weight
300 g (10.6 oz)
Overall Dimensions
102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in)
