AGM PVS-14 NL1

Night Vision Monoculars

PART #11P14122453011

0 reviews | Write a review


Characteristics

Image Intensifier Tube: Gen 2+ "Level 1"

Magnification: 1x (3x and 5x optional)

Lens System: 26 mm; F/1.2

FOV: 40°

Package Includes
  • Packing Box
  • System Soft Carrying Case
  • Helmet/ Head Mount Adapter
  • Head Mount Assembly
  • Neck Lanyard
  • Operators Manual
  • Batteries
  • Demist Shields
  • Sacrificial Window
  • Lens Tissue
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$2,619.00

Compare

Quick Order

Add to cart

Description And features

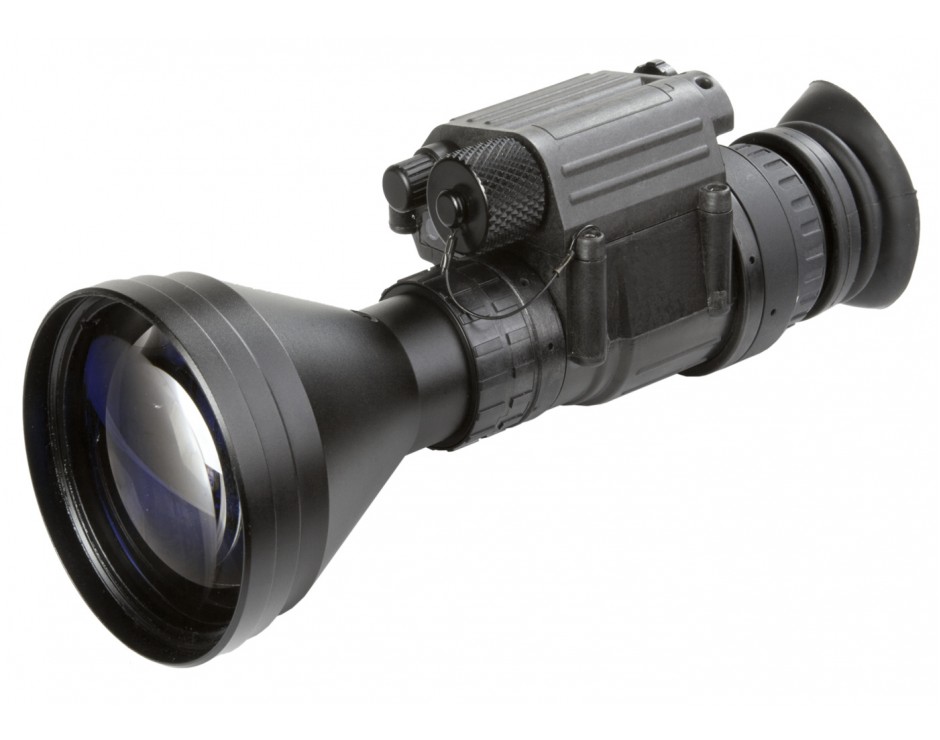

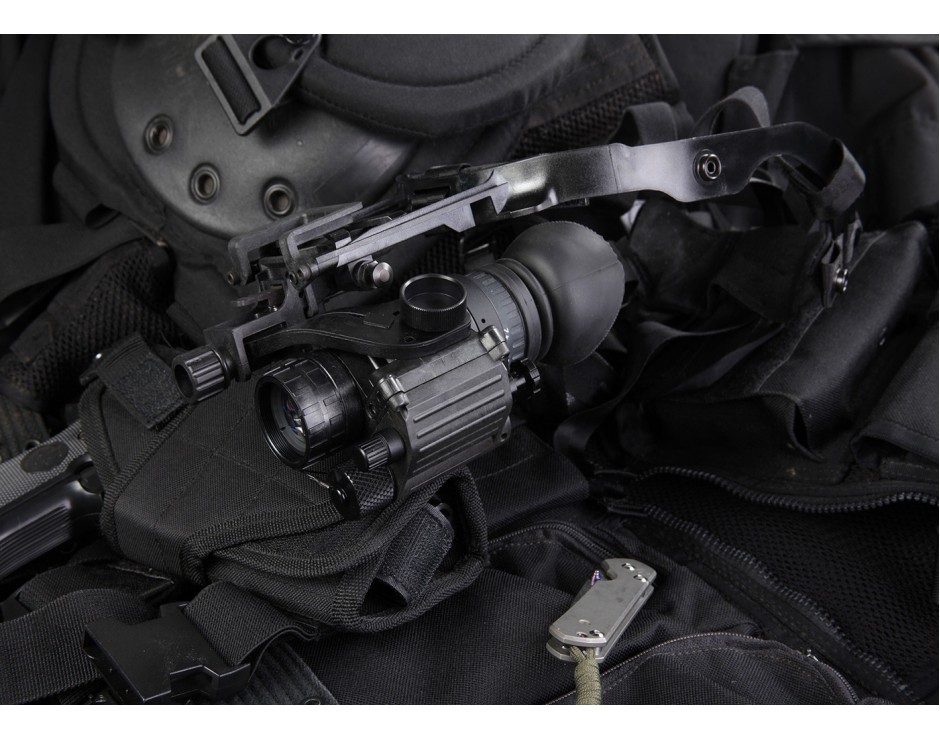

The AGM Global Vision PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS- 14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets or weapons, providing night vision capabilities to daytime optical sights. The PVS- 14 monocular conforms to 810G Military standards, and is of the highest quality form and function. The PVS-14 monocular is a full-featured unit, weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The automatic brightness control ensures a consistent, steady image by automatically adjusting the visual in real time, based on the available light in the area. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM Global Vision PVS-14 includes an array of optional accessories to support virtually any operation.

  • Compact, rugged design
  • Waterproof
  • Weapon mountable
  • Head or helmet-mountable for hands-free usage
  • Manual gain control
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • Limited 3-Year Warranty

Specifications


Image Intensifier Tube

Gen 2+ "Level 1"

Resolution

55-72 lp/mm

Field of view cleanness by zone

Gen 2 IIT NL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.

Magnification

1x (3x and 5x optional)

Lens System

26 mm; F/1.2

FOV

40°

Focus Range

0.25 m to infinity

Diopter Adjustment

-6 to +4 dpt

Led Indicators

Low battery; IR On; Excessive light conditions

Infrared Illuminator

Yes

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One AA Alkaline

Battery Life (Operating)

Up to 50 hours at 20°C

Operating Temperature Range

-51° C to +49° C (-60° F to 120° F)

Storage Temperature Range

-51° C to +85° C (-60° F to 185° F)

Weight

0.32 kg (12.4 oz)

Overall Dimensions

114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)

Package Includes

Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery
