WLAD 3B

Laser Systems

PART #WLAD-CLA3-B1

0 reviews | Write a review


Description And features

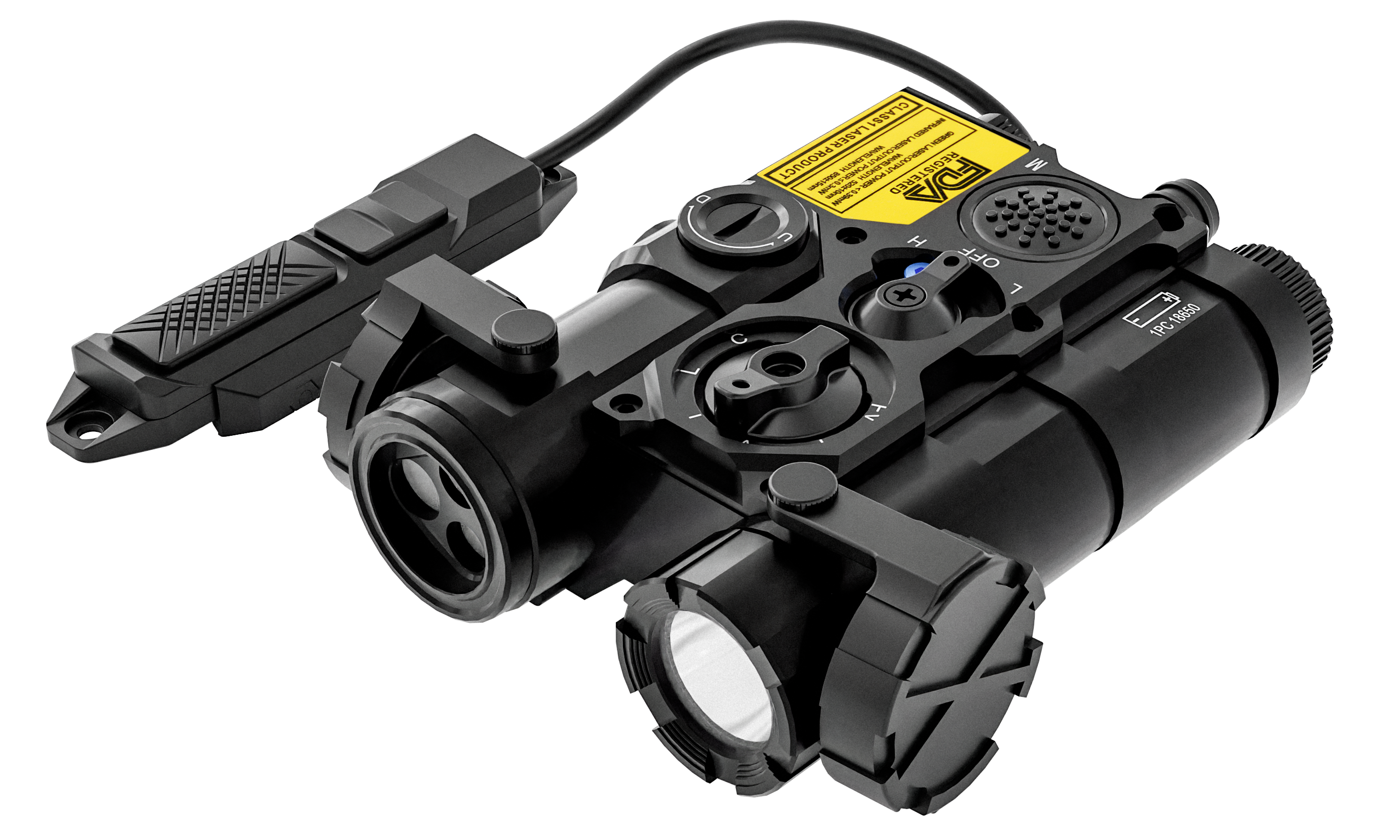

The WLAD Weapon Laser Aiming Device is a CLASS 3B laser consisting of a green visible aiming laser, a near-infrared (near-IR)
aiming laser, IR illuminator and 500 lm LED illuminator.
The function of the WLAD is to provide an operator with highly collimated aiming lasers for precision aiming and targeting visible
in low light conditions and in conjunction with night vision devices for night time applications. The focusable near-IR Illuminator
floods the area of interest with near-infrared light only visible when used with night vision devices.

Warning: California's Proposition 65



  • Rapid active target acquisition
  • True night vision compatible mode
  • High/Low output power and six function modes
  • User selectable constant wave or pulsed modes of aiming lasers
  • 500 Lumen LED flashlight
  • Tactical remote switch
  • Co-boresighted aiming lasers
  • Low base design
  • IPX8 waterproof
  • 2-Year Warranty
Package Includes
  • Aiming/Illumination Module
  • Remote Switch
  • Operation Manual
  • Soft Carrying Case
  • Clean Brush
  • Clean Cloth
Downloads
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.


Specifications


Divergence
IR LASER - 0.5+0.3 mrad, GREEN LASER - 0.5+0.3 mrad, IR ILLUMINATOR- 1-100 mrad
Class
IR LASER, GREEN LASER, IR ILLUMINATOR - 3B
Output power
IR LASER - 2±1 mW (Low) 20±5 mW (High), GREEN LASER <4 mW (Low) 10±2 mW (High), IR ILLUMINATOR 2±1 mW (Low) 20±5 mW (High)
Operating distance
IR LASER - > 400 m (Low) >2,000 m (High), GREEN LASER - > 50 m (in direct sunlight), GREEN LASER - > 400 m (Low) >2,000 m (High)
Wavelength
IR LASER - 830±15 nm, GREEN LASER - 520±10 nm, IR ILLUMINATOR - 830±15 nm
Weight
298 g ( 10.5 oz)
Dimensions
113 × 77 × 42 mm (4.3 × 3.0 × 1.5 in)
Color (housing)
Black (WLADL-3B) / Tan (WLAD-3T)
Battery Type
One 18650 Li-Ion rechargeable battery (3.7V)
Protection Level
IP68
Shockproof
1,200 G
