AGM TMAIM

Archive

PART #503TMAIMAGMDE3

0 reviews | Write a review

prod-img

Description And features

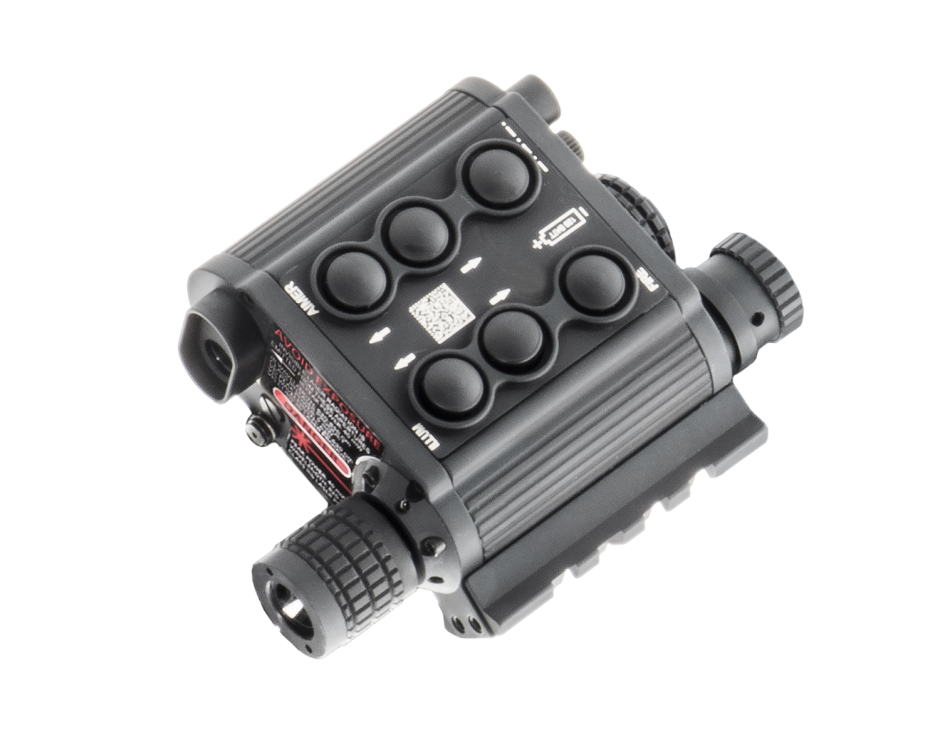

The TMAIM is a rugged and versatile Class 3b aiming solution that features a red visible laser, infrared (IR) laser, and adjustable focus IR illuminator. This device provides operators with the ability to identify and designate targets at short or long distances using visible and IR outputs, during unaided and Night Vision- assisted missions alike.

Built to perform for the most demanding users in the world’s harshest environments; the AGM TMAIM is the first choice for tactical aiming solutions.

Warning: California's Proposition 65



  • PRECISION MULTISPECTRAL OUTPUTS:

  • Visible Red Aiming Laser, near-infrared aiming laser, and adjustable focus near-infrared illuminator ouputs.
  • All outputs collimated. Single windage/elevation adjustment controls all simultaneously.
  • 256 individual output levels from 50μW to 25mW. Ability to quickly adjust across a wide range of power outputs for specific mission needs. Conserves battery and helps prevent accident “flashes.”
  • Ability to select between constant wave or pulsed mode outputs for individual user ID.
  • INTELLIGENT & RUGGED DESIGN:

  • Low Battery Indicator and Active Laser “ON” Indicator.
  • Includes two (2) remote cable switches: One for Eye Safe (Class 1) operation only, and one for High Power Modes.
  • Integrated mount attached to MIL-STD-1913 Picatinny or Weaver rails.
  • Ruggedized waterproof design is small and compact while maintaining functional control layout. Rear-facing indicators and dials ensure eyes are downrange and hands at the ready.
  • Can be activated either by remote control switch or “FIRE” button located on device. Allows for multiple shooting positions and provides and added failsafe feature.



Package Includes



  • Aiming/Illumination Module
  • Remote Switch Black
  • Remote Switch Blue
  • Operation and Maintenance
  • Manual
  • Soft Carrying Case



Downloads
Data Sheet
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Sold out

Specifications

Divergence
IR LASER - 0.5 mRad VISIBLE LASER - 0.8 mRad IR ILLUMINATOR - 1-108 mRad
Class
IR LASER - IIIb (near IR) VISIBLE LASER - IIIr IR ILLUMINATOR - IIIb (near-IR)
Output power
IR LASER - 100 μW (Low) 25 mW (High) VISIBLE LASER - 4.0 mW IR ILLUMINATOR - 500 μW (Low) 25 mW (High)
Operating distance
IR LASER - > 200 m (Low) 2,000 m (High) VISIBLE LASER - > 25 m (in direct sunlight) IR ILLUMINATOR - > 100 m (Low) >2,000 m (High)
Wavelength
IR LASER - 820 nm – 850 nm VISIBLE LASER - 620 nm – 650 nm IR ILLUMINATOR - 820 nm – 850 nm
Battery life
>10 hours in near-IR Aim Mode
Operating Temperature
-51°C to 57°C
Storage Temperature
-57°C to 85°C
Waterproof
Up to 20 m for 1 hour
Weight
0.2 kg ( 0.44 lb )
Dimensions
105 × 81 × 43 mm ( 4.1 × 3.2 × 1.7 in )
Color (housing)
Black or Tan
Battery Type
One (1) CR123 3.0VDC lithium battery
Package Includes
Aiming/Illumination Module, Remote Switch Black, Remote Switch Blue, Operation and Maintenance Manual, Soft Carrying Case
