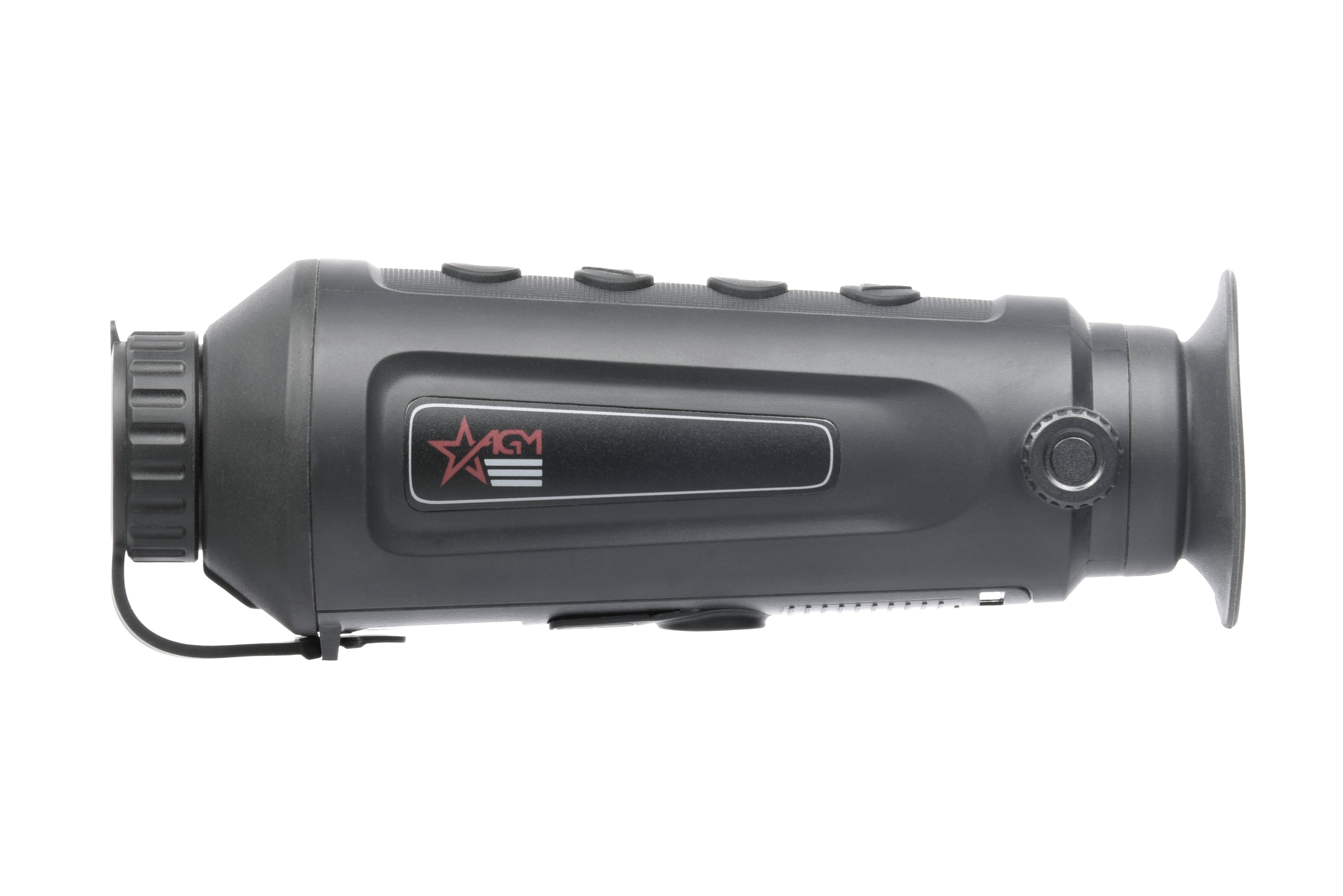

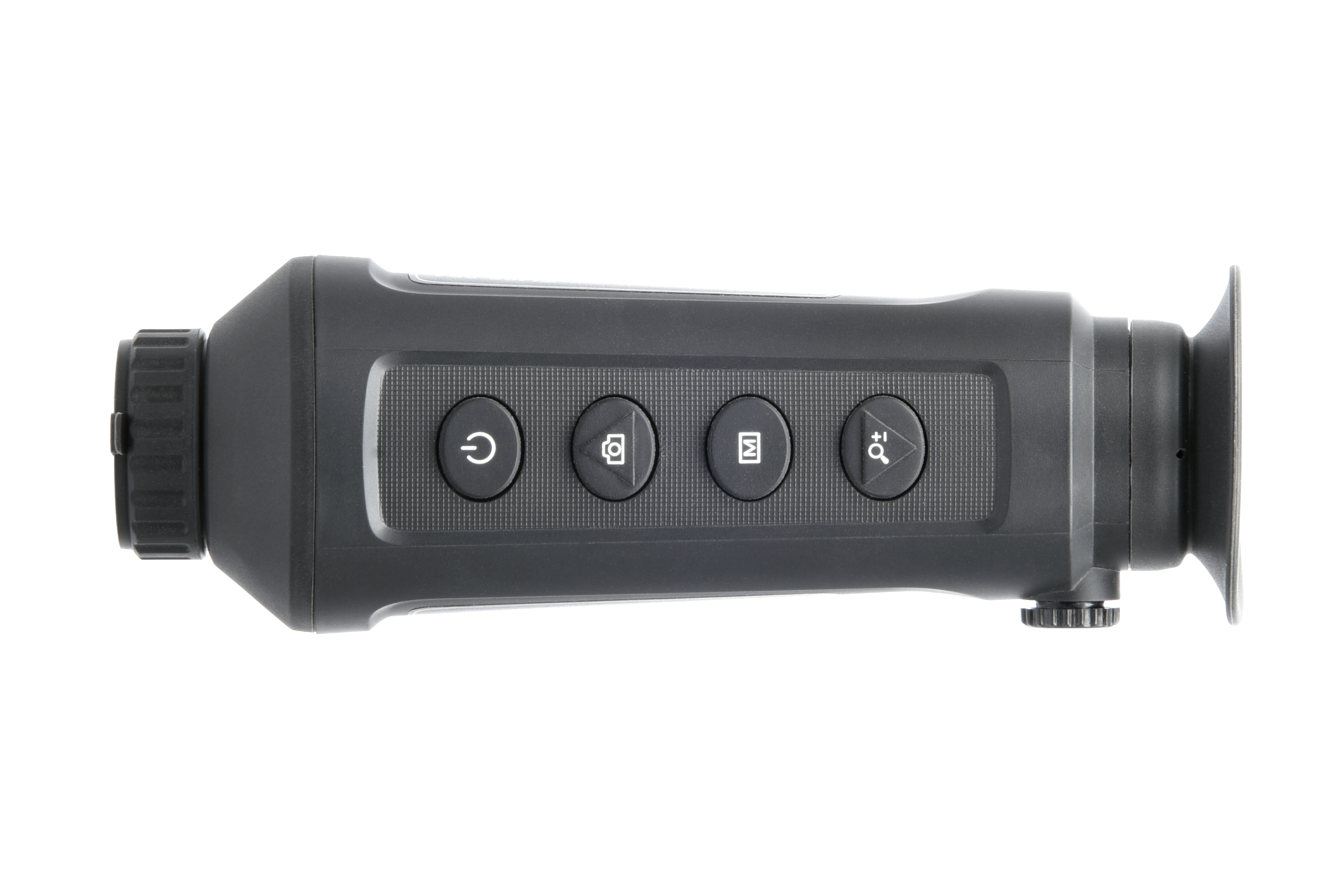

AGM Taipan TM19-384

PART #3092451003TA91

2 reviews | Write a review


Description And features


The Taipan handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.

Warning: California's Proposition 65


FUNCTIONS:

Distance Measurement:

The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

  • 384×288 resolution, 12 μm, high sensitivity detector/
  • Adaptive AGC, DDE, 3D DNR
  • 1280 × 960 resolution 0.4-inch LCOS display
  • Built-in rechargeable Lithium battery
  • More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
  • Wi-Fi hotspot
  • Type-C interface
  • Limited 3-year warranty
Characteristics

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Refresh rate: Sensor / OLED 50 Hz

Resolution: 384x288

FOV: 13.8° × 10.4°


Specifications


Interface

USB Type-C

Pixel Interval

12 μm

Multi Language menu

Yes

Drop Test Height

1.5 m (4.9 feet)

Detector type

Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband

8μm to 14μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

Sensor / OLED 50 Hz

Aperture

F1.0

Resolution

384×288

Detection Range

897 m

NETD

Less than 35 mk (@25°C), F#=1.0

Lens (focal length)

19 mm

Power

5 VDC/2 A, 1.5 W

Field of view (H × X)

13.8° × 10.4° (H × V)

Digital zoom

2×, 4×, 8×

Monitor

1280×960, 0.4 inch, LCOS

Imaging palettes

Black Hot, White Hot, Red Hot, Fusion

Storage

Built-in memory module (8 GB)

Record Video

On-board video recording

Capture Snapshot

Yes

Battery Type

Built-in rechargeable Lithium battery

Wi-Fi

Yes

CVBS Output

Yes (via USB)

Battery Operating Time

More than 7.5 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display

Yes

Weight

310 g (0.68 lb)

Working Temperature/ Humidity

-20°C to 55°C (-4°F to 131°F)

Overall Dimensions

171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in)

Protection Level

IP67
