AGM RATTLER TS35-640

AGM RATTLER TS35-640

Name: AGM RATTLER TS35-640
Brand: AGM
SKU: 3143755005R361
Price: 3294.0000 USD
Availability: InStock
Rating: 5 (2 reviews)

PART #3143755005R361

2 reviews | Write a review

Description And features

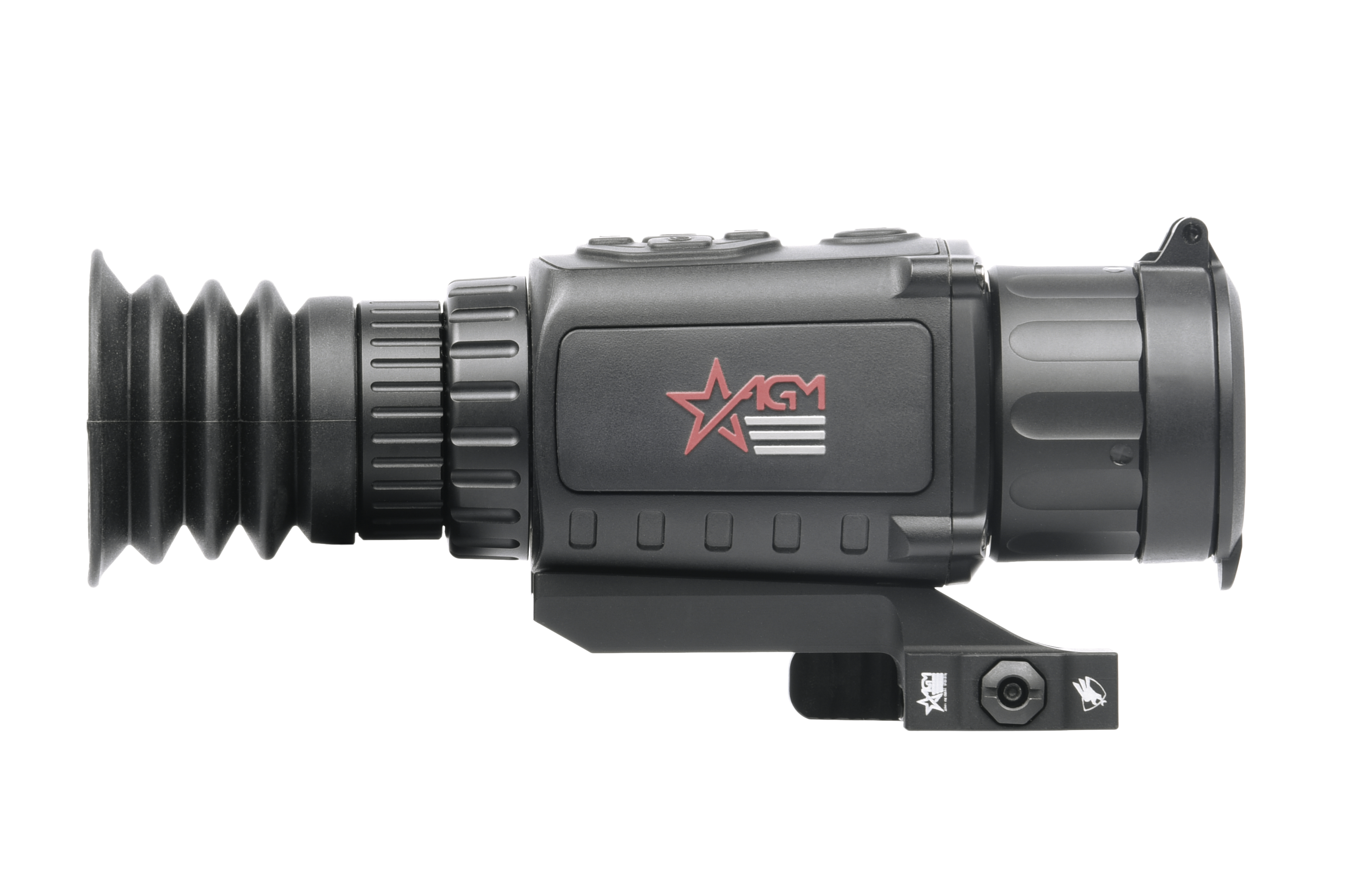

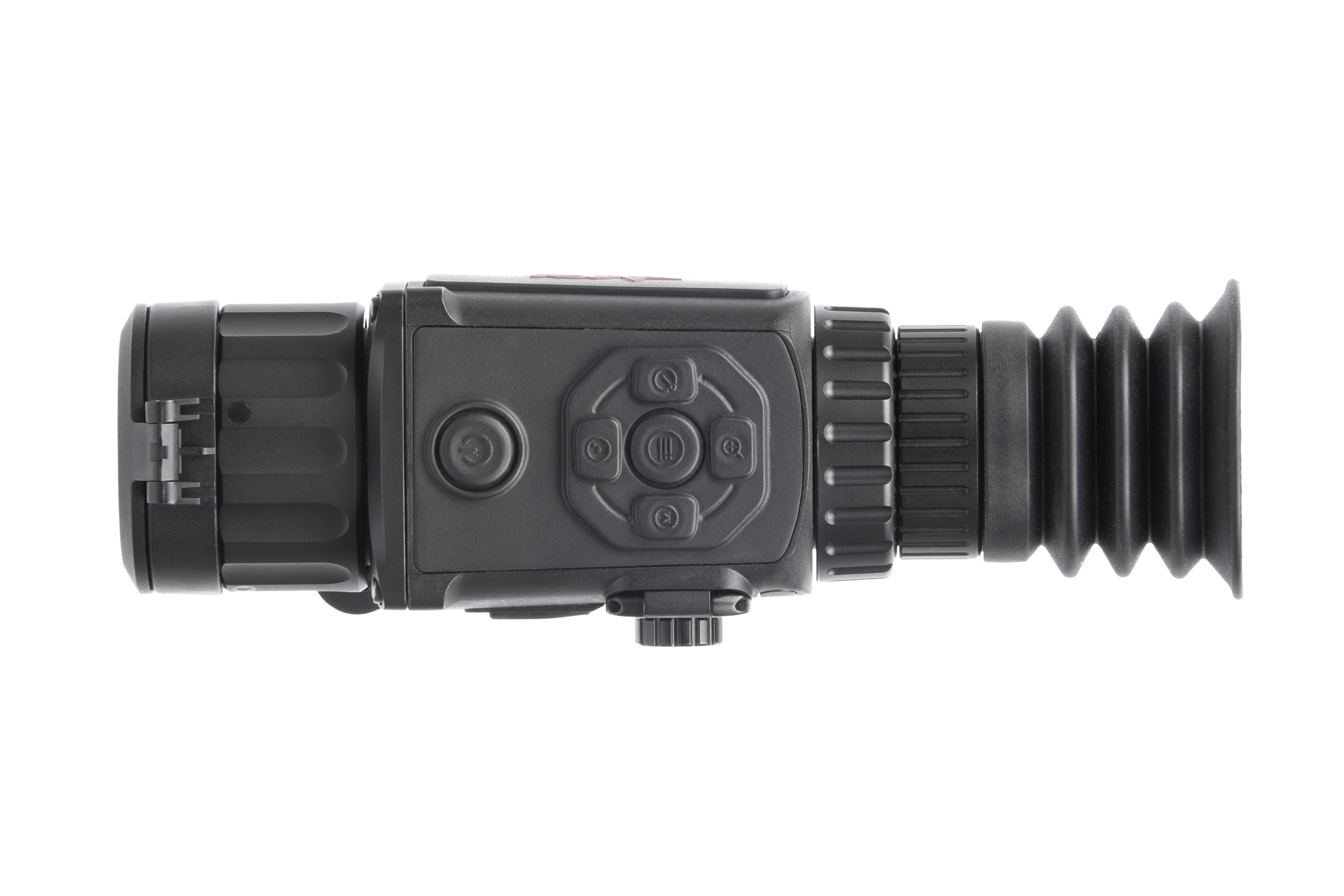

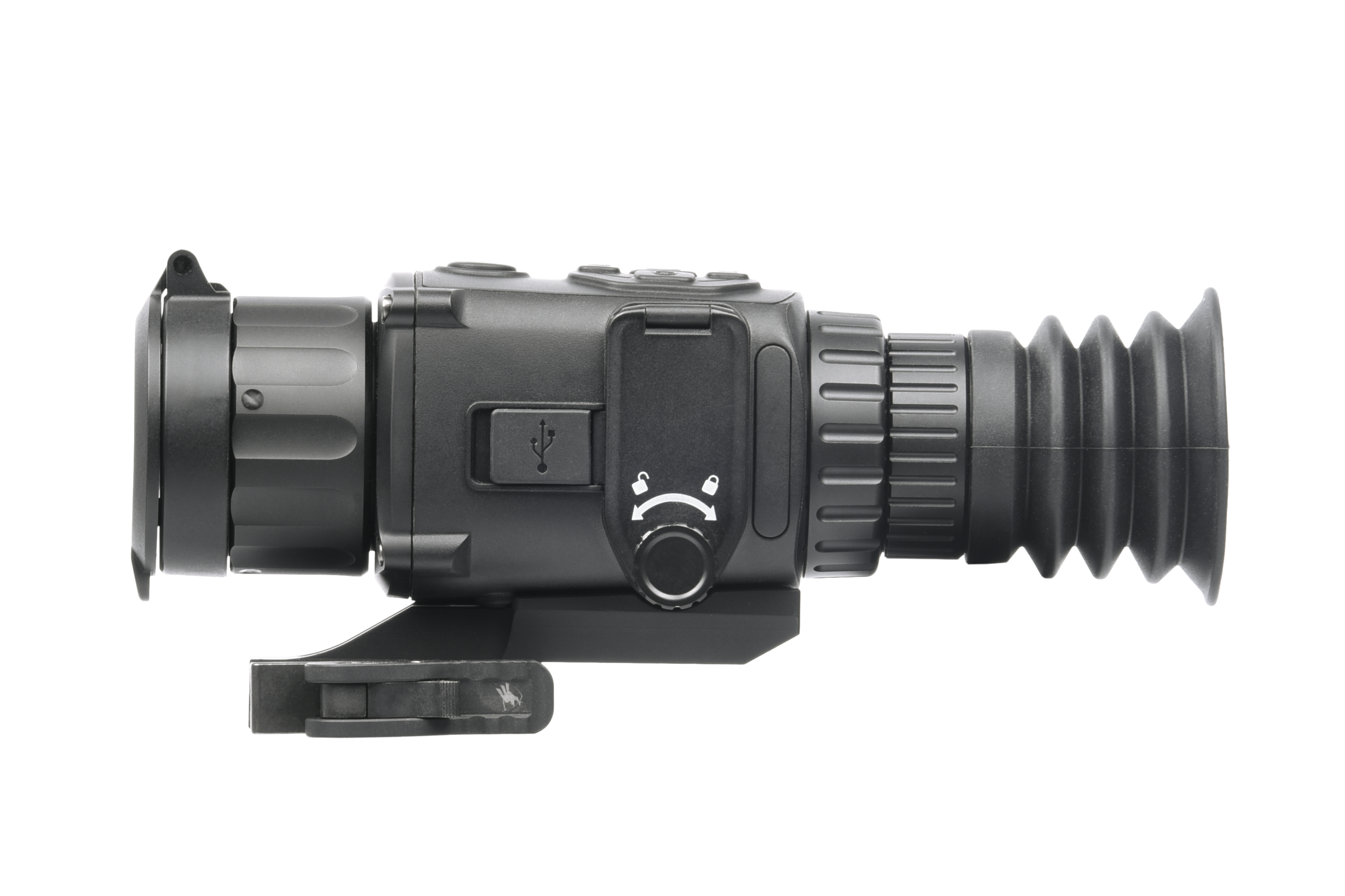

The Rattler TS35-640 is a perfect addition to any hunter's arsenal. Equipped with a 35mm germanium lens and a highly advanced 12-micron 640x512 thermal detector with sub-35mK sensitivity, this unit has a detection range of 1750 yards, and is highly adaptable to a wide range of shooting platforms. This unit’s 2X base magnification allows for a wide field of view, which many hog hunters prefer, as it allows them to see and track multiple animals in a group at once. The Rattler series of thermal scopes were specifically designed to be compact and lightweight, as this not only ensures its small footprint can be used on a multitude of shooting platforms, but also gives the series secondary use as a thermal monocular as well.

This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, 8X digital zoom, Picture-in-picture, AGM Connect app compatibility for storing and sharing images and videos, one-shot digital zeroing process, 4.5 hours of battery life on (2) CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount which quickly allows users to seamlessly shift from riflescope to monocular quickly and easily.

Warning: California's Proposition 65

640×512 thermal resolution
12 μm, 35 mK NETD high sensitivity detector (NETD <35mK)
Fast 50Hz imaging
1024×768 resolution, 0.39-inch OLED display
2x optical magnification
1x, 2x, 4x, 8x digital zoom
Digital image processing technology
Video recording and snapshot, built-in EMMC (16 GB)
Various reticle types and colors
Stadiametric rangefinder
Adjustable color palettes
Wi-Fi data transmission
Standby mode
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
5-Year warranty

Characteristics

Detector type: 12μm, Uncooled, 50 Hz

Refresh rate: 50 Hz

Resolution: 640x512

FOV: 12.5° × 10.0°

Package Includes

Mount
USB Cable
Lens Tissue
User Manual
Carrying Bag
CR 123 Batteries

Downloads

Data Sheet

User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$3,294.00

Compare

Quick Order

Add to cart

Specifications

Magnification

Palettes

Black Hot, White Hot, Red Hot, Fusion

Reticle

5 types, 4 colors, on/off

Drop Test Height

1.5m (4.9 feet)

Boresight Adjustment

Digital Controlled

Distance Measurement

Yes (Stadiametric Rangefinder)

Scene Mode

Jungle, Recognition

Picture In Picture Mode (PIP)

Yes (2× Zoom)

Video Recording

Yes

Defective Pixels Correction (DPC)

Yes

Uniformity Correction

Auto, Manual, External Correction

Digital Magnification

2x - 16x

Detector type

12μm, Uncooled, 50 Hz

Standby Mode

Yes

Resolution

640 × 512

Detection Range (6' object)

1,750m/yd

Lens system

35 mm; F/1.0

Field of view (H × X)

12.5° × 10.0°

Digital zoom

1×, 2×, 4×, 8×

Eye relief

45 mm

Display

0.39-inch, OLED, 1024×768, 50 Hz

Storage

Built-in EMMC (16 GB)

Battery Type

Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

CVBS Output

Yes (via USB)

Battery Life (Operating)

Up to 4.5 hr

External power supply

5 VDC/2 A, USB Type-C interface

Operating Temperature Range

-20°C to +55°C (-4°F to +131°F)

Degree of Protection

IP67

Weight

535 g (1.18 lb)

Overall Dimensions

187× 63 × 80 mm (7.4 × 2.5 × 3.1 in)

Package Includes

Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual

Firmware update

FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

Connect the thermal device to your PC with USB cable.
Turn on the thermal device.
Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
Turn off the device.
Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.

AGM RATTLER TS35-640 / AGM RATTLER TS50-640

Firmware Versions:
- V5.5.53_231025
  This firmware is not for Rattlers V2 versions

  # Support 10 reticles.
  # The small cross won’t overlay on the reticle when you choose the reticle type. It only appears when you adjust the XY value, to mark the reticle’s original position.
  # When a 5-second power-off countdown appears, pressing any buttons can cancel the power off operation. Accidental touches that trigger power off process won’t be a problem.
  # Support Auto FFC Prompt. Before the device performs auto FFC, a 5-second countdown will appear to notify users of the incoming frozen image.

100%
0%
0%
0%
0%
