AGM RATTLER TS25-384

AGM RATTLER TS25-384

PART #3092455004TH21

9 reviews | Write a review

Description And features

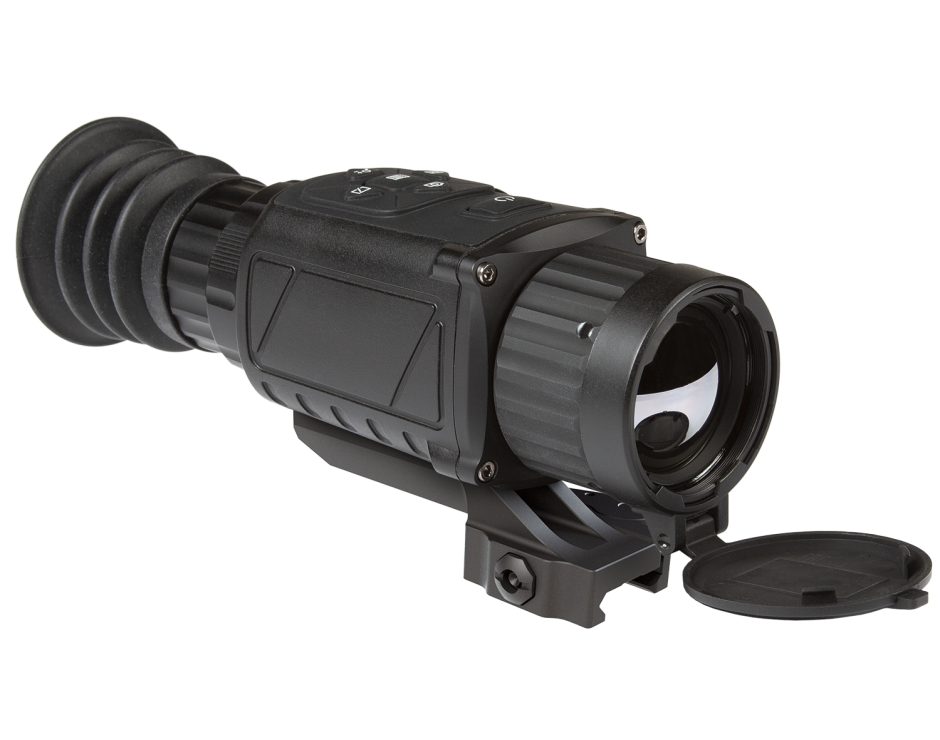

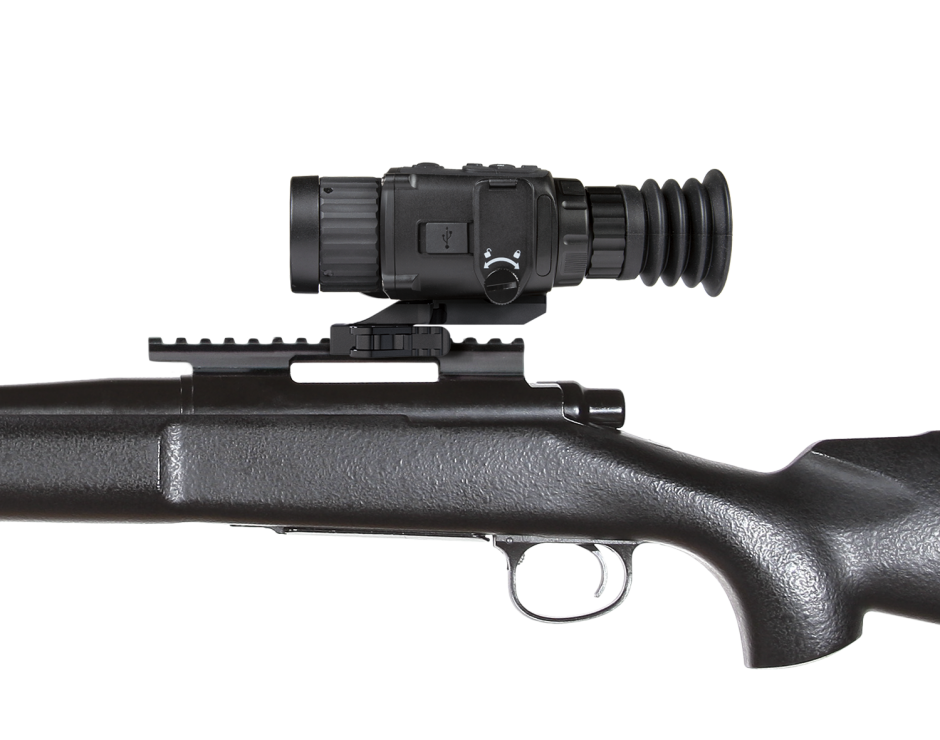

The Rattler thermal scope series are compact designs developed for 24 hours operation under any
weather and environmental conditions. A wide selection of different lenses and thermal detector
resolutions allow the customer to select the ideal instrument for tasks at different distances.
The Rattler series scopes use a high-sensitivity thermal detector and 1024×768 OLED monitor, which
provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow,
wood, camouflage, etc.

Powered with two CR123 batteries the AGM Rattler TS provides up to 4.5 hours of continuous
operation. An external 5V power bank (battery pack) can be easily connected via a USB-C connector for
a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming
and video/images recording via mobile application.

Warning: California's Proposition 65

384 × 288 thermal resolution, high sensitivity detector (NETD <35mK)
Image processing technology: Adaptive AGC, DDE, 3D DNR
1024 × 768 resolution 0.39-inch OLED display
8x digital zoom
Video recording and snapshot, built-in EMMC (16 GB)
Supports distance measurement
Picture In Picture Mode (PIP)
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
5-Year warranty

Characteristics

Detector type: 17μm, Uncooled, 50Hz

Refresh rate: Sensor 50 Hz / OLED 50 Hz

Resolution: 384x288

FOV: 14.9° x 11.2°

Package Includes

Mount
USB Cable
Lens Tissue
User Manual
Carrying Bag
CR 123 Batteries

Downloads

Data Sheet

User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$2,194.00

Compare

Quick Order

Add to cart

Specifications

Shock and vibration

750 g/ms

Picture In Picture Mode (PIP)

Yes

Digital Magnification

1.5x - 12x

Detector type

17μm, Uncooled, 50Hz

Standby Mode

Yes

Resolution

384x288

Detection Range (6' object)

1250m/yd

Snapshot

Yes

Lens system

25 mm; F/1.0

Field of view (H × X)

14.9° x 11.2°

Digital zoom

2x, 4x, 8x, PIP

Eye relief

45 mm

Imaging palettes

Jungle, Recognition

Display

0.39-inch, OLED, 1024 × 768

Storage

Built-in EMMC (16 GB)

Record Video

Yes

Battery Type

Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

Wi-Fi

Yes

Battery Life (Operating)

Up to 4.5 hr

External power supply

5V USB

Operating Temperature Range

-20°C to +55°C (-4°F to +131°F)

Degree of Protection

IP67

Weight

0.41 kg ( 0.91 lb)

Overall Dimensions

187.2 × 62.5 × 59.2 mm (7.37 × 2.46 × 2.33 in)

Magnification

1.5x

Firmware update

FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.
Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.
Download the firmware update package to your PC and unzip it.

NOTE:
Do not open the DAV or BIN file on your computer as it may corrupt the file.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.
If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

1. Connect the thermal device to your PC with USB cable.
2. Turn on the thermal device.
3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
5. Turn off the device.
6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out.
Repeat steps 4-6 for each updating file.
7. Turn off the device and disconnect it from your PC.

Before downloading the firmware files, you should be registering properly on our official website to get the best support.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.

AGM RATTLER TS25-384 / AGM RATTLER TS35-384

Firmware Versions:
- V5.5.53_230113
  - Fixed an issue when updating firmware on some devices that could result in a solid screen and buttons not working.

  - Support 1-10 levels of brightness and contrast adjustment.
  - Support m/yard display for distance measurement.
  - The Trajectory function is deleted.
  - Zeroing Profiles are added. Freeze/zoom/decimal points are added to the zero process.
  - The original position of reticle is saved without jumping when zooming.

  - Digital Zoom display (TS25-384: 1.5X - 3X - 6X - 12X; TS35-384: 2X - 4X - 8X - 16X)
- V5.5.41_220921
  - Ukrainian is added in the Language menu
- V5.5.38_220509
  Fixed the following defect:
  The black reticle shows red in the app. (be normal in the device)
- V5.5.38_220426
  - Support "Freeze" function during zeroing.
- V5.5.21_211130
  - Support auto power off function.
  - Added PIP quick start button: Press MODE button.
  - Added black color for reticles.
  - Reticles display in PIP for T-Vision and recording files.
- V5.4.26_210827
  - Support auto power off function.
  - Added PIP quick start button: Press MODE button.
  - Added black color for reticles.
  - Reticles display in PIP for T-Vision and recording files.
- V5.4.26_210604
  - The software changes were made only in the part concerning the clip-on device.
  - Reticle firmware_0A52710102_Curs_EN
  - FPGA firmware_V1.0.1_210309
- V5.4.26_210508
  - The name of Boresighting menu is changed to “Reticle”.
  - Cursor names are changed from “Boresighting” to “Reticle”.
  - Fixed the reticle color saving.
  - Introduced new reticle patterns.
  - Only Reticle 1 supports trajectory function.
- V5.4.26_210415
  - The scope or clip-on device type is automatically detected to install the corresponding software version.
  - New crosshair patterns in Boresighting menu.
  - Trajectory Correction function supports only Boresighting 1 cursor type.
  - The reticle display and crosshair color are retained after turning off the device.
  - Trajectory synchronization is maintained across various digital zoom.
- V5.4.26_210331

  - The image quality has been improved.
  - Reticles are updated.
- V5.4.26_201120
  - Repacked firmware. All the features keep the same.
- V5.4.26_201110

  - Basic version.
  - Trajectory Correction function supports all reticles.
