This product is not exportable outside of the USA
This product is not exportable outside of the USA. By adding this item to cart, I understand, agree and acknowledge the Export Policy and confirm that I am a person in the United States and do not plan to export this device
4 reviews | Write a review

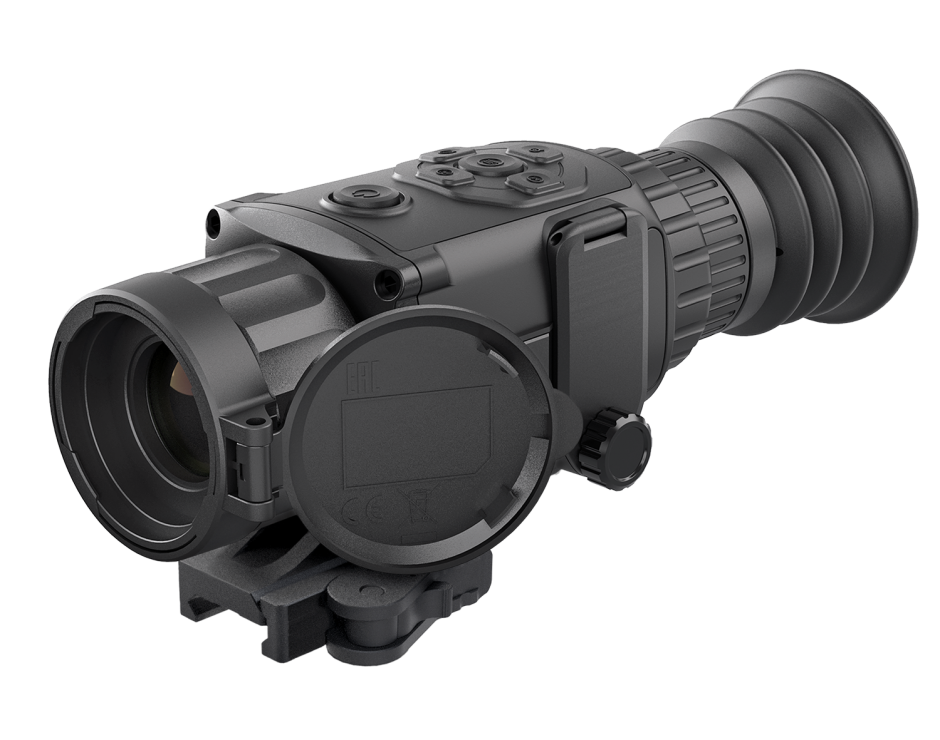

The AGM Rattler TS25-256 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for short or medium range missions.
Thermal image riflescope has 256×192, 12μm thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS-256 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
Warning: California's Proposition 65
Detector type: 12μm, Uncooled, 25 Hz
Refresh rate: 25 Hz
Resolution: 256 × 192
FOV: 7.0° × 5.3°
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
Battery life (operating at 20°С)
Up to 4.5 hr
Black Hot, White Hot, Red Hot, Fusion
5 types, 3 colors, on/off
Drop Test Height
1.5m (4.9 feet)
0.17 mil / 0.58 MOA
Yes (Stadiametric Rangefinder)
Picture In Picture Mode (PIP)
Defective Pixels Correction (DPC)
Auto, Manual, External Correction
3.5x - 28x
12μm, Uncooled, 25 Hz
256 × 192
25 mm; F/1.0
Field of view (H × X)
7.0° × 5.3°
1×, 2×, 4×, 8×
0.39-inch, OLED, 1024×768, 50 Hz
Built-in EMMC (16 GB)
Two CR123 (3V) Lithium
Yes (via USB)
External power supply
5 VDC/2 A, USB Type-C interface
Operating Temperature Range
-20°C to +55°C (-4°F to +131°F)
Degree of Protection
568 g ( 1.16 lb)
187 × 63 × 80 mm (7.4 × 2.5 × 3.1 in)
Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
