AGM RATTLER TC35-384

AGM RATTLER TC35-384

Name: AGM RATTLER TC35-384
Brand: AGM
SKU: 3092456005TC31
Price: 2965.0000 USD
Availability: InStock
Rating: 5 (2 reviews)

PART #3092456005TC31

2 reviews | Write a review

Description And features

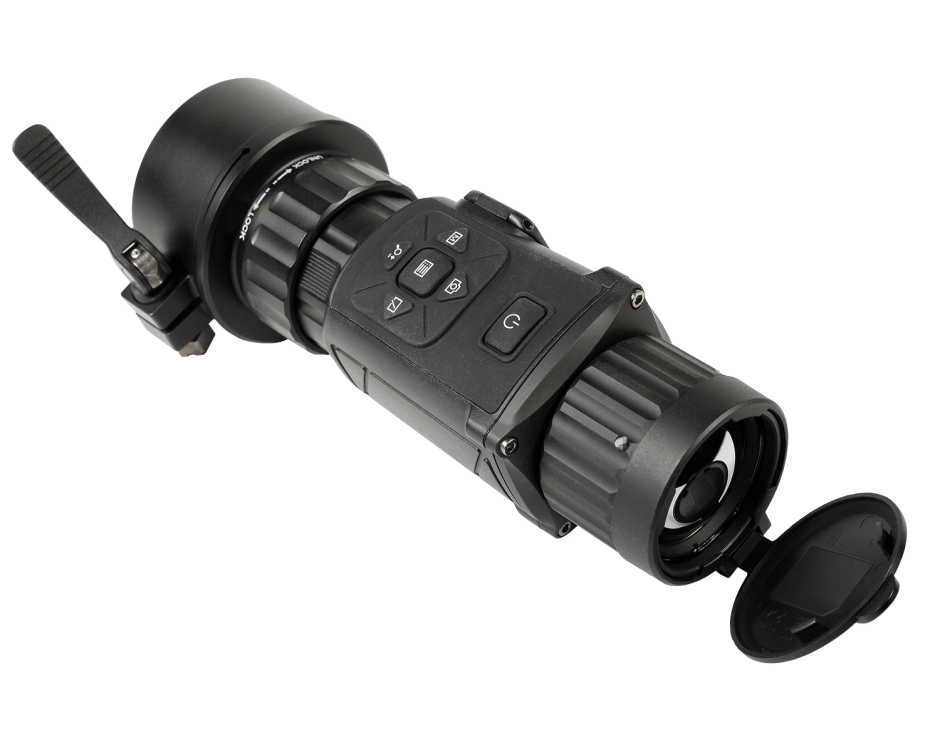

The Rattler TC is a compact thermal imaging clip-on system that allows quick transformation of the day
optics into thermal imaging device without any special tools or equipment.

Rattler TC has a high-sensitivity thermal detector and 1024×768 OLED monitor, which provides a clear
image under harsh environmental conditions like darkness, fog, smoke, dust, rain, snow, wood,
camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, overwatch, etc.

The Rattler TC can easily be attached in front of rifle scopes with magnification up to 8x for medium
range use.

Powered with two CR123 batteries the AGM Rattler TC gives up to 4.5 hours of continuous operation
time. The device is equipped with 16 GB storage for on-board video recording and image capturing.

Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile
application.

Warning: California's Proposition 65

Quick conversion of daytime optics into thermal imaging scope
384×288 thermal resolution, high sensitivity detector (NETD <35mK)
Image processing technology: Adaptive AGC, DDE, 3D DNR
748 × 561 resolution 0.39-inch OLED display
8x digital zoom
Video recording and snapshot, built-in EMMC (16 GB)
Supports distance measurement
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
5-Year warranty

Characteristics

Detector type: 17μm, Uncooled, 50Hz

Refresh rate: 50 Hz

Resolution: 384x288

Package Includes

USB Cable
Lens Tissue
User Manual
Carrying Case
CR 123 Batteries
Day Scope Adapter with Inserts

Downloads

Data Sheet

User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$2,965.00

Compare

Quick Order

Add to cart

Specifications

Shock and vibration

750 g/ms

Detector type

17μm, Uncooled, 50Hz

Standby Mode

Yes

Resolution

384x288

Detection Range (6' object)

1750m/yd

Snapshot

Yes

Lens system

35 mm; F/1.0

Field of view (H × X)

10.0° x 8.0°

Digital zoom

2x, 4x, 8x

Imaging palettes

Jungle, Recognition

Display

Yes

Storage

Built-in EMMC (16 GB)

Video/Photo Format

Yes

Battery Type

Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

Wi-Fi

Yes

Battery Life (Operating)

Up to 4.5 hr

External power supply

5V USB

Operating Temperature Range

-20°C to +55°C (-4°F to +131°F)

Degree of Protection

IP67

Weight

0.42 kg (0.93 lb)

Overall Dimensions

153.2 × 62.5 × 59.2 mm (6.03 × 2.46 × 2.33 in)

Magnification

Firmware update

FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

Connect the thermal device to your PC with USB cable.
Turn on the thermal device.
Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
Turn off the device.
Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.

AGM RATTLER TC35-384 THERMAL CLIP-ON FIRMWARE

Firmware Versions:
- V5.5.53_230113
  - Fixed an issue when updating firmware on some devices that could result in a solid screen and buttons not working.

  - Support 1-10 levels of brightness and contrast adjustment.
  - Support m/yard display for distance measurement.
- V5.5.41_220921
  - FPGA firmware V1.0.7_220423
  - New AGM UI style.
  - Support 1-10 levels for brightness and contrast adjustment.

  - Support m/yard display for distance measurement.
- V5.5.38_220509
  software changes were made only in the part concerning the riflescope device.
- V5.5.38_220426
  - Support "Freeze" function during zeroing.
- V5.5.21_211130
  - Support auto power off function.
  - Added PIP quick start button: Press MODE button.
- V5.4.26_210827
  - Repacked firmware. All the features keep the same.
- V5.4.26_210604
  - Menu is shifted to the center of the screen to avoid the block from day scope.
  - The indicator icons (battery, network, zoom) are shifted to the center of screen to avoid the block from day scope.
  - FPGA firmware_V1.0.1_210309
- V5.4.26_210508
  - Hints on the buttons action at the bottom of the screen are disabled.
  - New feature "Image Calibration" is added.
  - There is no digital zoom, reticle and trajectory function any more under clip-on mode.
- V5.4.26_210415
  - The scope or clip-on device type is automatically detected to install the corresponding software version.
  - Boresighting, Color, Trajectory functions are disabled in clip-on mode.
  - Image Calibration function is added.
- V5.4.26_210331
  - The image quality has been improved.
- V5.4.26_201120
  - Repacked firmware. All the features keep the same.
- V5.4.26_201110
  - Basic version.
  - Boresighting function in menu is enabled.
