AGM RATTLER TC19-256

AGM RATTLER TC19-256

Name: AGM RATTLER TC19-256
Brand: AGM
SKU: 3092856003TC91
Price: 1204.0000 USD
Availability: InStock
Rating: 5 (2 reviews)

PART #3092856003TC91

2 reviews | Write a review

Description And features

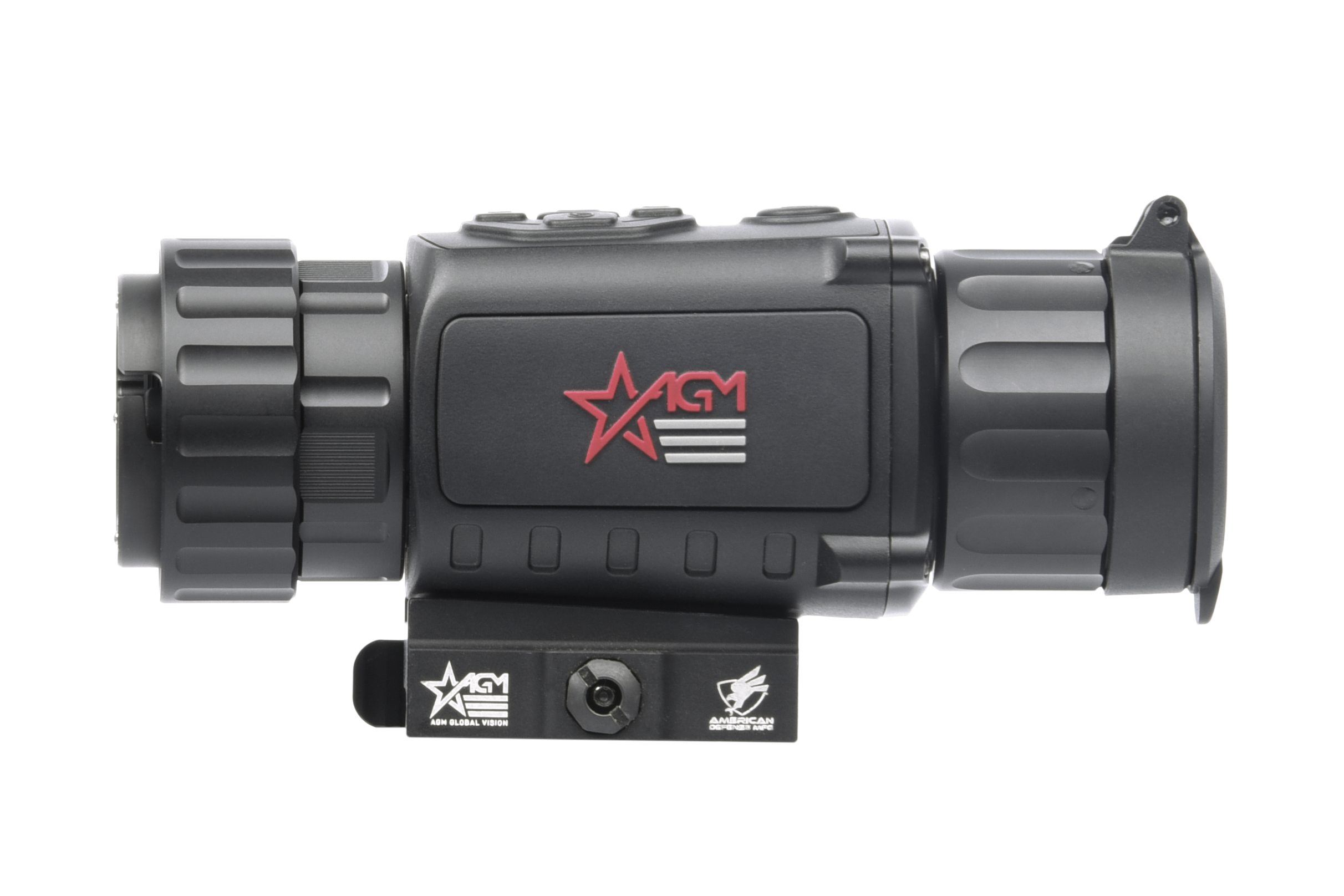

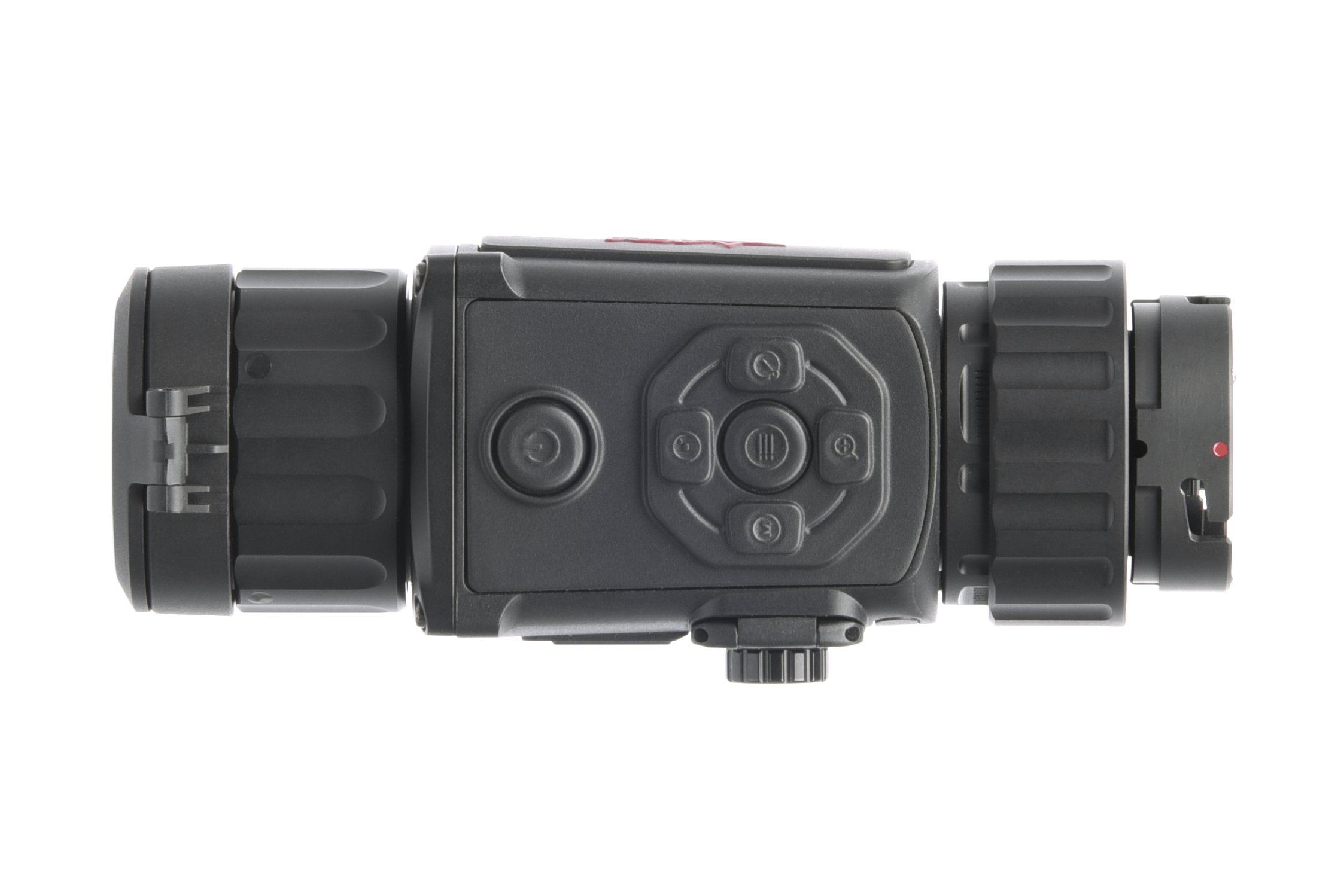

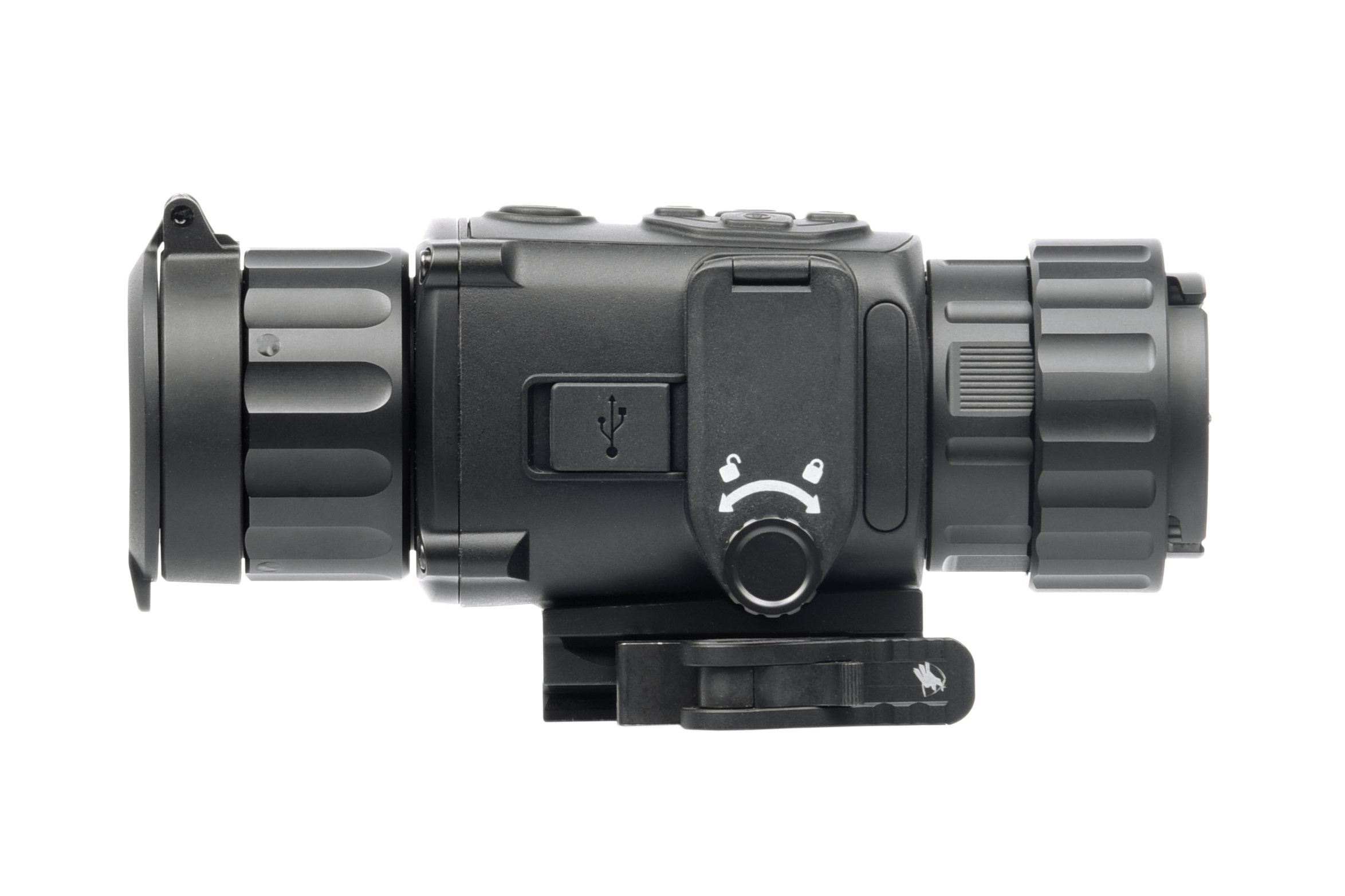

The AGM Rattler TC19-256 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment.

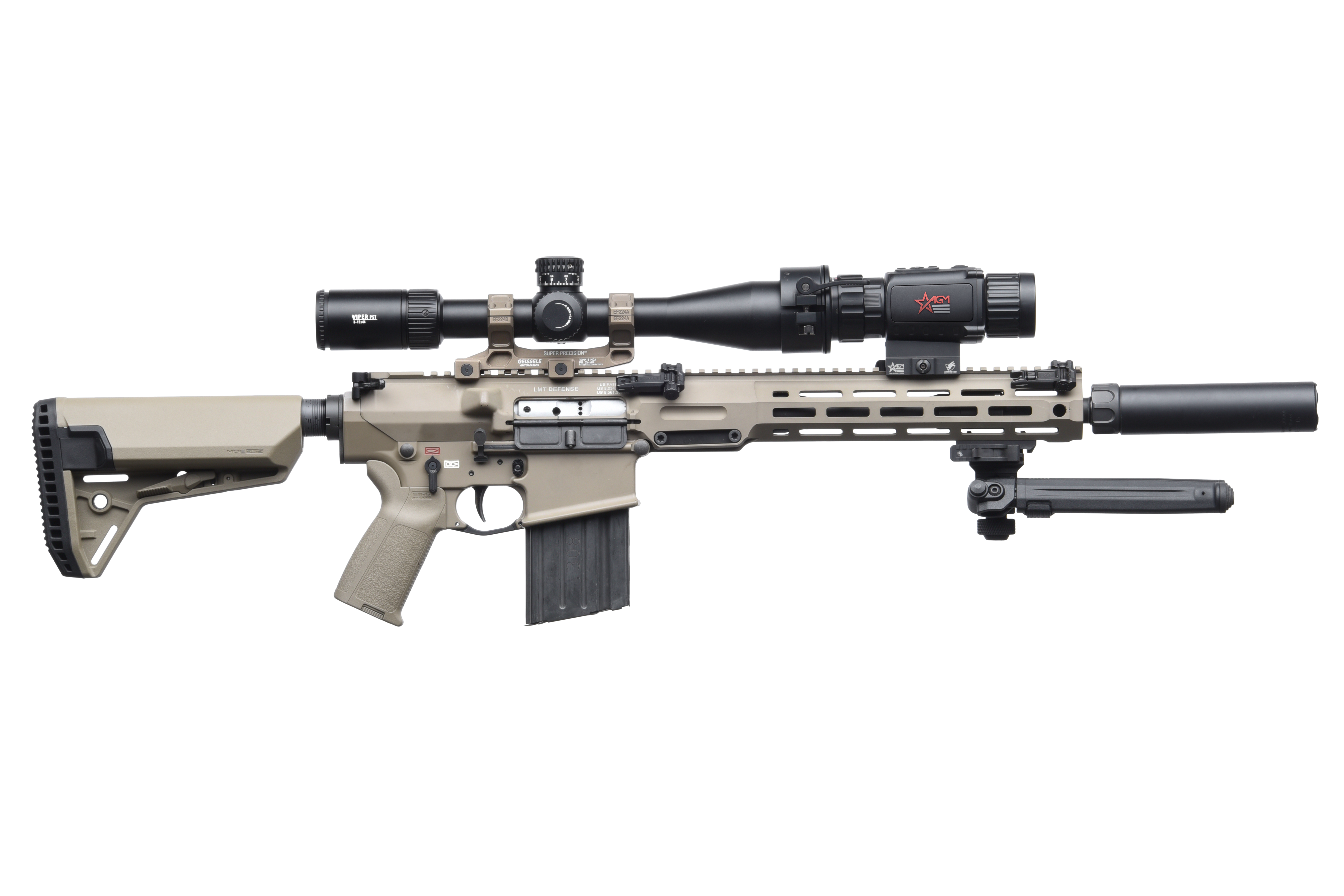

The Rattler clip-on is a perfect addition to any hunter's arsenal. Equipped with a 19mm germanium lens and a 256x192 resolution 12 micron high-sensitivity thermal sensor, this unit has a detection range of 950 yards. Rattler TC provides a clear image under harsh environmental conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The product is mainly applied to scenarios such as patrolling, hunting, overwatch, etc. The Rattler TC can easily be attached in front of day scopes with magnification up to 8x for short and medium range use.

This unit also comes packed with all the features that many Rattler users have come to expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, AGM Connect app compatibility for storing and sharing images and videos, 16 GB on-board storage, 4.5 hours of battery life on two CR123 batteries, external power capability through the unit’s USB-C plug and a high-quality American Defense Manufacturing quick detach mount.

Warning: California's Proposition 65

Quick conversion of daytime optics into thermal imaging scope
12μm high sensitivity detector (NETD <35mK)
256×192 thermal resolution
1024x768 resolution 0.39-inch OLED display
8x digital zoom
Video recording and snapshot, built-in EMMC (16 GB)
Supports distance measurement
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
3-Year warranty

Characteristics

Detector type: 12 μm VOx Uncooled Focal Plane Arrays

Refresh rate: 25 Hz

Resolution: 256 x 192

FOV: 9.2° x 6.9°

Package Includes

USB Cable
Lens Tissue
User Manual
Carrying Case
CR 123 Batteries

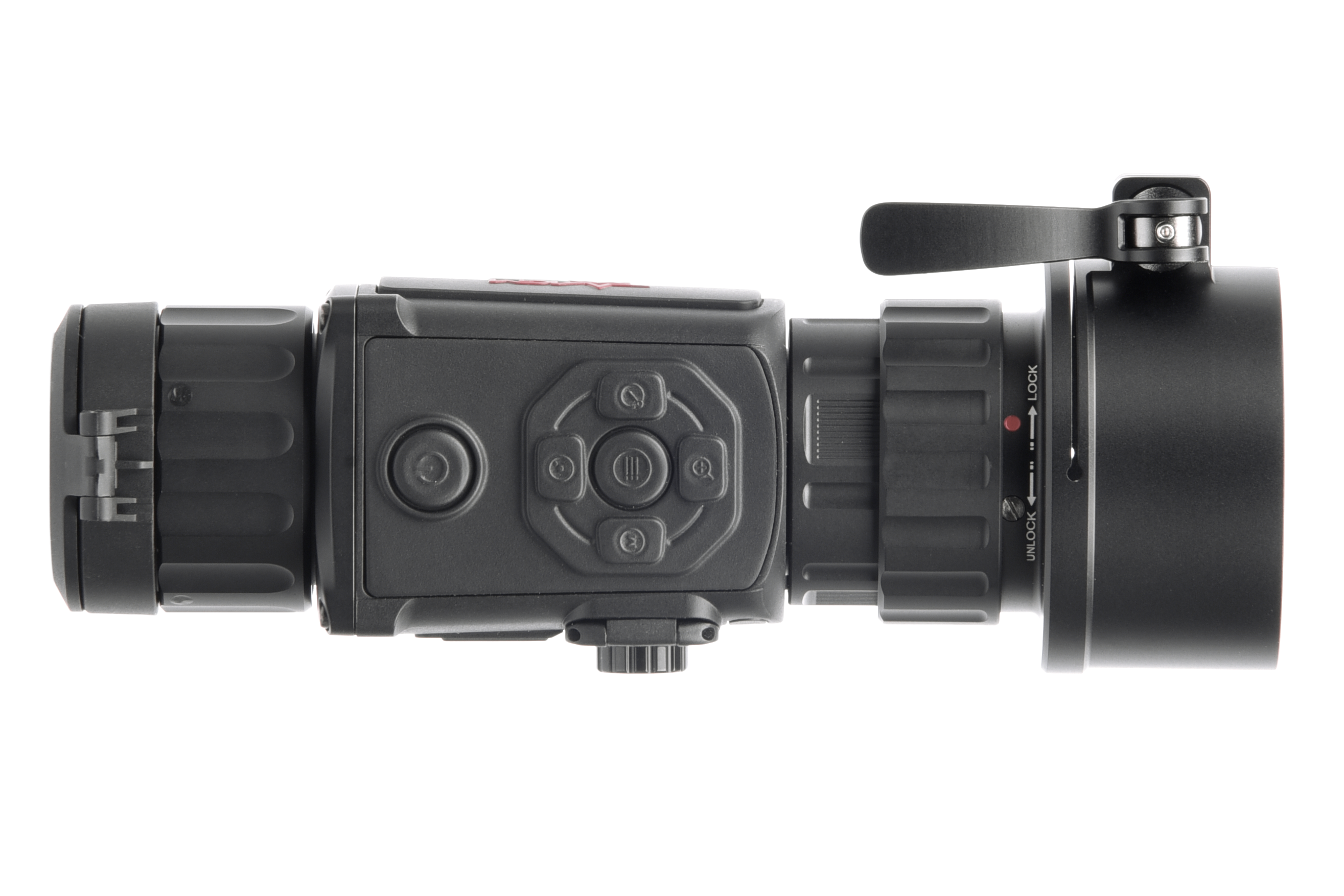

Day Scope Adapter with Inserts

Downloads

Data Sheet

User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Sold out

Specifications

Magnification

Palettes

Black Hot, White Hot, Red Hot, Fusion

Shock and vibration

750 g/ms

Exit Pupil Diameter

22 mm

Distance Measurement

Yes (Stadiometric Rangefinder)

Scene Mode

Jungle, Recognition

Detector type

12 μm VOx Uncooled Focal Plane Arrays

Response Waveband

8 μm to 14 μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

Sensor 25 Hz / OLED 50 Hz

Resolution

256 x 192

Detection Range (6' object)

950m/yd

Lens system

19 mm, F1.0

Power

5 VDC/2 A, USB Type-C interface Supports external power supply

Mounting

Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail

Field of view (H × X)

9.2° x 6.9°

Monitor

1024x768, 0.39 inch, OLED

Storage

16 GB EMMC

Record Video

On-board video recording

Capture Snapshot

Yes

Battery Type

Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

CVBS Output

Yes (via USB)

Battery Operating Time

Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)

Battery Capacity Display

Yes

Operating Temperature Range

-20°C to 55°C (-4°F to 131°F)

Overall Dimensions

153 mm × 62 mm × 59 mm (6.0 × 2.4 × 2.3 in)

Protection Level

IP67

Firmware update

FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

Connect the thermal device to your PC with USB cable.
Turn on the thermal device.
Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
Turn off the device.
Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.

AGM RATTLER TC19-256

Firmware Versions:
- V5.5.53_231025
  # Support 10 reticles.
  # When a 5-second power-off countdown appears, pressing any buttons can cancel the power off operation. Accidental touches that trigger power off process won’t be a problem.
  # The small cross won’t overlay on the reticle when you choose the reticle type. It only appears when you adjust the XY value, to mark the reticle’s original position.
