AGM RATTLER-C V2 35-384

PART #314205560205R561

0 reviews | Write a review


Description And features

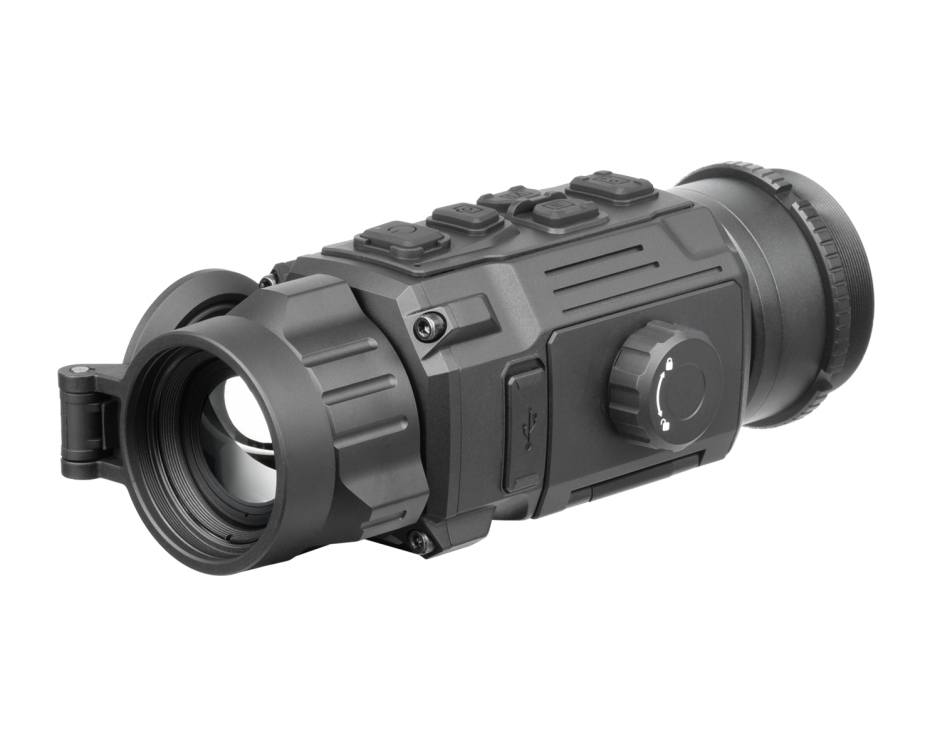

The NEW AGM Rattler-C V2 35-384 thermal clip-on boasts a industry-leading 12 micron, high-sensitivity sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 1800 yards. The Rattler-C V2 thermal clip-ons provide clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The Rattler-C V2 clip-on can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 35-384 provide up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.

Warning: California's Proposition 65


  • Quick conversion of daytime optics into thermal imaging scope
  • 12μm high-sensitivity thermal detector, NETD < 20mK
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 9 - 11 hours battery life (depending on model)
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty
Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 384 x 288

FOV: 7.5° × 5.6°

Package Includes
  • Mount
  • Two Rechargeable Battery
  • Charger
  • USB Cable
  • Lens Cloth
  • Manual
  • Carrying Case
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.


Specifications


Dimensions
184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in)
Flat Field Correction (FFC)
Auto, Manual, External Correction
Palettes
Black hot, White hot, Red hot, Fusion
Exit Pupil Diameter
22 mm
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Video Recording
Yes
Audio Recording
Yes
Detector type
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384 × 288
Detection Range (6' object)
1800 m/yd
Lens system
35 mm; F/1.0
NETD
Less than 20 mK (25°C, F# = 1.0)
Optical magnification
Field of view (H × X)
7.5° × 5.6°
Hot Track
Yes
Eye relief
10 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Capture Snapshot
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery
Wi-Fi
Yes
Battery Life (Operating)
11 h (25°C, with hotspot off)
External power supply
5 VDC, 2 A, USB Type-C
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.54 kg (1.19 lb)
Protection Level
IP67
Package Includes
Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
Focus Range
2 m to infinity

Firmware update


FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

  1. Connect the thermal device to your PC with USB cable.
  2. Turn on the thermal device.
  3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
  4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
  5. Turn off the device.
  6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
  7. Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

Please check the latest firmware. Click the FW Version to download the firmware update package.

  • AGM RATTLER V2 19-256, AGM RATTLER V2 25-256, AGM RATTLER V2 25-384, AGM RATTLER V2 35-384, AGM RATTLER V2 35-640, AGM RATTLER V2 50-640, AGM RATTLER-C V2 19-256, AGM RATTLER-C V2 35-384, AGM RATTLER-C V2 50-640

    Firmware Versions:

    • V2_5.5.110_240830


      1. Add Reboot and Restore Factory Settings function.

      (Restore all settings, including reticles and albums.)

      2. Add three new languages: Croatia, Latvia, and Indonesia.

      3. Unify button and wheel direction.

      Button model

      Close to the eyepiece button Move down/Decrease

      Close to lens button Move up/Increase

      Scroll wheel model

      Clockwise rotation Move down/Decrease

      Counterclockwise rotation Move up/Increase

      4. Add Diagnostic Log Function for collecting problem logs for analysis.

      Optimized Features:

      1. Prerecord time optimization. (Increased from 7s to 10s, default 10s)

      2. Rattler-C V2 Clip-on Model Image Calibration Optimization.

      Move 1 pixel per click.

      3. Watermark logo optimization (Enabled by default)

      4. Supports operating menus while recording a video.

      5. Add the "Sharpness" controls to the small sub-menu that contains "Brightness",


  • 0%
  • 0%
  • 0%
  • 0%
  • 0%
