AGM NVG-40 NL1

PART #14NV4122483011

0 reviews | Write a review


Description And features

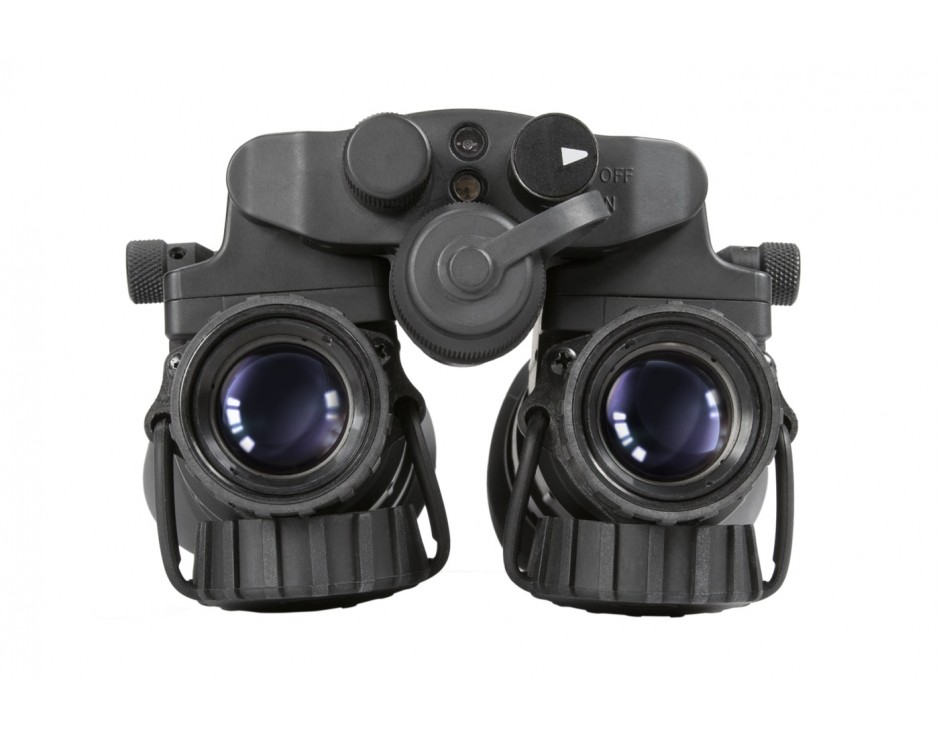

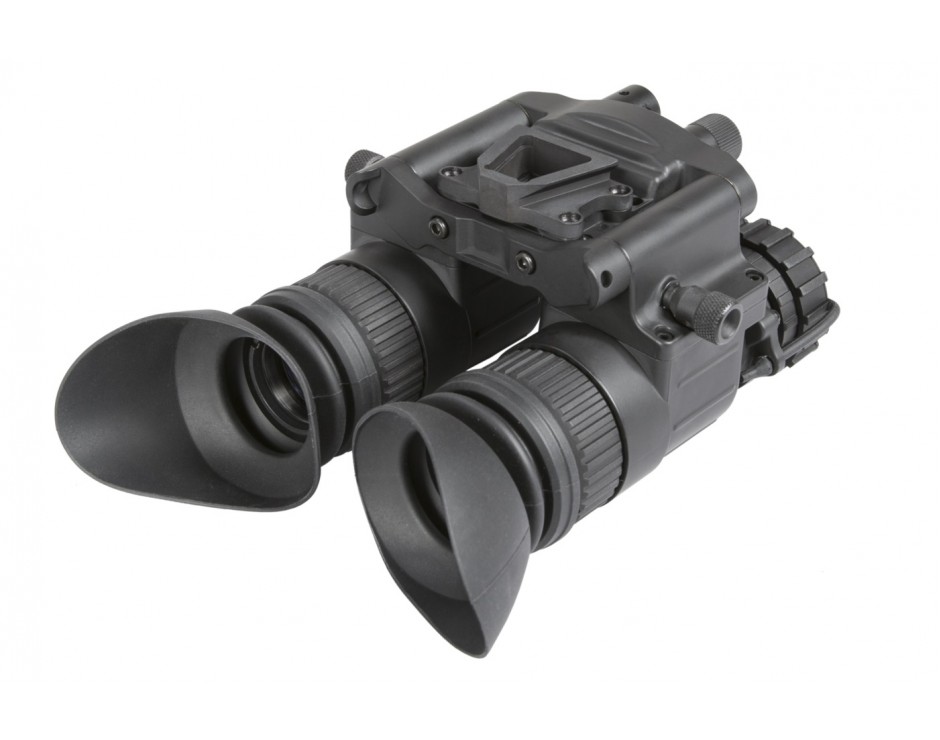

The AGM NVG-40 is a dual-channel night vision system. The NVG is made of a compact composite
housing for durability, and features advanced multi-coated optics. The device can be outfitted with
either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature
ensures that the high-quality photocathode tube is protected. The NVG is also equipped with Manual

Gain Control, which adjusts the image brightness, providing the highest possible image quality even in
changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can
run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.


NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount







Warning: California's Proposition 65



  • Redundant dual-tube design
  • True stereoscopic vision
  • Lightweight & compact
  • Waterproof
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • 3-Year warranty
Characteristics

Image Intensifier Tube: Gen 2+ "Level 1"

Magnification: 1x

Lens System: 27 mm, F/1.3

FOV: 40°

Package Includes
  • NVG Interface Shoe
  • Bayonet/Horn Interface Shoe
  • Demist Shield (2)
  • Sacrificial Window
  • Soft Carrying Case
  • Lens Tissue
  • Packing Box
  • Battery Adapter
  • User Manual
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$4,945.00

Compare

Quick Order

Add to cart


Specifications


Image Intensifier Tube
Gen 2+ "Level 1"
Resolution
51-64 lp/mm
Field of view cleanness by zone
Gen 2 IIT NL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
27 mm, F/1.3
FOV
40°
Focus Range
0.25 m to Infinity
Eye Relief
25 mm
Diopter Adjustment
-6 to +2 dpt
Led Indicators
Low Battery IR On Excessive Light Conditions
Infrared Illuminator
Yes
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Waterproof
Yes
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
645 g (1.42 lbs)
Overall Dimensions
115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
Package Includes
Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
Protection Level
IP67
