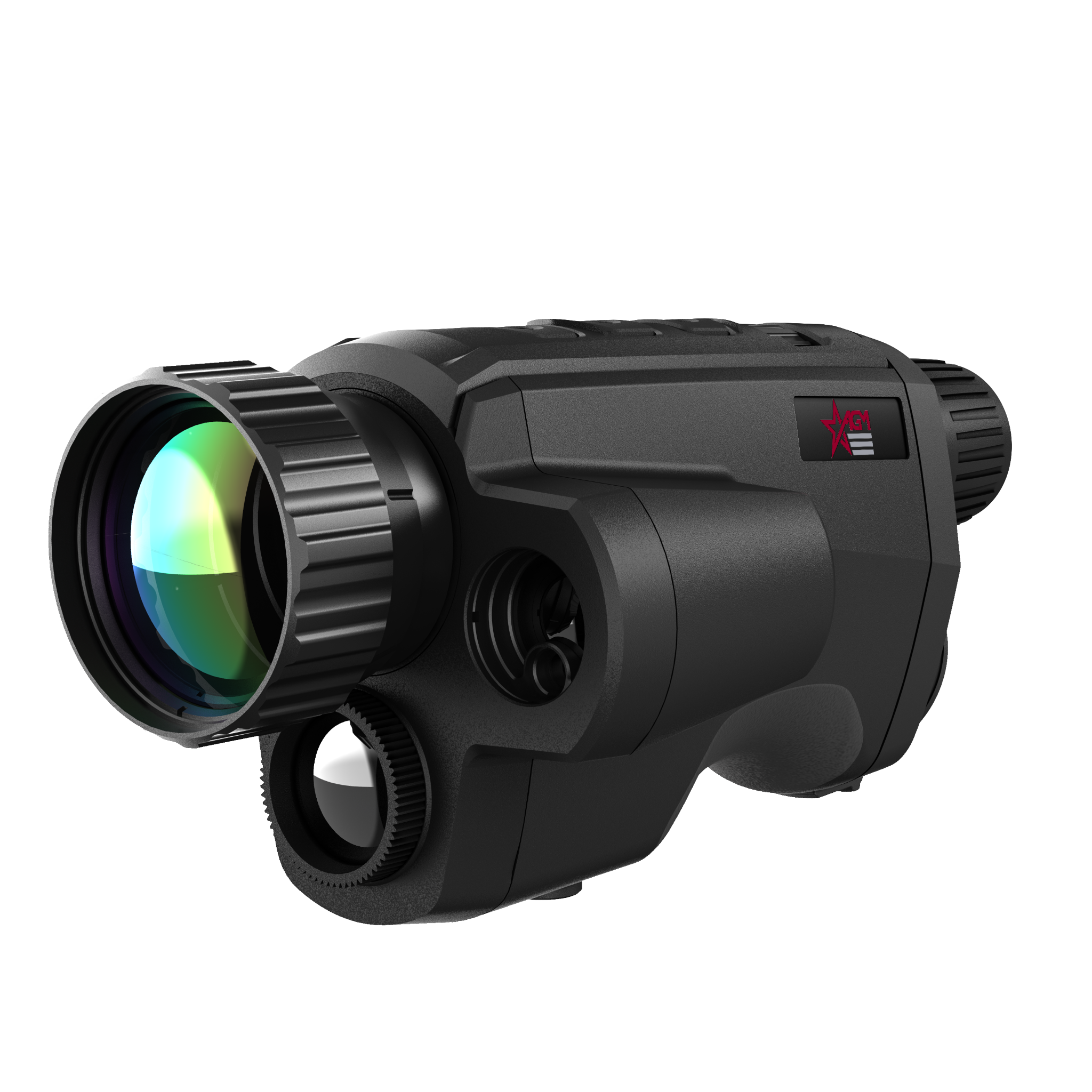

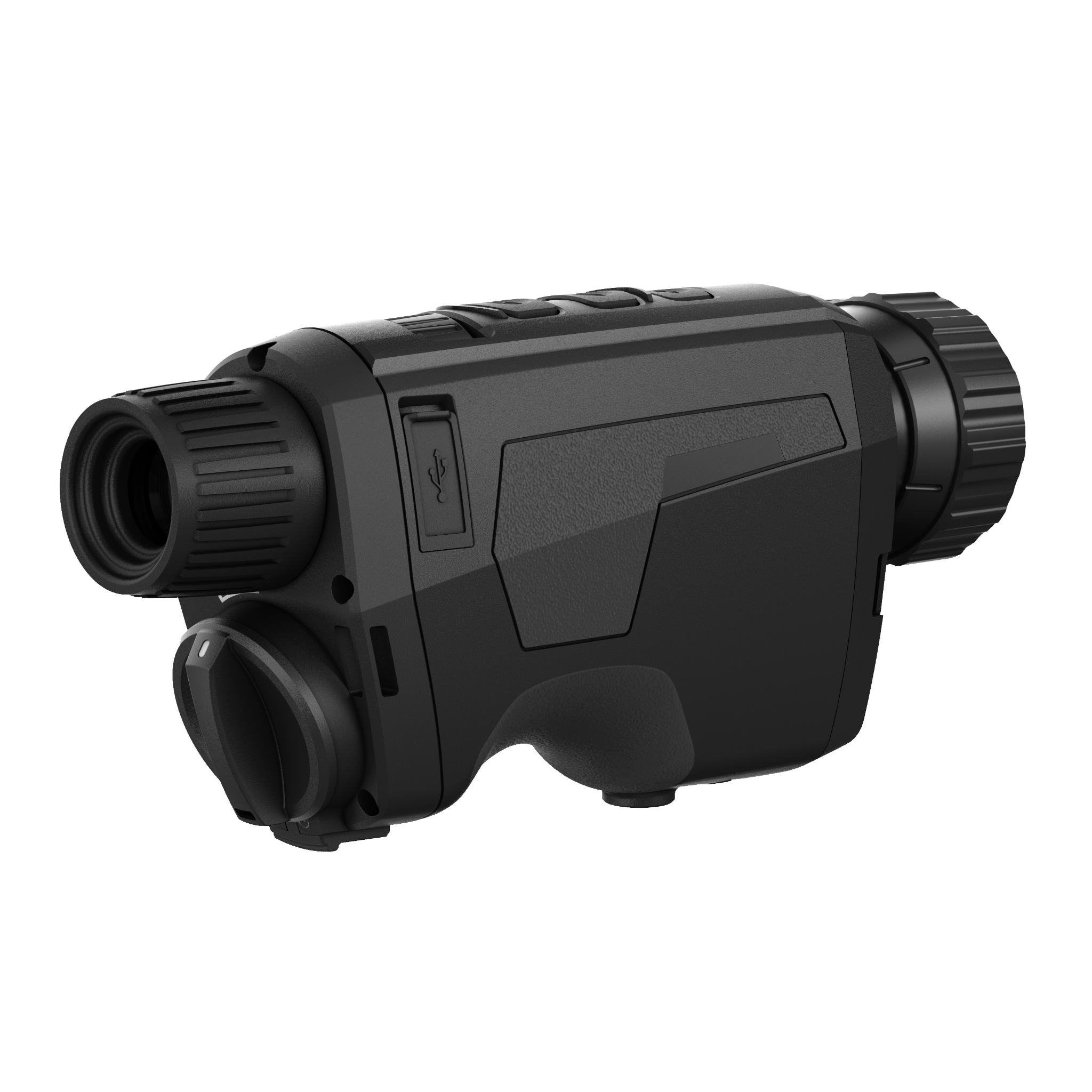

AGM FUZION LRF TM50-640

PART #7142510001306FL6

0 reviews | Write a review


Description And features


The AGM Fuzion LRF TM50-640 Thermal & Digital Day/Night Vision monocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron 640x512 thermal detector. This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1.6 miles (2600m), but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges. Unlike other thermal monoculars on the market, the Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility.

The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 50mm Germanium lens with a 1.2 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 3X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder,  up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and of course AGM’s 5 Year Transferable Warranty!

Warning: California's Proposition 65

  • Bi-spectrum image fusion and object highlight
  • Detail enhancement and target recognition
  • Selection of thermal view channel, visible light channel, or both them combined
  • 12 μm, 35 mK NETD high sensitivity thermal detector
  • Fast 50Hz imaging
  • 1x, 2x, 4x, 8x digital zoom
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 1920×1080 Optical resolution
  • Eye-safe laser rangefinder
  • 1024×768 resolution, 0.39-inch OLED display
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Wi-Fi hotspot
  • Standby mode
  • Up to 5 hours continuous running
  • Waterproof
  • 5-Year Warranty
Characteristics

Detector type: 12 μm VOx Uncooled Focal Plane Arrays

Refresh rate: 50 Hz

Resolution: 640x512

FOV: 8.8° × 7°

Package Includes
  • Rubber eyepiece
  • 18650 Rechargeable Battery 2x
  • USB Cable
  • Battery Charger
  • Power Adapter
  • Lens Cloth
  • User Manual
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$3,844.00

Compare

Quick Order

Add to cart


Specifications


Thermal Lens Focal Length
50 mm
Digital Zoom
1x, 2x, 4x, 8x
Detection Range
2,600 m/yd
Palettes
Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Optical Magnification
3x – 24x
Dimensions
184 × 87 × 74 mm (7.2 × 3.4 × 2.9 in)
Weight (w/o batteries)
548g (1.15 Ib)
Working Temperature
-20°C to 55°C (-4°F to 131°F)
Distance Measurement
905 nm
Scene Mode
Jungle, Recognition
Hotspot
Yes
Detector type
12 μm VOx Uncooled Focal Plane Arrays
Response Waveband
8 μm to 14 μm
Optical Image Sensor
400-1000 nm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Aperture
F1.2
Resolution
640 × 512
Laser Wavelength
Class 1
Power
5 VDC/2 A, USB Type-C interface Supports external power supply
Field of view (H × X)
8.8° × 7°
Monitor
Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Storage
16 GB EMMC
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
One 18650 rechargeable battery (removable)
CVBS Output
Yes (via USB)
Battery Operating Time
Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display
Yes
Protection Level
IP67 (Waterproof)

Firmware update


FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

  1. Connect the thermal device to your PC with USB cable.
  2. Turn on the thermal device.
  3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
  4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
  5. Turn off the device.
  6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
  7. Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

Please check the latest firmware. Click the FW Version to download the firmware update package.

  • AGM FUZION LRF TM50-640

    Firmware Versions:

    • V5.5.39_220525

      - Fixed the following defects:  The scanner becomes laggy as time goes by.
