  • AGM CLARION 384

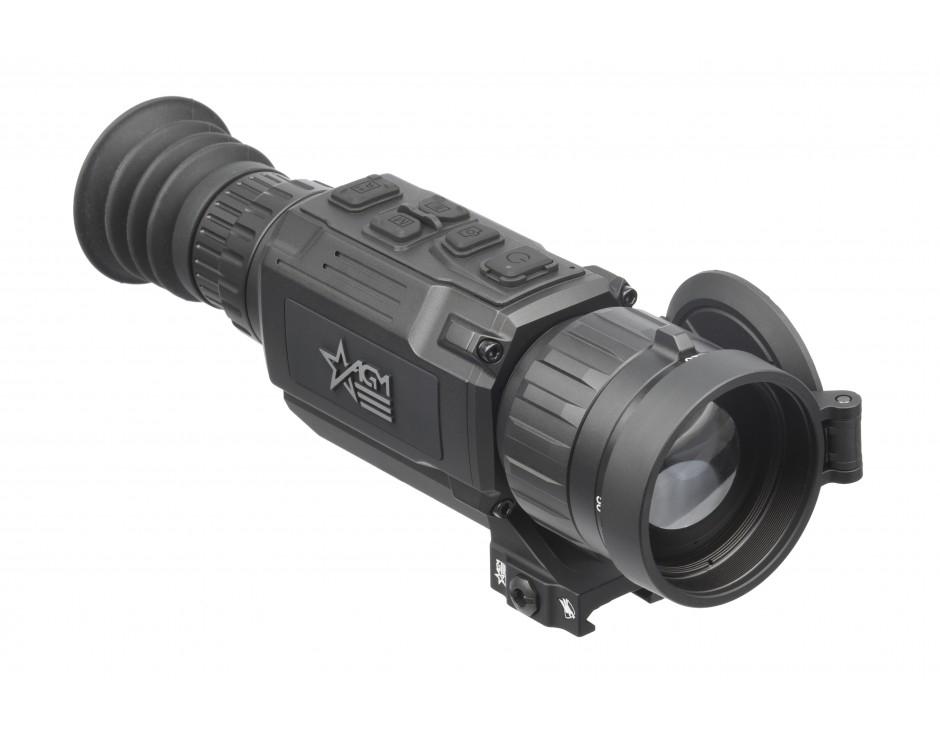

AGM CLARION 384

PART #CLAR25-384

0 reviews | Write a review


Description And features


The NEW Clarion dual base magnification thermal scope is one of the most technologically advanced thermal scopes in the world. The new Clarion scopes were meticulously designed to solve one of the biggest problems many night hunters face, which is selecting which lens size/sensor configuration will provide the optical base magnification and field of view for each hunter’s primary application. The Clarion alleviates this concern by incorporating a dual-lens optical system that has the ability to mechanically alternate between a 25mm lens or a 50mm lens. This feature alters the base magnification and field of view with no degradation of the image resolution!

With the Clarion 384, Night Hunters can now use the benefits of a 25mm lens with a base magnification of 2x and a wider FOV (10.5° × 7.9° or 53 ft @ 100 yards) then quickly switch to a 50mm lens with a base magnification of 4.5x and a narrower FOV (5.3° × 4.0° or 27 ft @ 100 yards) to really make sure your positive identification and shot placement is on point!

This dual base magnification flexibility is a new evolution in electro-optics and it will provide hunters with the versatility to optimize their optic for the specific geography and animals which they are hunting whether it be hogs in the eastern fields, or coyotes in the western deserts!

This new design is also paired with the most sensitive thermal sensor temperature rating in its class, coming it at a mind-bending sub-20 milikelvin.

Although the Clarion implements an advanced new optical system, they didn’t cut any corners with any of the design elements that hunters have come to expect from the AGM brand, including: high-quality 384x288 12-micron thermal sensor, removable rechargeable battery, up to 11 hours of continuous battery life on a single charge (2 batteries included), 10 internal reticle options, 5 different customizable zeroing profiles, 10 different brightness and contrast settings, wifi hotspot capability, built-in recording w/sound and image capture storage, AGM Connect app compatibility, 4 different reticle colors, 4 color palettes, 5 image sharpness settings and a high-quality American Defense mount which work well with both AR and bolt-action shooting platforms.


Warning: California's Proposition 65

  • Dual focus objective lens - 25mm/50mm
  • 12μm thermal detector
  • Superior sub-20 milikelvin thermal sensitivity
  • Fast 50Hz imaging
  • High resolution OLED display
  • Adjustable color palettes
  • Various reticle types and colors
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (16 GB)
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Stadiametric rangefinder
  • Standby mode
  • 11 hours battery life (depending on model)
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty
Characteristics

Detector type: 12μm VOx Uncooled Focal Plane Array

Refresh rate: 50 Hz

Resolution: 384 x 288

Base Magnification: 2× - 16× / 4.5× - 36×

FOV: 10.5° × 7.9° / 5.3° × 4.0°

Package Includes



  • Mount
  • Two Rechargeable Batteries
  • Battery Charger
  • USB Cable
  • Lens Cloth
  • Owners Manual
  • Carrying Case
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.


Specifications


Dimensions
241 × 73 × 67 mm (9.5 × 2.9 × 2.6 in)
Palettes
Black hot, White hot, Red hot, Fusion
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes
Magnification
2× - 16× / 4.5× - 36×
Detector type
12μm VOx Uncooled Focal Plane Array
FFC (Flat Field Correction)
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384 × 288
Detection Range (6' object)
1200 m/yd / 2600 m/yd
Lens system
25 mm; F0.8 / 50 mm; F1.0
NETD
Less than 20 mK (25°C, F# = 1.0)
Protection level
IP67
Field of view (H × X)
10.5° × 7.9° / 5.3° × 4.0°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 diopters
Focusing range
4 m to infinity / 10 m to infinity
Hot Track
Yes
Eye relief
45 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Capture Snapshot
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery
Wi-Fi
Yes
Battery Life (Operating)
≥ 11 h (25°C, hotspot off)
External power supply
5 VDC, 2 A, USB Type-C
Weight
0.75 kg (1.65 lb)
Package Includes
Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case

Firmware update


FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

  1. Connect the thermal device to your PC with USB cable.
  2. Turn on the thermal device.
  3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
  4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
  5. Turn off the device.
  6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
  7. Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

Please check the latest firmware. Click the FW Version to download the firmware update package.

  • AGM CLARION 384, AGM CLARION 640

    Firmware Versions:

    • V5.5.88_240401

      1. Brightness Adjustment on AGM Connect APP


      2. Burning Prevention Optimization

      V5.5.88 allows the burning prevention is enabled by default.


      3. Lithuanian is added as one of the system languages in V5.5.88.



      4. Focal Length Display on Zeroing Interface

      focal length of the device is displayed on the zeroing interface.
