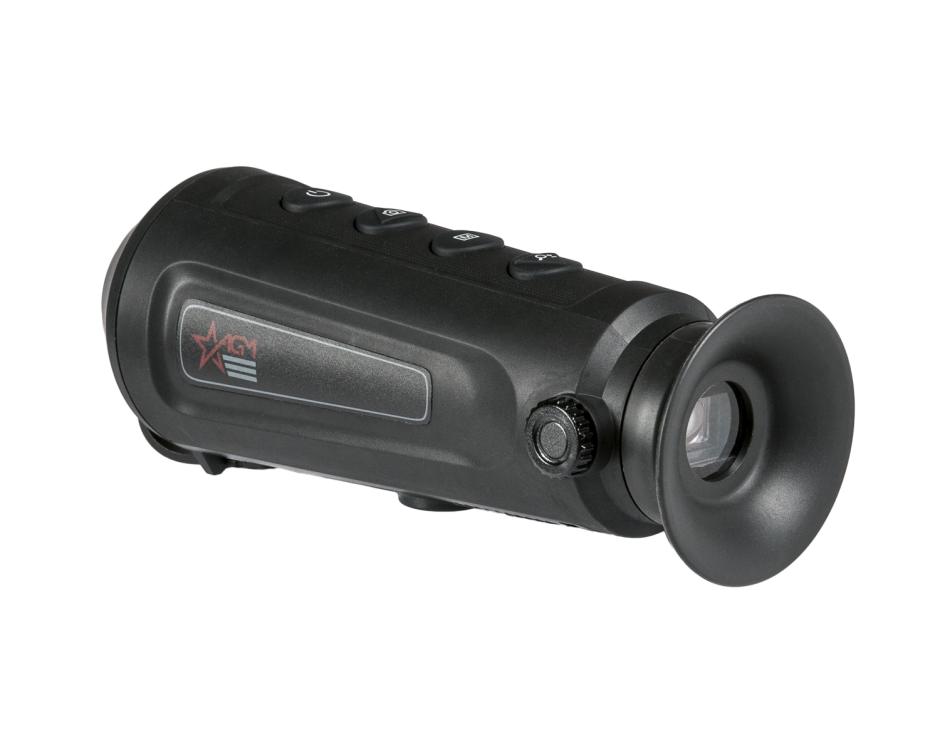

The Asp-Micro handheld observational thermal monocular is equipped with a 160×120 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, criminal seizing, hiking, travel, and hunting, etc.
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Device supports pallet switch and distance measurement.
Built-in memory module supports video recording/snapshot capturing.
Device supports 1×, 2×, and 4× digital zoom.
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
Warning: California's Proposition 65
Detector type: Vanadium Oxide Uncooled Focal Plane Arrays
Refresh rate: Sensor 25 Hz / OLED 50 Hz
FOV: 15.61° × 11.74° (H × V)
Vanadium Oxide Uncooled Focal Plane Arrays
8μm to 14μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Sensor 25 Hz / OLED 50 Hz
(Vehicles: 1.4×4.0m) - 153yd (Humans: 1.8×0.5m) - 50yd
(Vehicles: 1.4×4.0m) - 611yd (Humans: 1.8×0.5m) - 199yd
(Vehicles: 1.4×4.0m) - 76yd (Humans: 1.8×0.5m) - 25yd
less than 35 mk (@25°C), F#=1.1
Lens (focal length)
Field of view (H × X)
15.61° × 11.74° (H × V)
1×, 2×, 4×
720×540, 0.2 inch, LCOS
Built-in memory module (8 GB)
On-board video recording
Built-in rechargeable Lithium battery
Battery Operating Time
More than 7 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display
5 VDC/2 A, 1.5 W, USB Type-C Interface
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
270 g (0.6 lb)
161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
