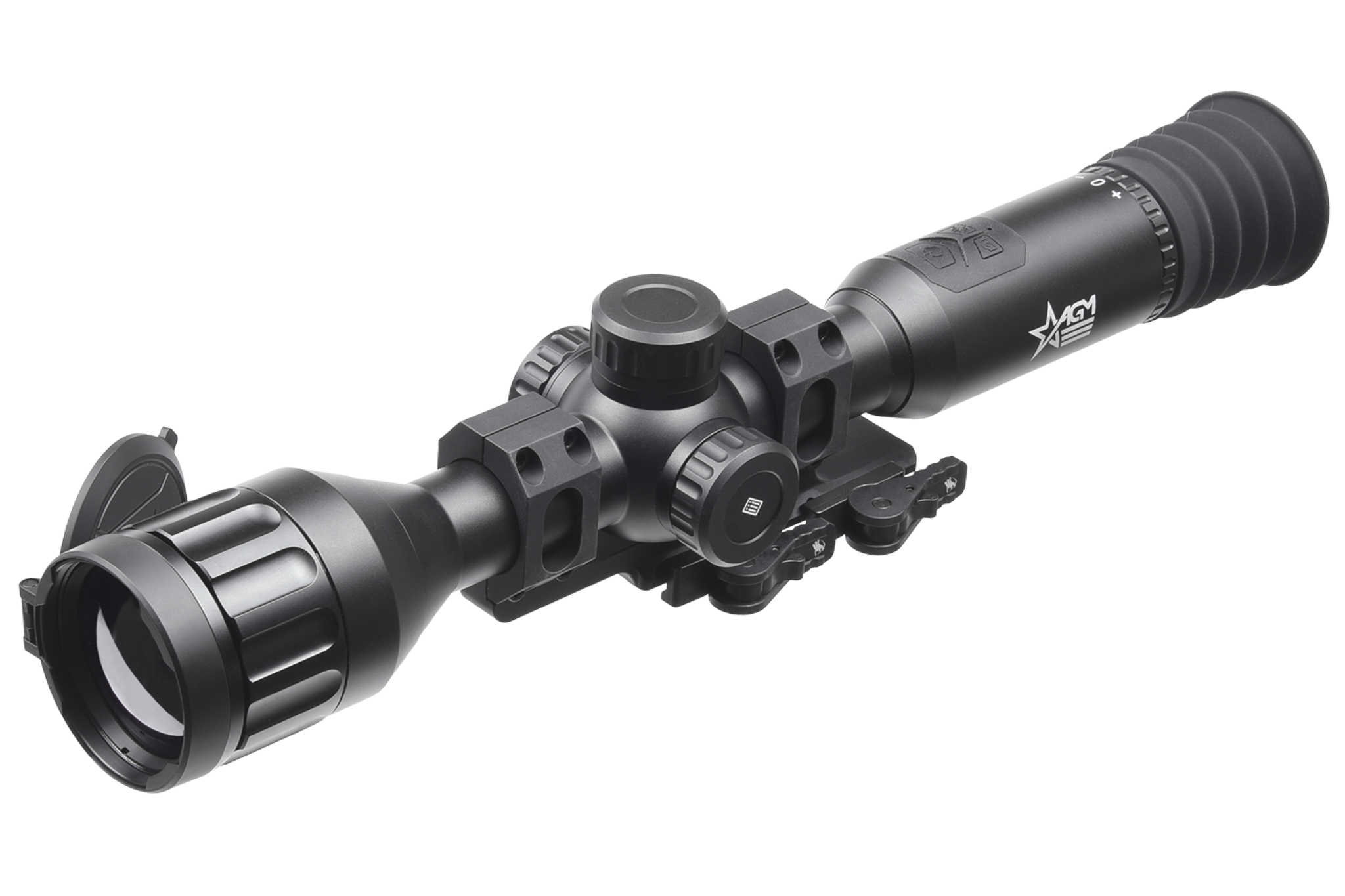

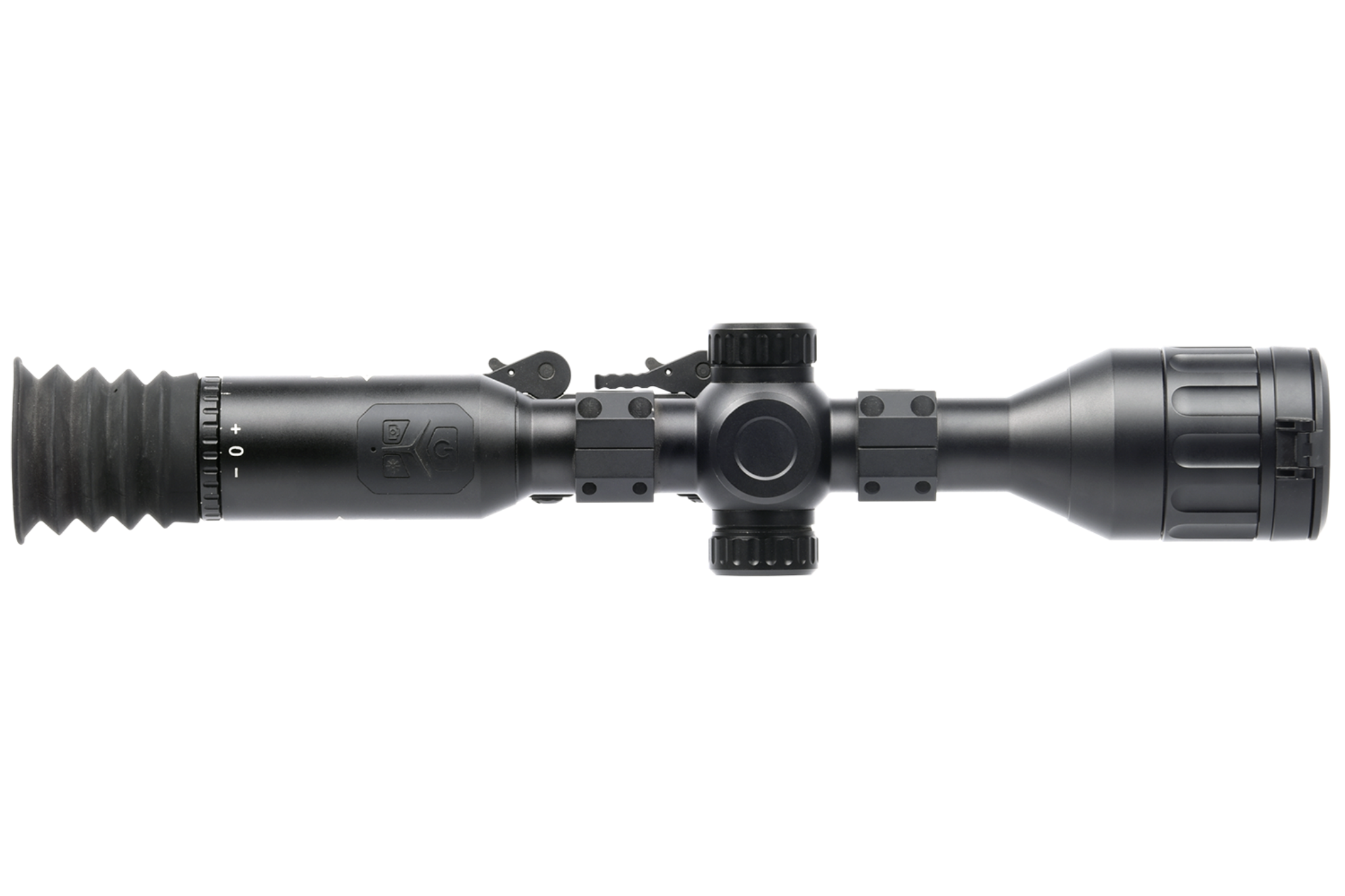

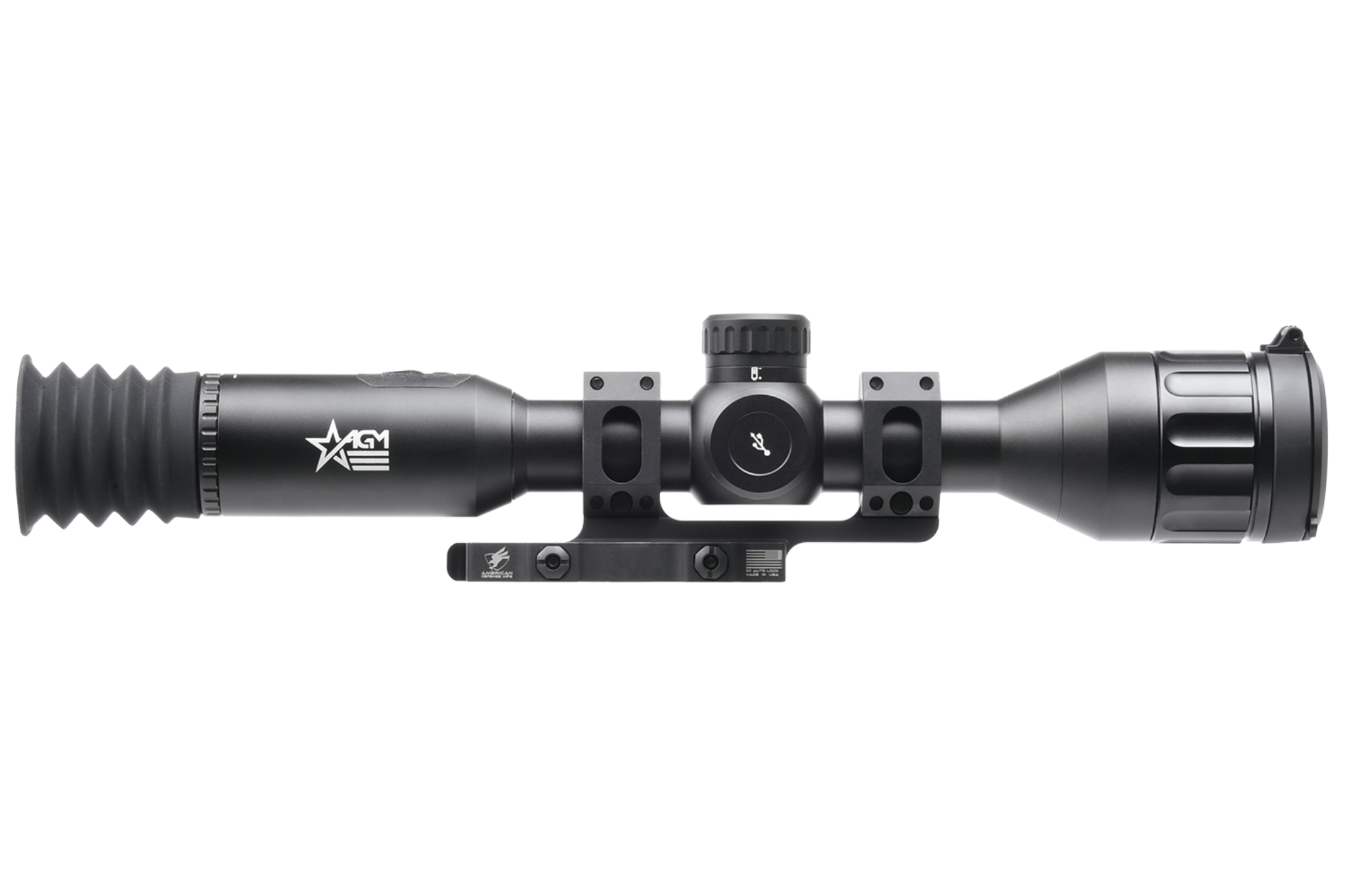

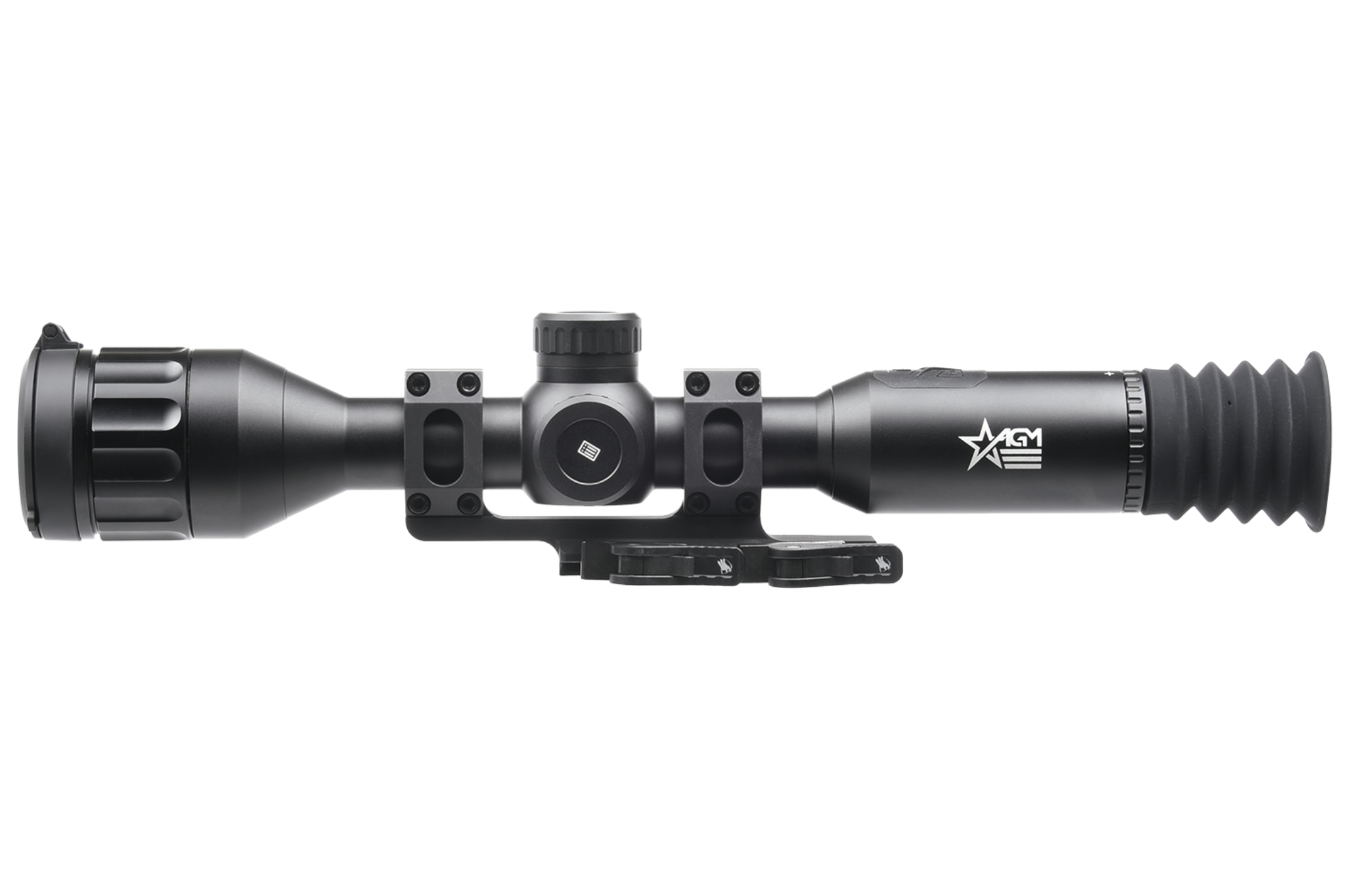

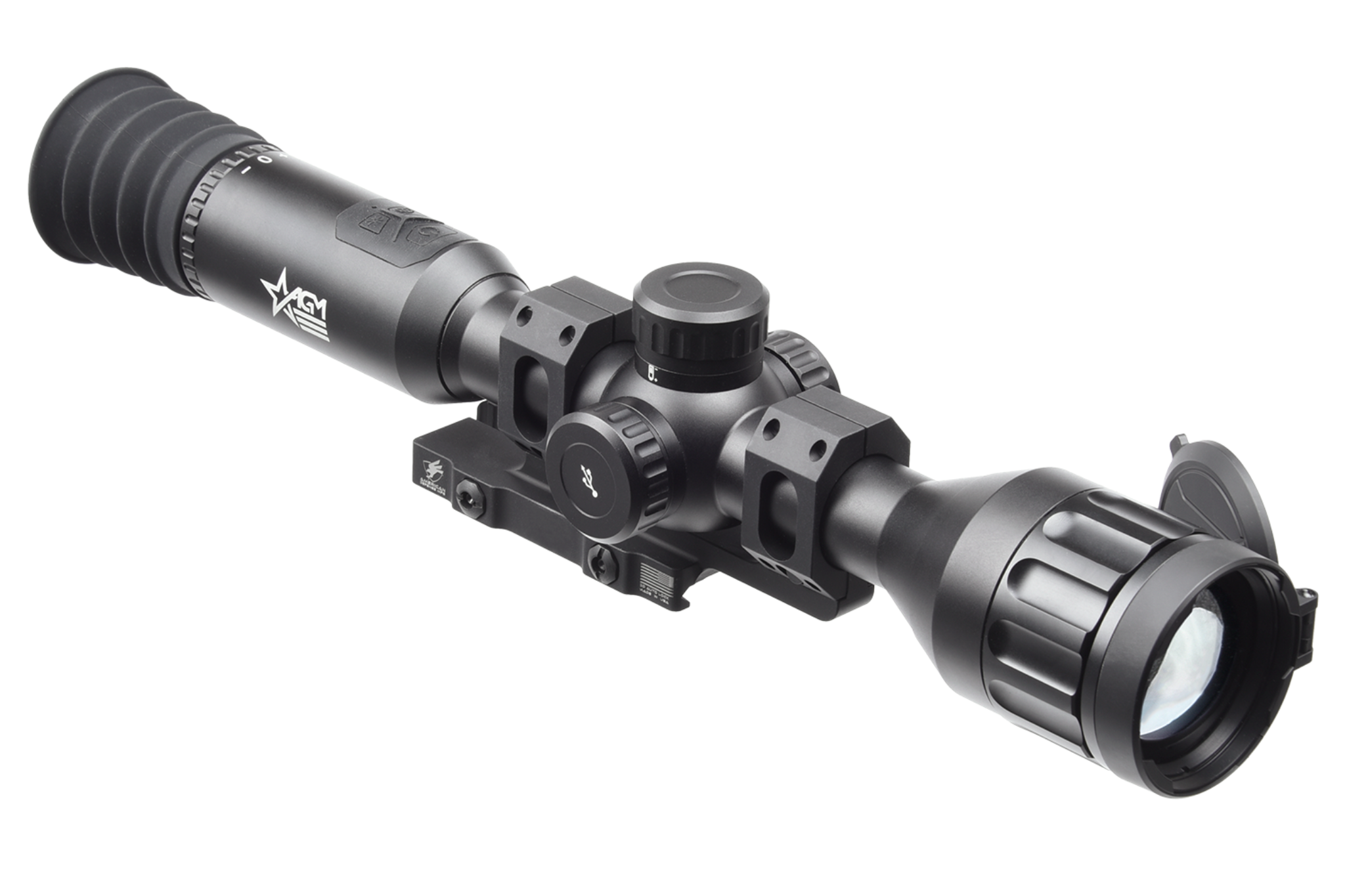

AGM Adder TS50-384

PART #3142455006DTL1

3 reviews | Write a review


Description And features


The AGM Adder Thermal Riflescopes pack all the technology and advanced electronics into the historically familiar 30mm tube riflescope housing. The Adder TS50-384 pairs a 50mm Germanium lens with an upgraded sub-35mK 384x288 thermal detector and a 1024x768 OLED display, to provide one of the best images AGM has produced to date. The combination of the 12 micron sensor with the 50mm lens also raises the base magnification of this particular model to 4X. Unlike smaller lenses with larger microns, this combination allows predator hunters to start at a higher base magnification, which eliminates the inevitable degradation of the resolution that is required for low base magnification units. Other enhancements include an astonishing 15 hours of battery life on two internal 18650 rechargeable batteries, 5 internal reticle options, and shot-activated video recording, which, when enabled, ensure that hunters forgetting to press the record button is a thing of the past!

The entire Adder product family also comes with a high-quality, one-piece, 30mm quick-detach mount from American Defense Manufacturing. These mounts allow for sliding the scope both forward and backwards to provide optimal eye relief for shooters using a wide array of different shooting platforms. Other features include, but aren’t limited to: 50 Hz refresh rate, IP67 waterproof rating, external power capability, 64GB of on-board memory, 5 different reticle options, Wi-Fi and AGM Connect app compatibility, multiple color palettes, audio recording, emergency CR123 battery power, and of course AGM’s 5 Year Transferable Warranty.

Warning: California's Proposition 65

  • 384×288 thermal resolution
  • 12μm high-sensitivity detector
  • Fast 50 Hz imaging
  • High-resolution OLED display
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video and audio recording
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Fast 64GB EMMC built-in storage
  • Various reticle types and colors
  • Adjustable color palettes
  • Standby mode
  • Waterproof & Shockproof
  • Dual power system
  • Up to 15 hours continuous working
  • External power supply capability
  • 5-Year warranty
Characteristics

Refresh rate: 50 Hz

Resolution: 384x288

FOV: 5.4° × 4.0°

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.


Specifications


Palettes
Black Hot, White Hot, Red Hot, Fusion
Reticle
5 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Boresight Increment
0.09 mil / 0.31 MOA
Distance Measurement
Yes (Stadiametric)
Scene Mode
Jungle, Recognition
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes
Defective Pixels Correction (DPC)
Yes
Uniformity Correction
Auto, Manual, External Correction
Digital Magnification
4x - 32x
Detector type
12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)
Standby Mode
Yes
Resolution
384 × 288
Detection Range (6' object)
2600 m/yd
Snapshot
Yes
Lens system
50 mm; F/1.0
Field of view (H × X)
5.4° × 4.0°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 dpt
Eye relief
≥ 60 mm
Display
1024×768, 50 Hz, OLED
Battery Type
Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery
Wi-Fi
Yes
CVBS Output
Yes (via USB)
Battery Life (Operating)
Up to 15 hr
Power supply
5 VDC/2 A, USB Type-C Supports QC3.0
Degree of Protection
IP67
Weight
970 g ( 2.14 lb)
Overall Dimensions
420 × 78 × 82 mm (16.5 × 3.1 × 3.2 in)
Magnification

Firmware update


FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

  1. Connect the thermal device to your PC with USB cable.
  2. Turn on the thermal device.
  3. Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
  4. Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
  5. Turn off the device.
  6. Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
  7. Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

Please check the latest firmware. Click the FW Version to download the firmware update package.

  • AGM ADDER TS35-384 / AGM ADDER TS50-384 THERMAL IMAGING SCOPES FIRMWARE

    Firmware Versions:

    • V5.5.53_231025

      # Support 10 reticles.

      # The small cross won’t overlay on the reticle when you choose the reticle type. It only appears when you adjust the XY value, to mark the reticle’s original position.

      # When a 5-second power-off countdown appears, pressing any buttons can cancel the power off operation. Accidental touches that trigger power off process won’t be a problem.

      # Support Auto FFC Prompt. Before the device performs auto FFC, a 5-second countdown will appear to notify users of the incoming frozen image.
