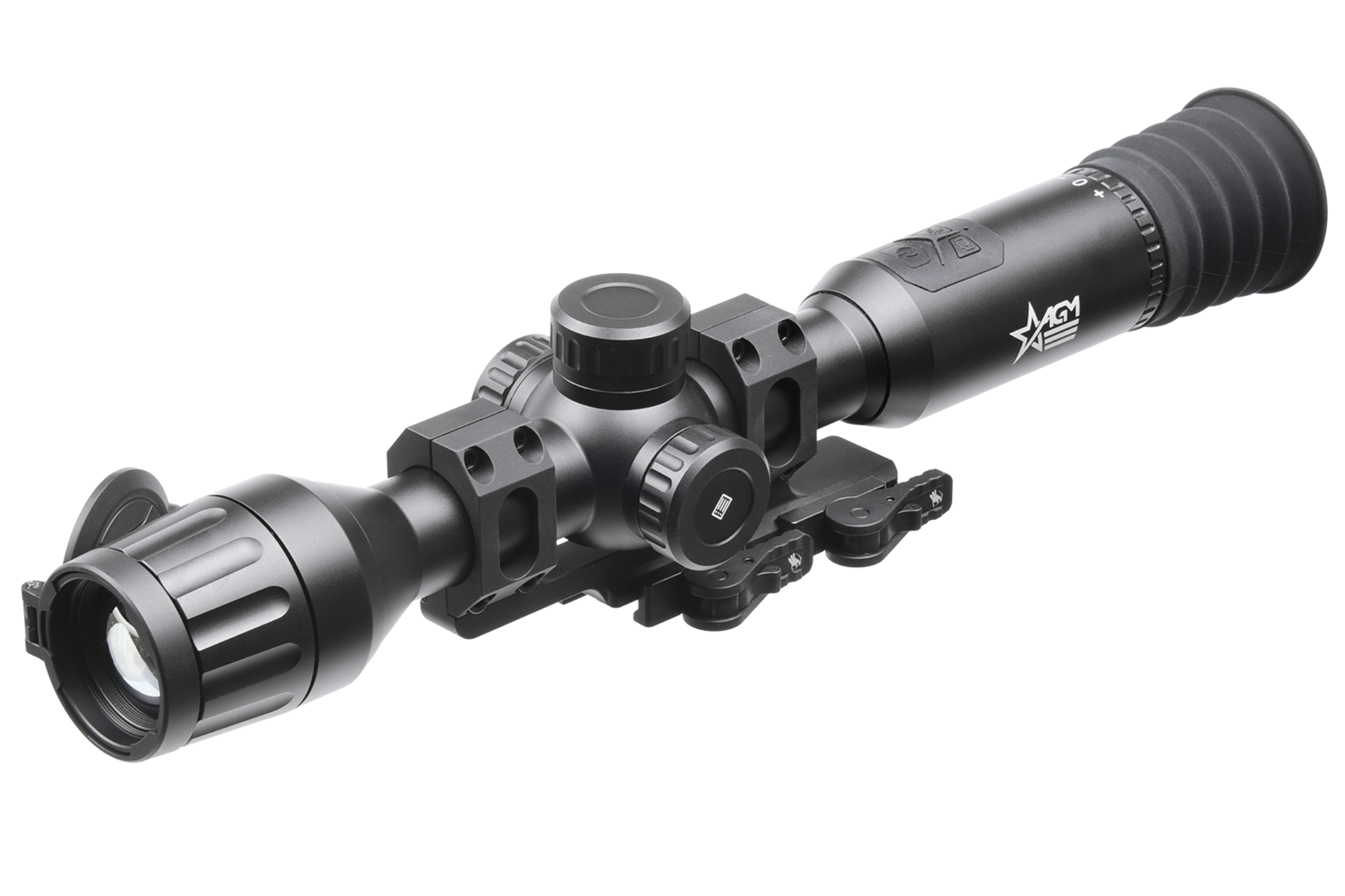

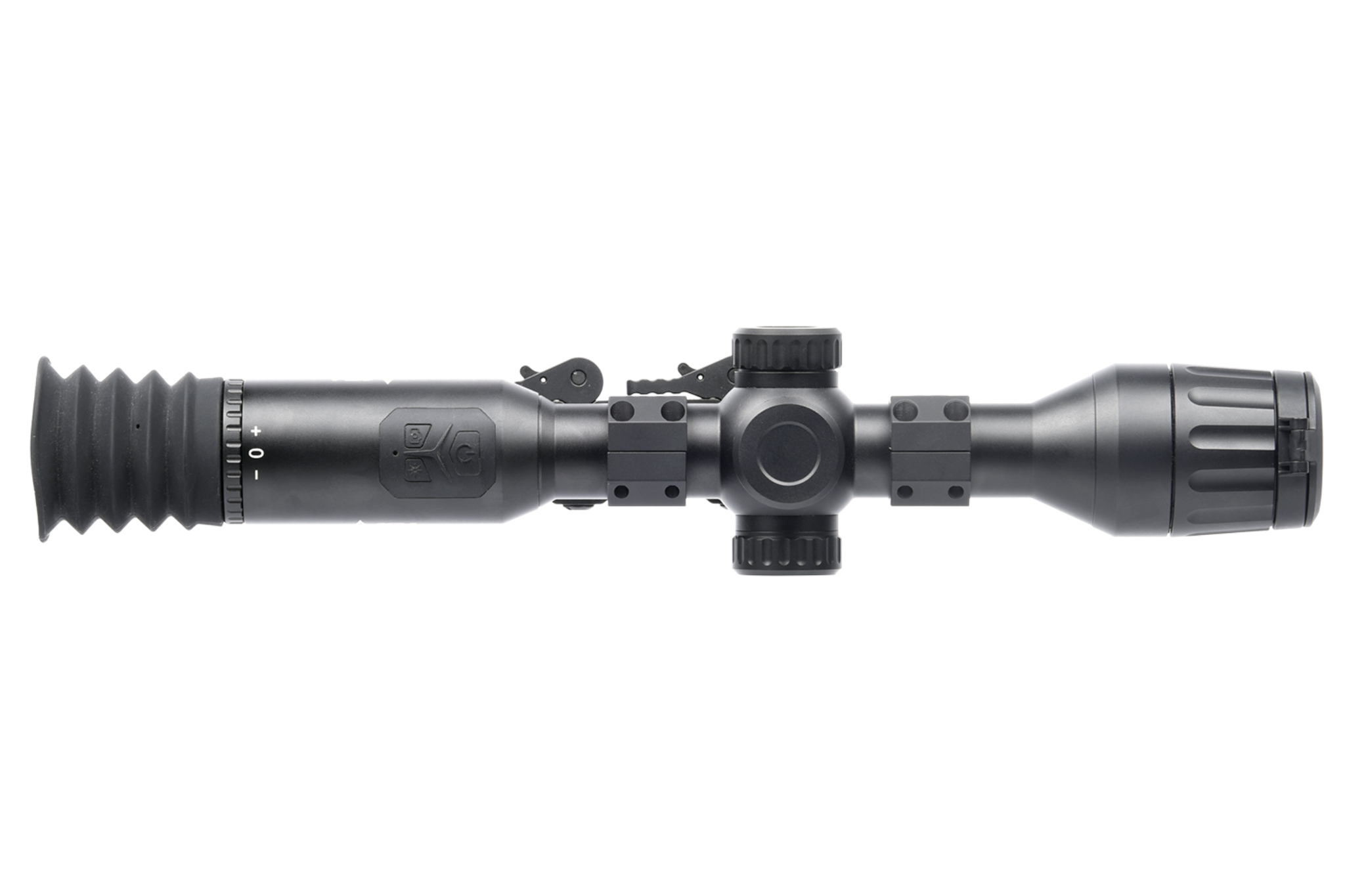

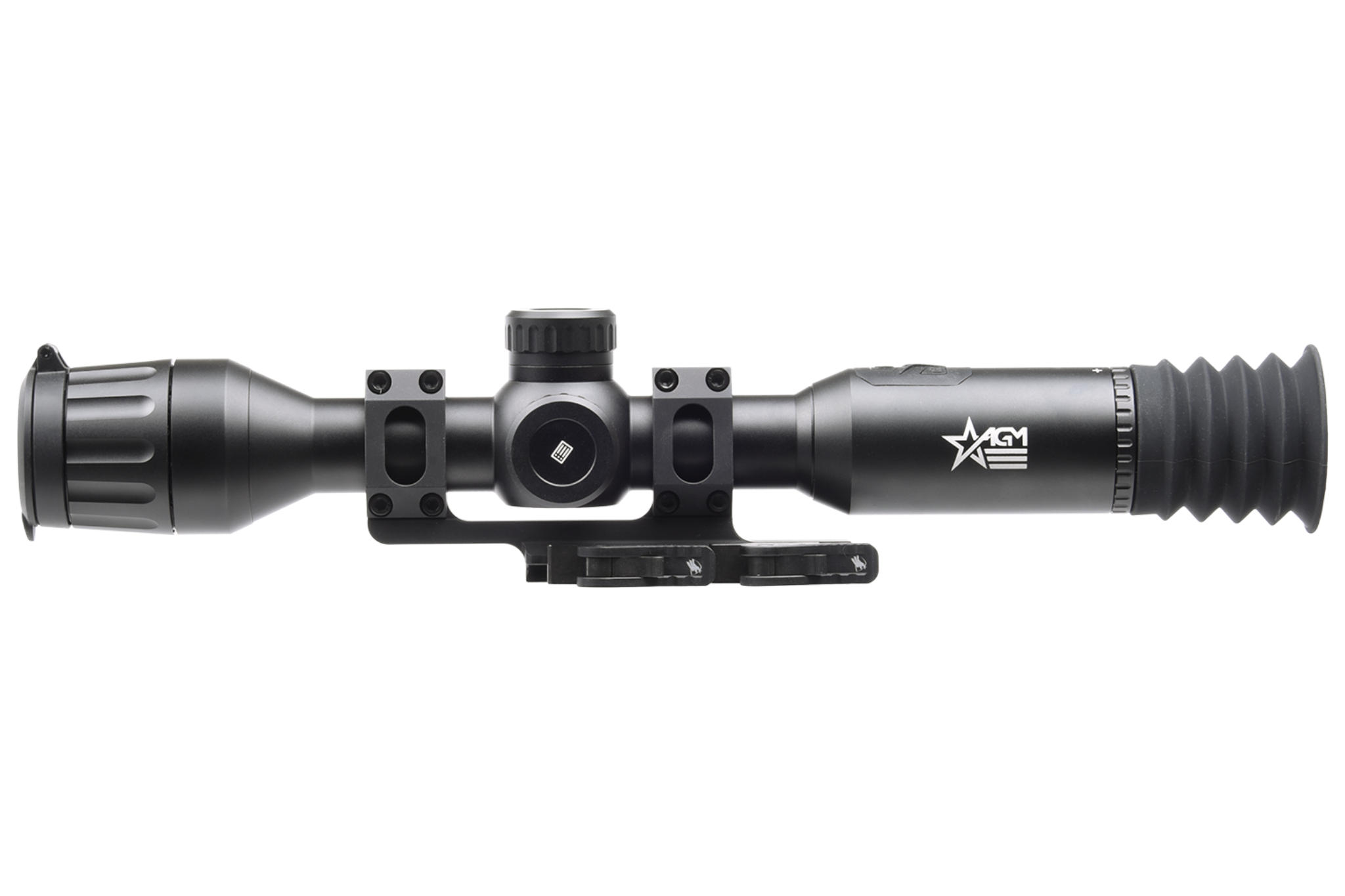

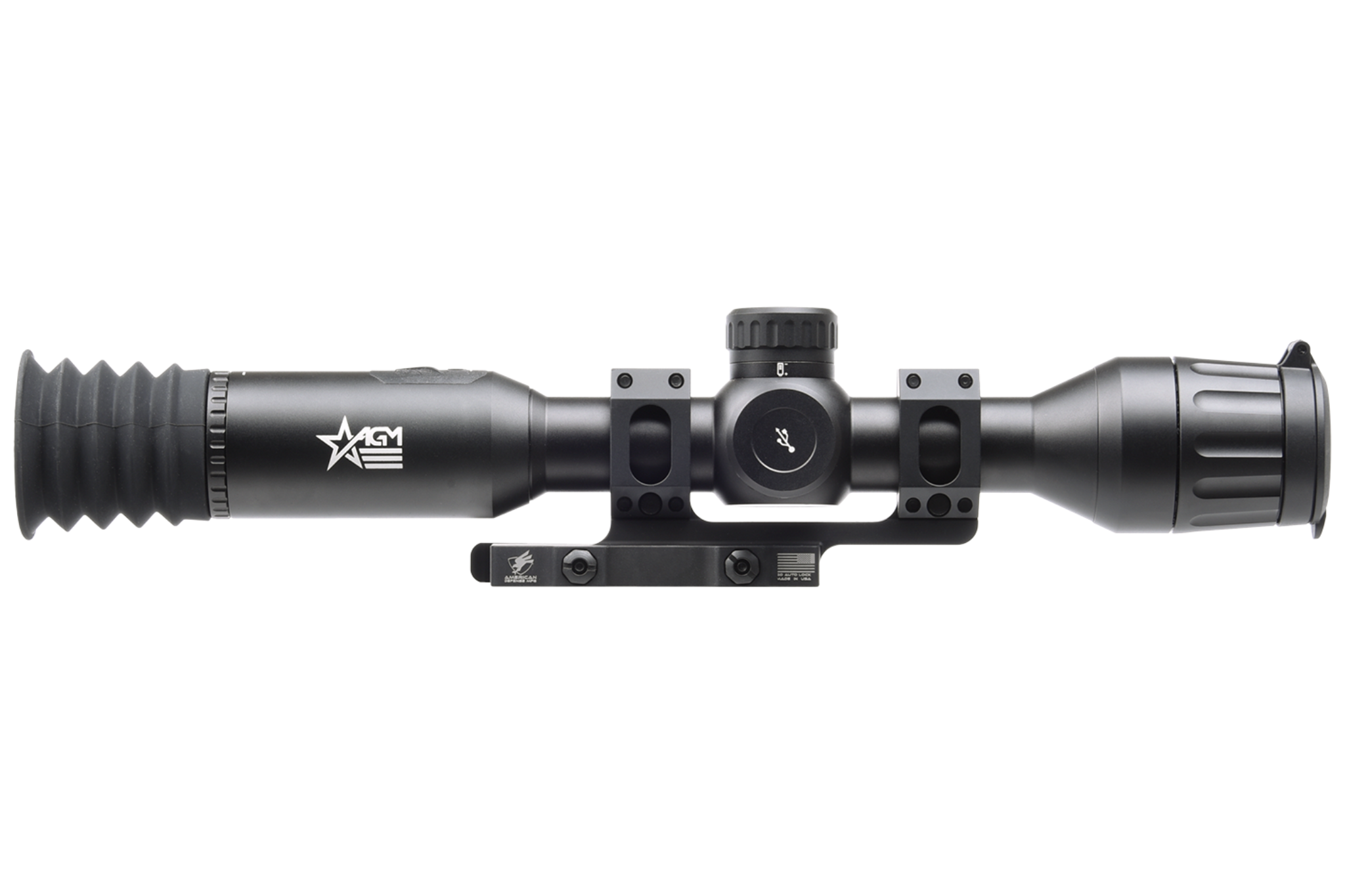

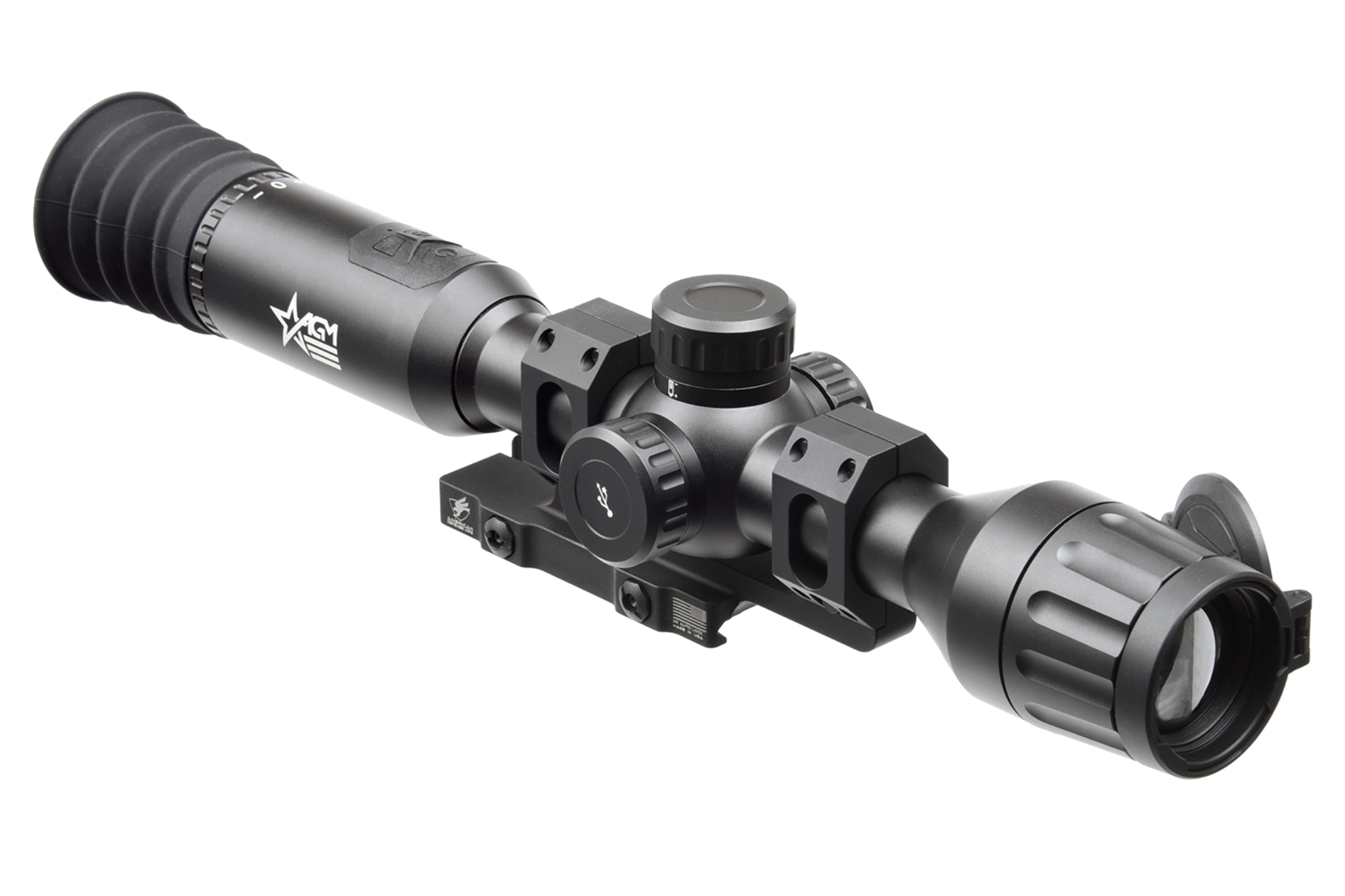

AGM Adder TS35-384

PART #3142455005DTL1

0 reviews | Write a review


Description And features


AGM Adder is the thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 35mm lens designed for medium range shooting, while the 50mm lens model will be great for long range missions.

Riflescope has 384×288 high-sensitivity thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.

The scope is equipped with unique dual power system. Two builtin 18650 rechargeable batteries with one CR123A replaceable Lithium battery provide up to 15 hours of continuous operation. The device has fast 64GB EMMC storage for on-board video recording and image capturing. Shot Activated Recording (SAR) function allows you not to worry about having to start recording manually each time. Wi-Fi module for live video streaming and video/images recording via application are also available.

The Adder can be mounted to the weapon using standard scope mounts for 30mm tubes. The traditional-style 30mm tube meets the needs of professional hunters who value traditions and seek technological superiority, ensure an extreme detection range of up to 2600 meters.


Warning: California's Proposition 65

  • 384×288 thermal resolution
  • 12μm high-sensitivity detector
  • Fast 50 Hz imaging
  • High-resolution OLED display
  • 1x, 2x, 4x, 8x digital zoom
  • On-board video and audio recording
  • Shot Activated Recording (SAR)
  • Wi-Fi data transmission
  • Fast 64GB EMMC built-in storage
  • Various reticle types and colors
  • Adjustable color palettes
  • Standby mode
  • Waterproof & Shockproof
  • Dual power system
  • Up to 15 hours continuous working
  • External power supply capability
  • Limited 3-year warranty

Characteristics

Refresh rate: 50 Hz

Resolution: 384x288

FOV: 7.5° × 5.6°



Downloads
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.


Specifications


Palettes

Black Hot, White Hot, Red Hot, Fusion

Reticle

5 types, 4 colors, on/off

Boresight Adjustment

Digital Controlled

Boresight Increment

0.13 mil / 0.44 MOA

Distance Measurement

Yes (Stadiametric)

Scene Mode

Jungle, Recognition

Picture In Picture Mode (PIP)

Yes

Video Recording

Yes

Defective Pixels Correction (DPC)

Yes

Uniformity Correction

Auto, Manual, External Correction

Detector type

12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)

Standby Mode

Yes

Resolution

384 × 288

Detection Range

1800 m/yd

Snapshot

Yes

Lens system

35 mm; F/1.0

Optical magnification

3× - 24×

Field of view (H × X)

7.5° × 5.6°

Digital zoom

1×, 2×, 4×, 8×

Diopter adjustment range

-5 to +5 dpt

Eye relief

≥ 60 mm

Display

1024×768, 50 Hz, OLED

Storage

64 GB EMMC

Battery Type

Two 18650 Rechargeable Batteries (built-in) and one CR123 Battery

Wi-Fi

Yes

CVBS Output

Yes (via USB)

Battery Life (Operating)

Up to 15 hr

Power supply

5 VDC/2 A, USB Type-C Supports QC3.0

Operating Temperature Range

-30°C to +55°C (-22°F to +131°F)

Degree of Protection

IP67

Weight

890 g ( 1.96 lb)

Overall Dimensions

407 × 78× 76 mm (16.0 × 3.1 × 3.0 in)
